Liftgate Latch Striker Replacement

Courtesy of GENERAL MOTORS COMPANY

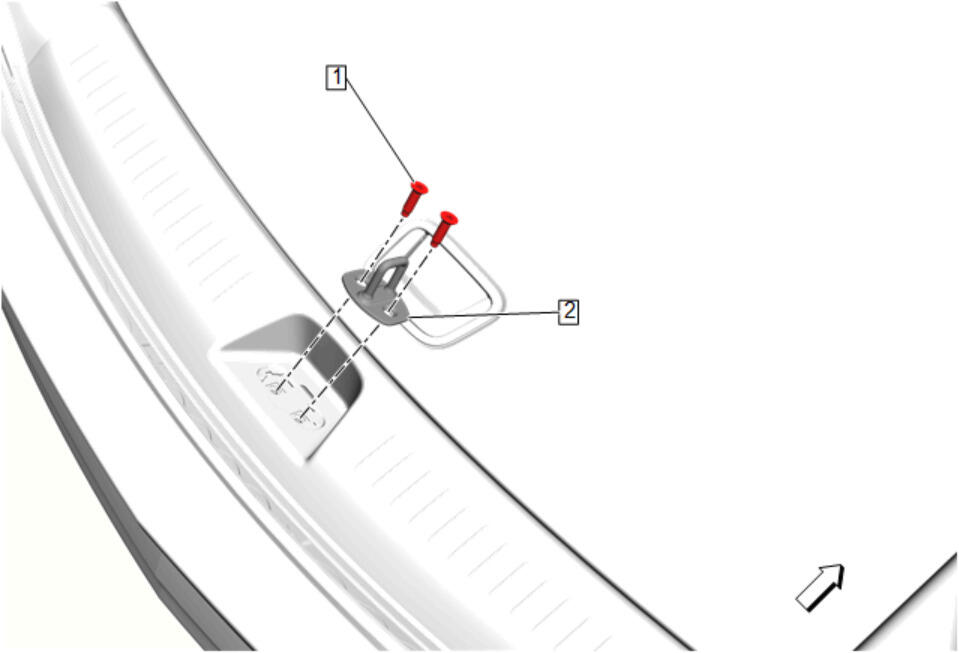

Callout	Component Name
Preliminary Procedures Liftgate Lock Striker Cover Replacement Mark the location of the striker with a grease pencil to ensure proper alignment during installation.
1	Liftgate Latch Striker Bolt [ 2x ] CAUTION: Refer to Fastener Caution . Tighten 22 N.m (16 lb ft)
2	Liftgate Latch Striker

Callout

Component Name

Preliminary Procedures

Liftgate Lock Striker Cover Replacement
Mark the location of the striker with a grease pencil to ensure proper alignment during installation.

Liftgate Latch Striker Bolt [ 2x ]

CAUTION:

Tighten
22 N.m (16 lb ft)

Liftgate Latch Striker
