Installation Procedure

  1. GM4206001Courtesy of GENERAL MOTORS COMPANY

    Front Side Door Outside Handle Cable (1) - Install

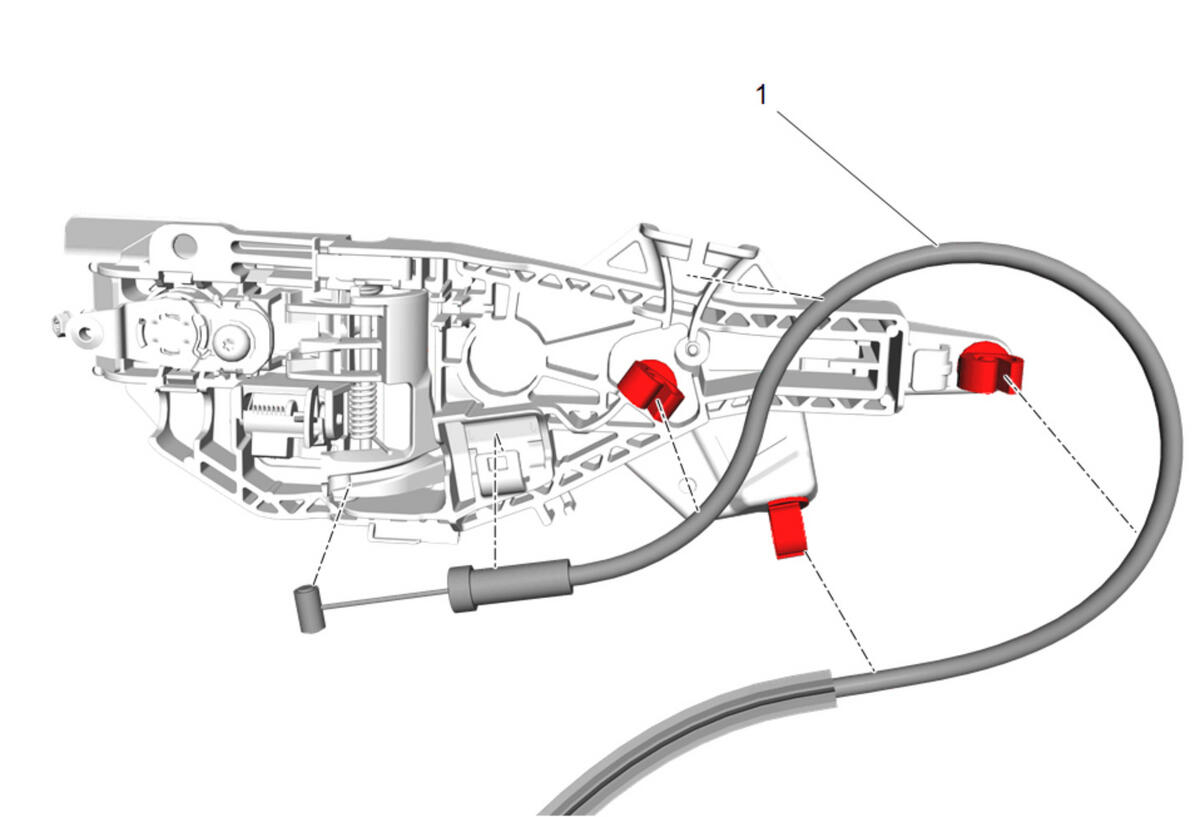

  2. GM5208045Courtesy of GENERAL MOTORS COMPANY

    Install the front side door outside handle cable (1) into the front side door outside bracket retainers and counter balance.

  3. GM5206488Courtesy of GENERAL MOTORS COMPANY

    Front Side Door Latch (2) - Install - Front Side Door Latch Replacement

  4. Inspect the door latch and outside handle for proper operation before installing the door trim.
