Chassis Control Module Replacement

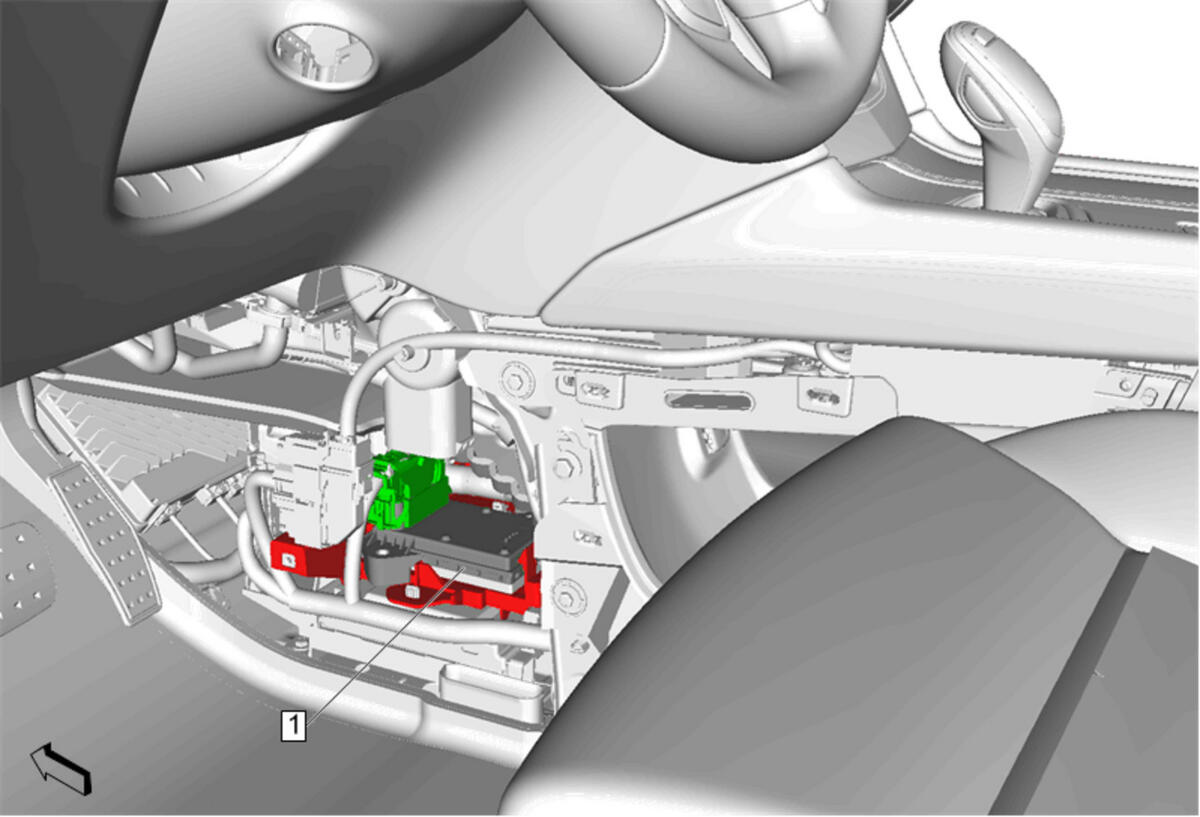

GM4284953
Callout Component Name

Preliminary Procedures

  1. Front Floor Console Extension Panel Replacement - Left Side
  2. Floor Rear Air Outlet Duct Replacement - Left Side
1 Chassis Control Module

Procedure

  1. Disconnect the electrical connector.
  2. Remove the module from the module bracket by releasing the retaining tabs.
  3. If replacing, reprogram the module. Control Module References
