Front Seat Belt Buckle Replacement

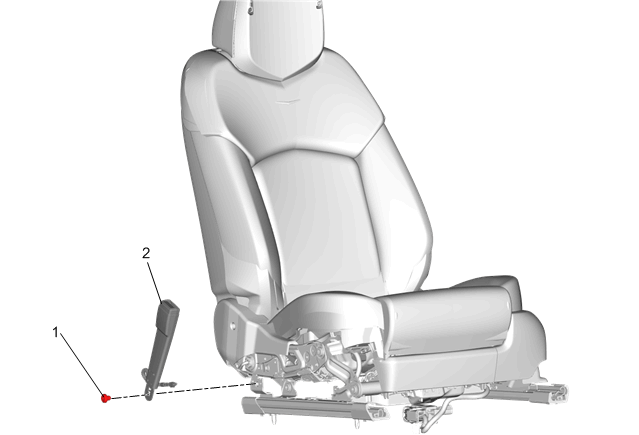

Callout	Component Name
Preliminary Procedure Driver or Passenger Seat Removal and Installation
1	Front Seat Belt Buckle Fastener CAUTION: Refer to Fastener Caution . Tighten 40 N.m (30 lb ft)
2	Front Seat Belt Buckle Procedure Disconnect the electrical connector. Release the retainers.

Callout

Component Name

Front Seat Belt Buckle Fastener

CAUTION:

Tighten
40 N.m (30 lb ft)

Front Seat Belt Buckle

Procedure
