Front Side Door Window Regulator Replacement

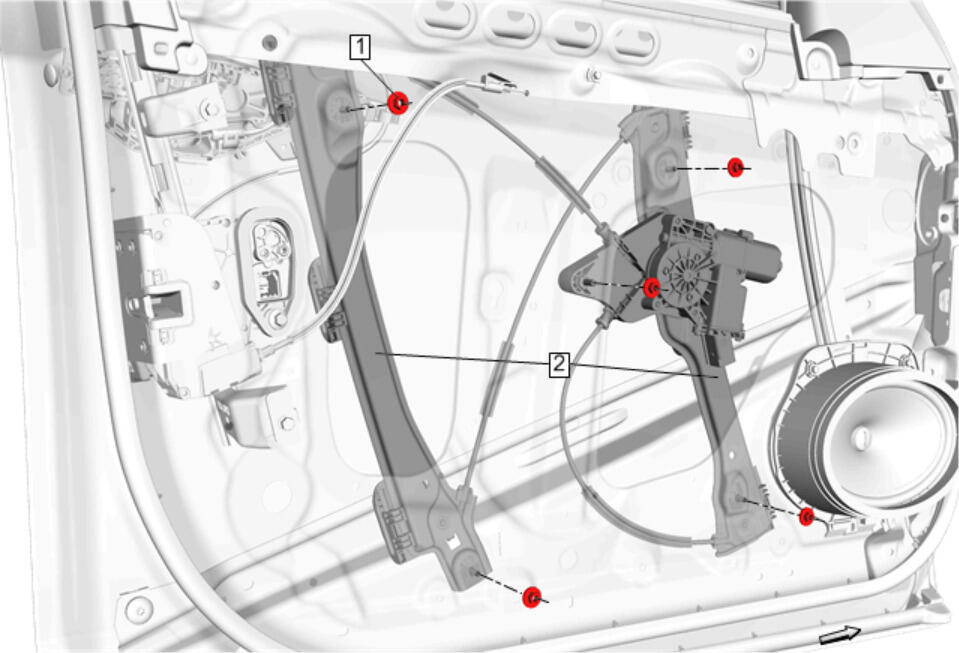

Callout	Component Name
WARNING: Disconnect the power window switch when working inside the door. When operated, the Express Up/Down Feature allows the door window to move very quickly, without stopping, which could cause personal injury. Preliminary Procedures Place the front side door window in the full up position. Front Side Door Trim Replacement Front Side Door Water Deflector Tape the window to the upper door frame before releasing the window from the window retainers.
1	Front Side Door Window Regulator Nut [5x] CAUTION: Refer to Fastener Caution . Tighten 11 N.m (97 lb in)
2	Front Side Door Window Regulator Procedure Disconnect the electrical connector. Transfer all parts as necessary. NOTE: Inspect the window for proper operation before installing the door trim.

Callout

Component Name

WARNING:

Disconnect the power window switch when working inside the door. When operated, the Express Up/Down Feature allows the door window to move very quickly, without stopping, which could cause personal injury.

Preliminary Procedures

Place the front side door window in the full up position.
Front Side Door Trim Replacement
Front Side Door Water Deflector
Tape the window to the upper door frame before releasing the window from the window retainers.

Front Side Door Window Regulator Nut [5x]

CAUTION:

Refer to Fastener Caution .

Tighten
11 N.m (97 lb in)

Front Side Door Window Regulator

Procedure

Disconnect the electrical connector.
Transfer all parts as necessary.

NOTE:

Inspect the window for proper operation before installing the door trim.
