Liftgate Close Switch Replacement
Liftgate Close Switch Replacement
Courtesy of GENERAL MOTORS COMPANY

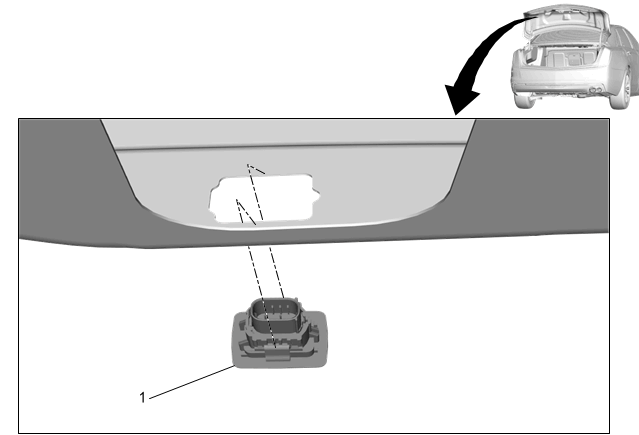

Callout
Component Name
1
Liftgate Close Switch
Procedure
Disconnect the electrical connector.
Use suitable tool to carefully release the switch retainers by applying outwards pressure.
