Low Frequency Rear Compartment Antenna Replacement

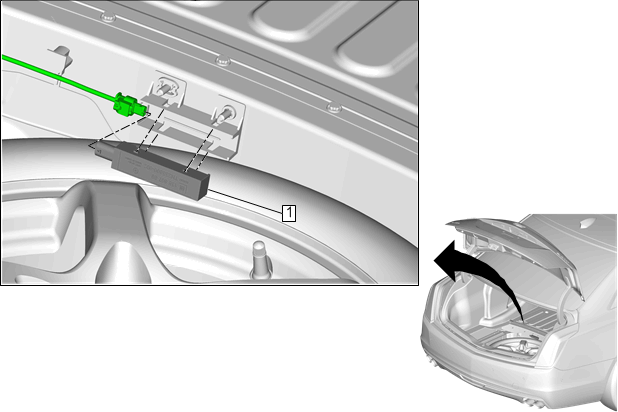

GM4248125Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Rear Compartment Floor Panel Trim Replacement (Without HP9)Rear Compartment Floor Panel Trim Replacement (With HP9)
1 Low Frequency Rear Compartment Antenna

Procedure

  1. Pull back on the rear compartment floor stowage compartment cover.
  2. Disconnect the electrical connector.
  3. Release the retaining tabs.
