Installation Procedure

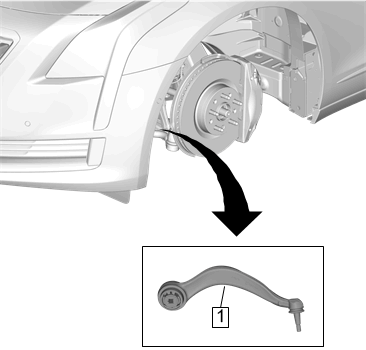

Position the front lower control front link (1) on the vehicle.

Fig 1: Front Lower Control Front Link
Courtesy of GENERAL MOTORS COMPANY

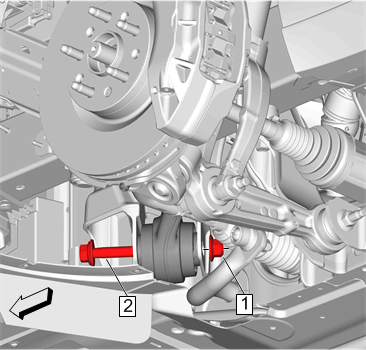

Front Lower Control Front Link Bolt (2)» Install

Fig 2: Front Lower Control Front Link Bolt
Courtesy of GENERAL MOTORS COMPANY

CAUTION: This vehicle is equipped with torque-to-yield or single use fasteners. Install a NEW torque-to-yield or single use fastener when installing this component. Failure to replace the torque-to-yield or single use fastener could cause damage to the vehicle or component.

Install a NEW bolt.
Front Lower Control Front Link Nut (1)» Install
Front Lower Control Front Link Bolt (2)» Tighten
CAUTION: Refer to Fastener Caution .

Tighten
1. First Pass: 240 N.m (177 lb ft)
2. Final Pass: (45-60 degrees)

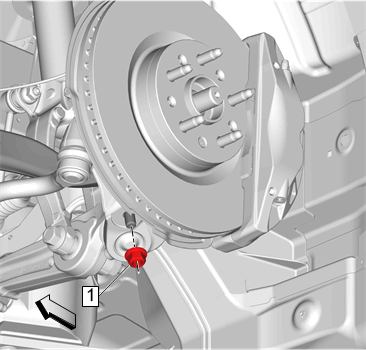

Steering Knuckle Nut (1)» Install and tighten

Fig 3: Steering Knuckle Nut
Courtesy of GENERAL MOTORS COMPANY

Tighten
1. First Pass: 40 N.m (30 lb ft)
2. Final Pass: (120-135 degrees)

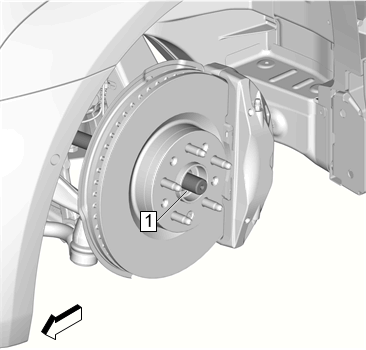

Front Wheel Drive Shaft (1) @ Front Wheel Bearing and Hub Assembly» Install - Front Wheel Drive Shaft Replacement - Left Side or Front Wheel Drive Shaft Replacement - Right Side

Fig 4: Front Wheel Drive Shaft
Courtesy of GENERAL MOTORS COMPANY
Front Wheelhouse Liner (1)» Install - Front Wheelhouse Liner Replacement

Fig 5: Front Wheelhouse Liner
Courtesy of GENERAL MOTORS COMPANY
Install the front tire and wheel assembly. Refer to Tire and Wheel Removal and Installation
Measure and adjust the wheel alignment. Refer to Wheel Alignment Measurement
