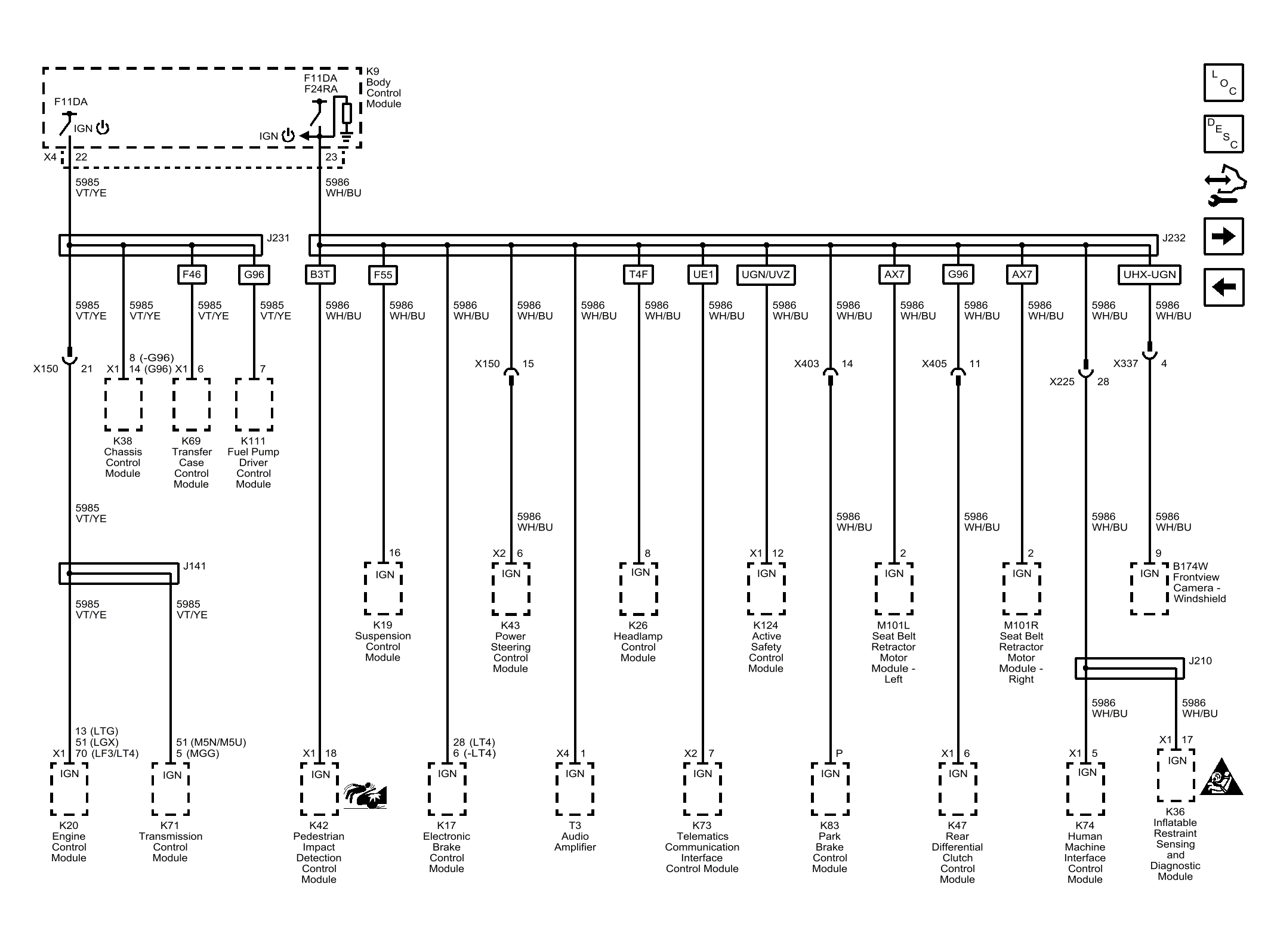

Home >> Cadillac >> 2016 >> CTS Base, RWD >> Repair and Diagnosis >> Engine Performance >> System >> Data Communication System >> Schematic Wiring Diagrams >> Data Communication Wiring Schematics >> GMLAN Communications Enable
