Communication and Enable Wake-up Circuits

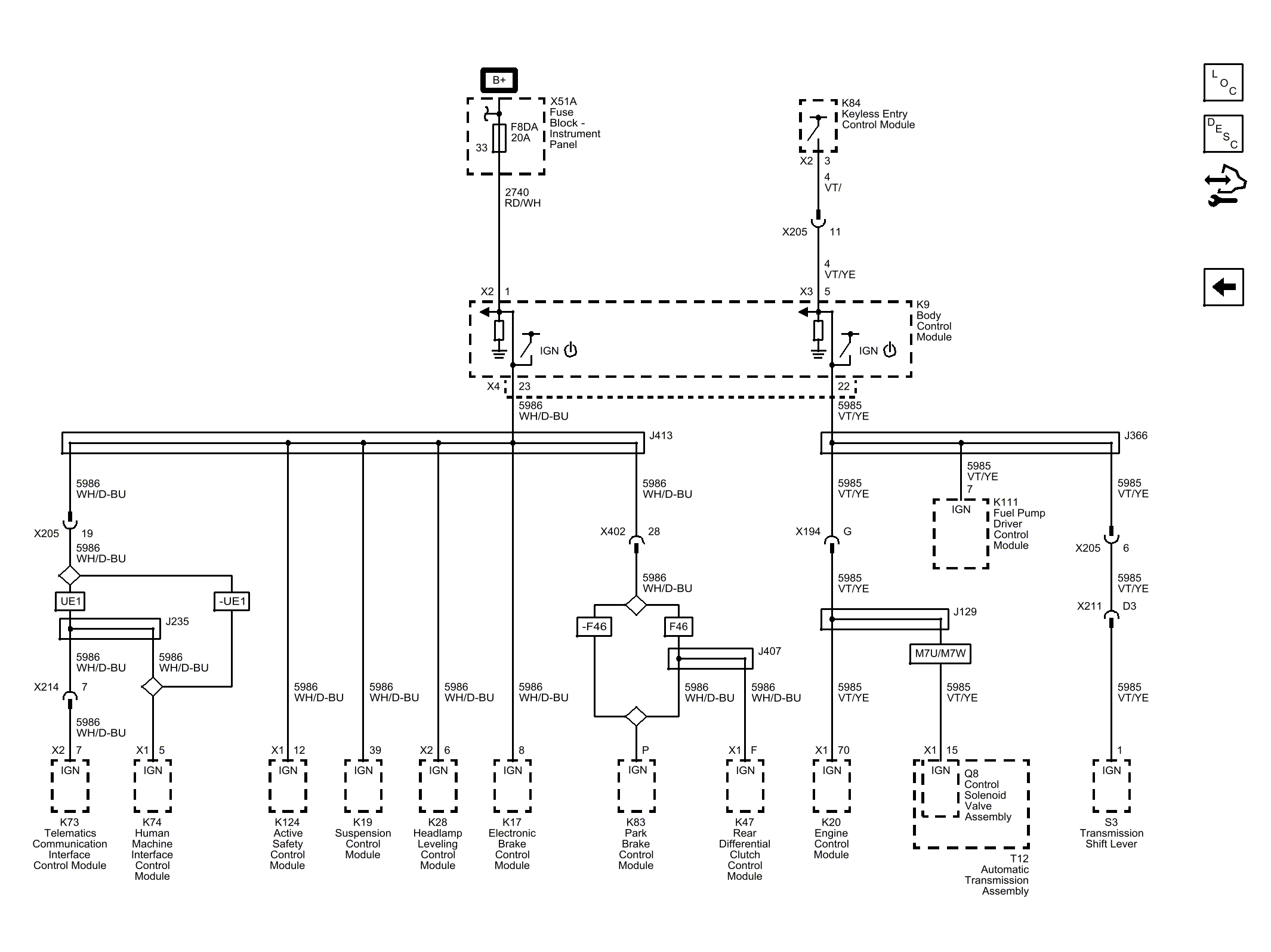

Fig 1: Communication and Enable Wake-up Circuits Wiring Schematic

GM3412784

Courtesy of GENERAL MOTORS COMPANY
