Home >> Cadillac >> 2013 >> XTS FWD V6-3.6L >> Repair and Diagnosis >> Accessories and Optional Equipment >> Central Control Module >> Locations >> Telematics Communication Interface Control Module Battery (UE1)

Telematics Communication Interface Control Module Battery (UE1)

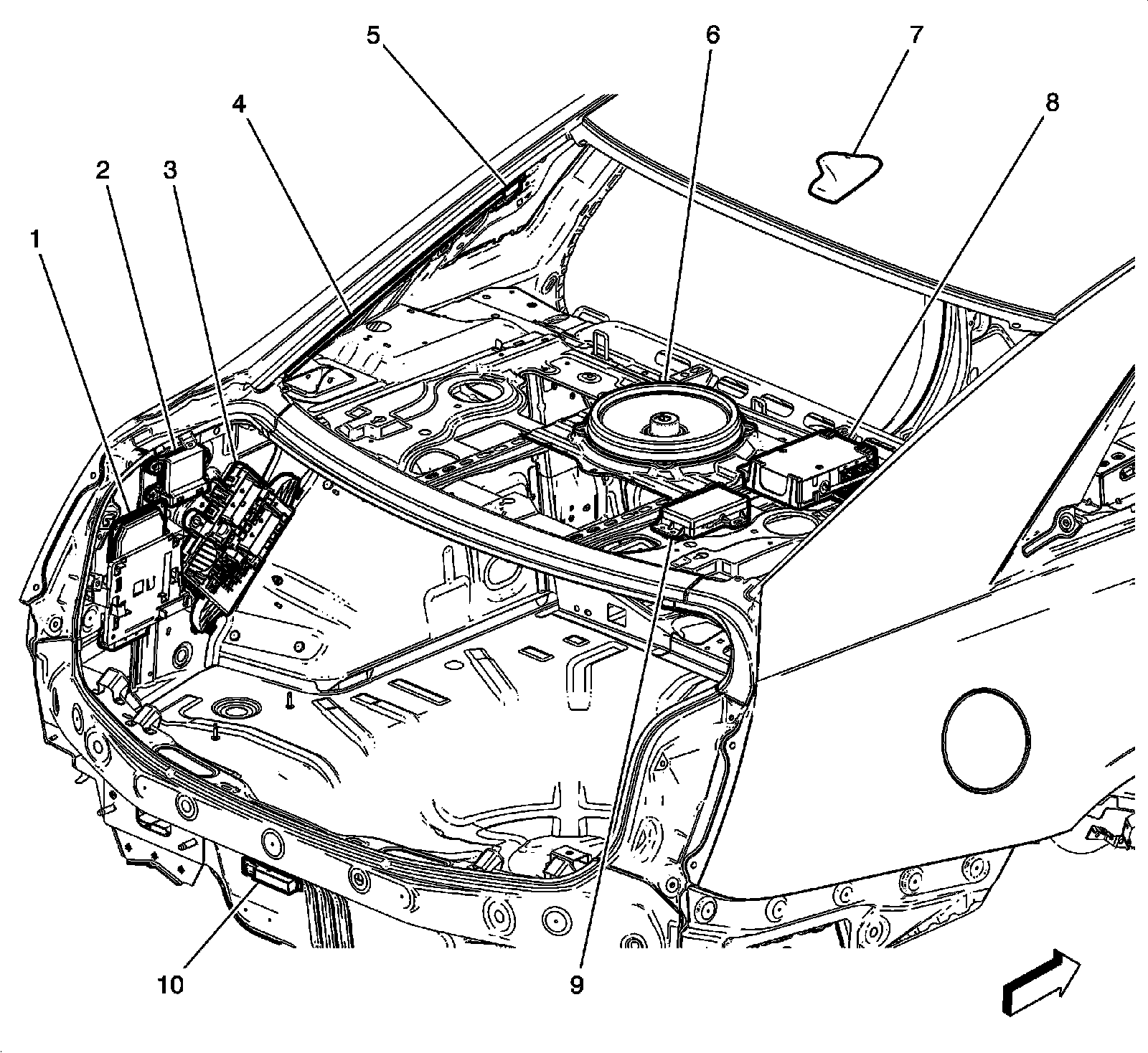

Luggage Compartment/Rear of Vehicle Component Views

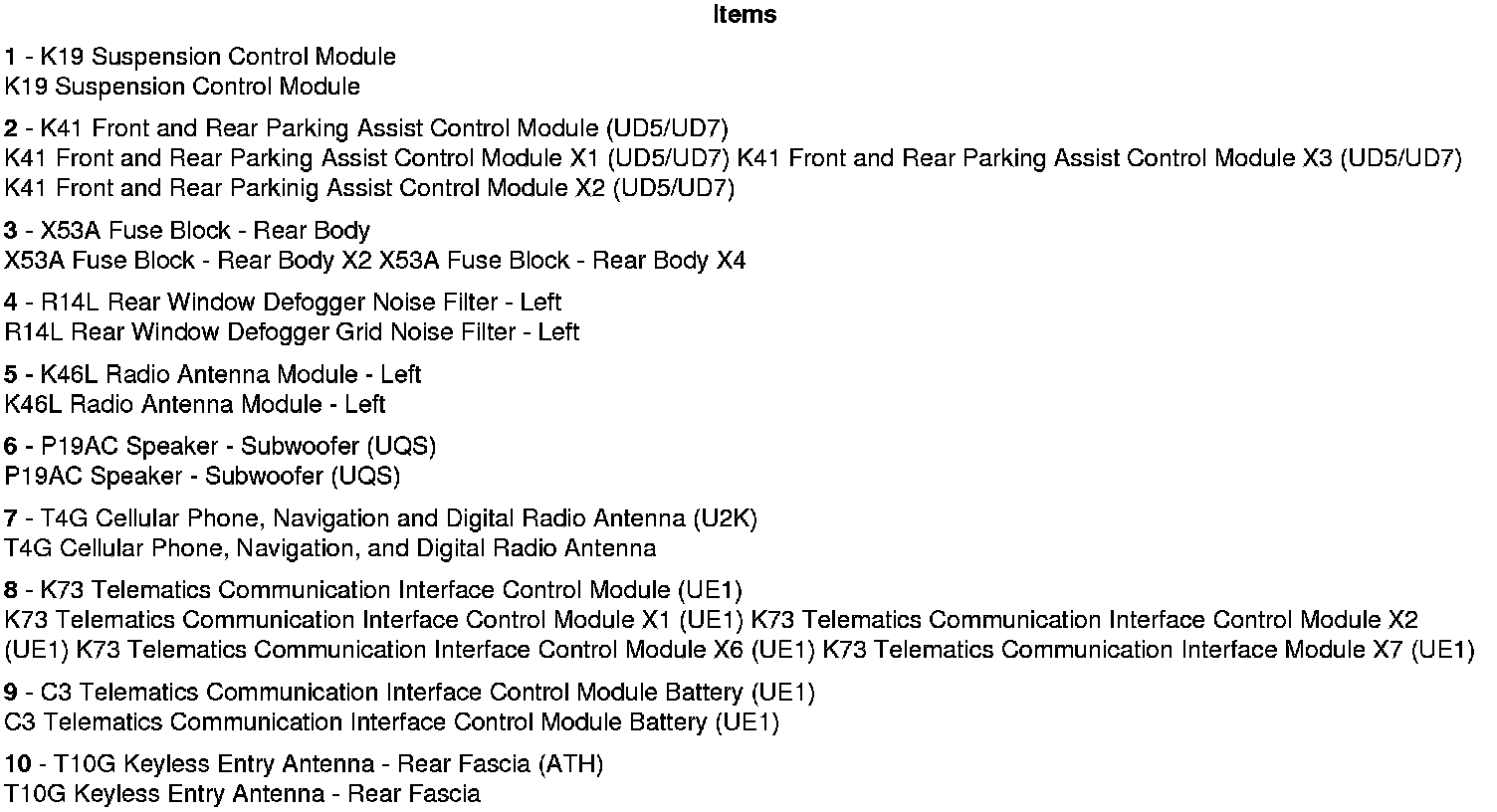

Luggage Compartment/Rear of Vehicle Components (2 of 3)
