Fuse Block - Instrument Panel Bottom View Fuses





Electrical Center Identification Views

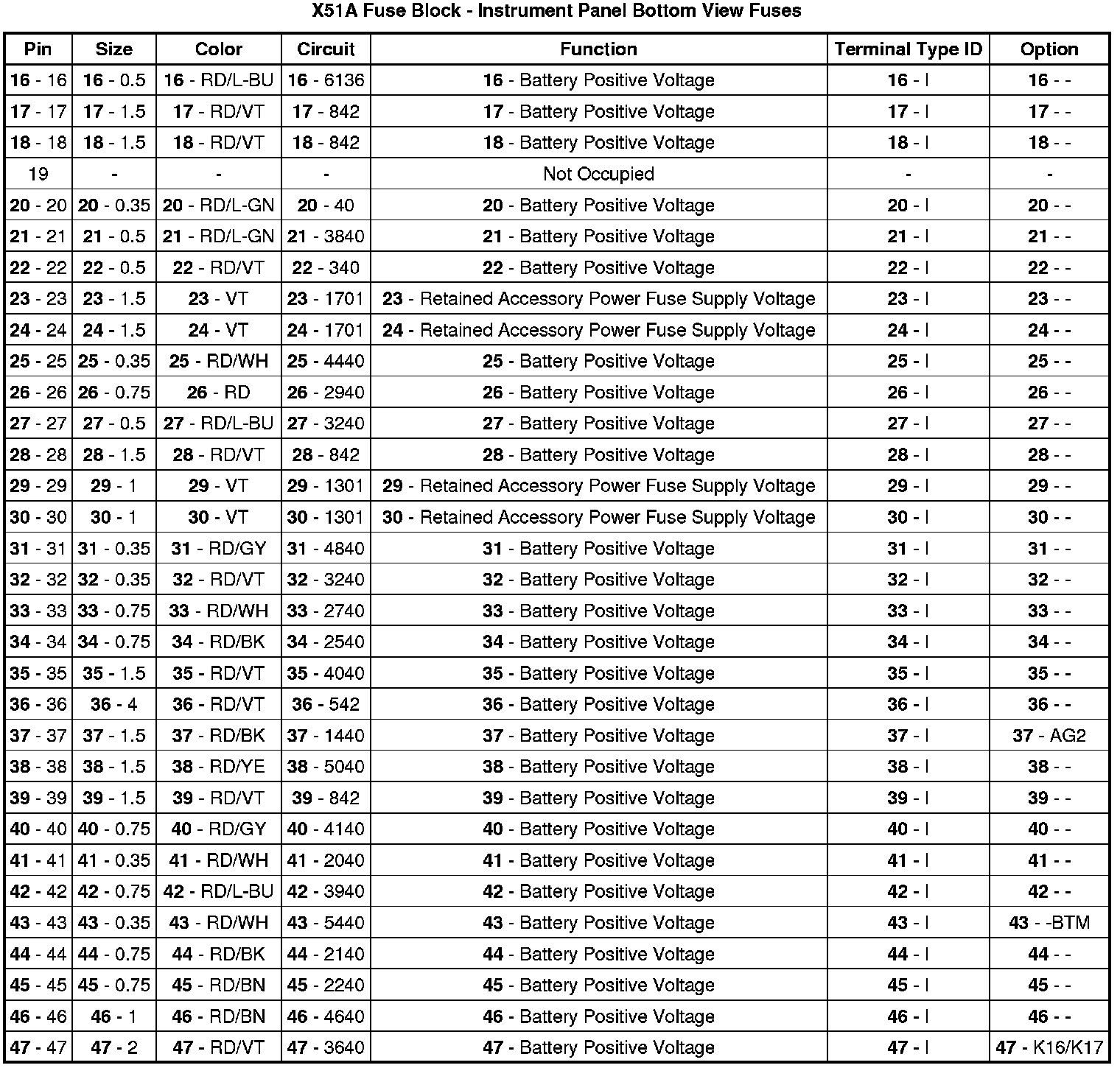

X51A Fuse Block - Instrument Panel Bottom View Fuses
