Human Machine Interface Control Module X1




Component Connector End Views

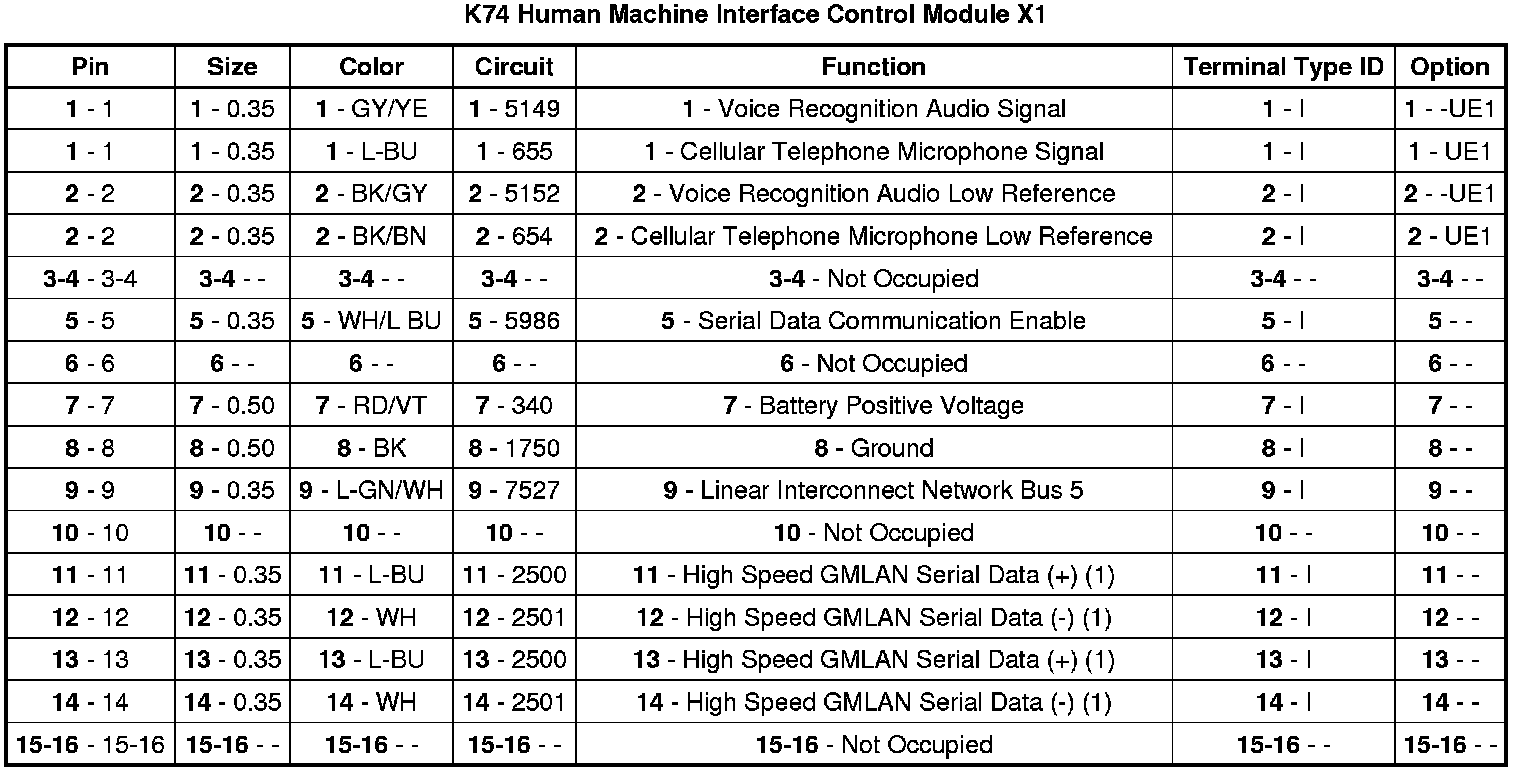

K74 Human Machine Interface Control Module X1
