Home >> Cadillac >> 2013 >> XTS AWD V6-3.6L >> Repair and Diagnosis >> Brakes and Traction Control >> Parking Brake System >> Parking Brake Control Module >> Locations

Parking Brake Control Module: Locations

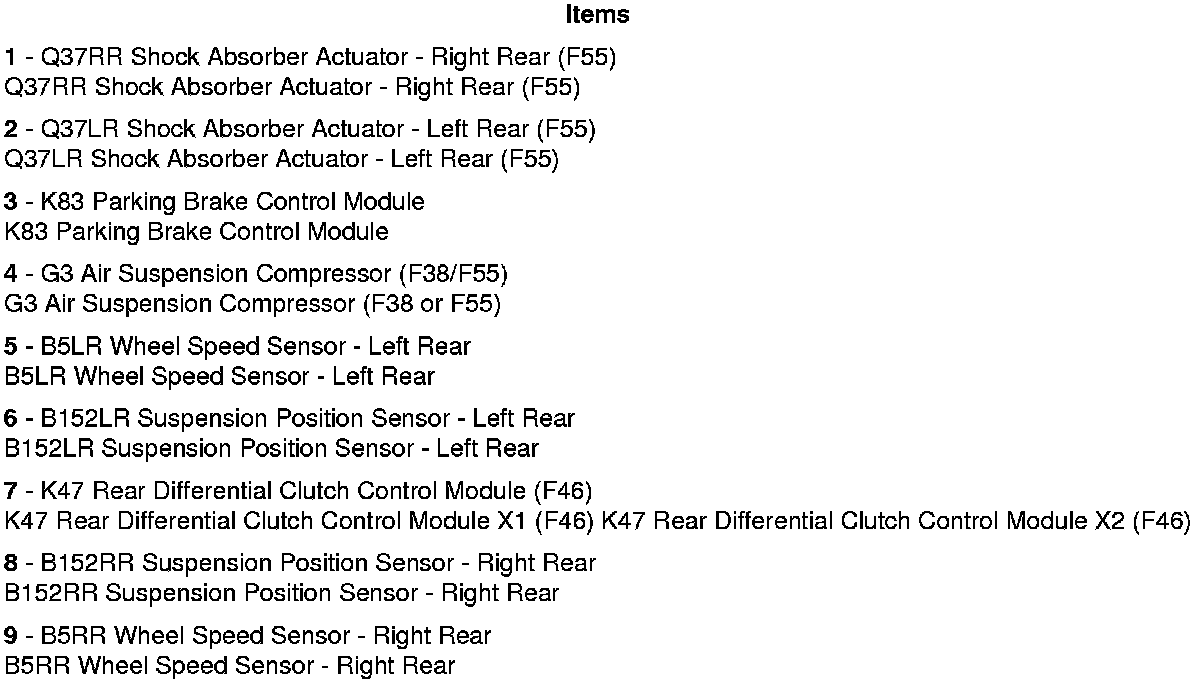

Wheels/Vehicle Underbody Component Views

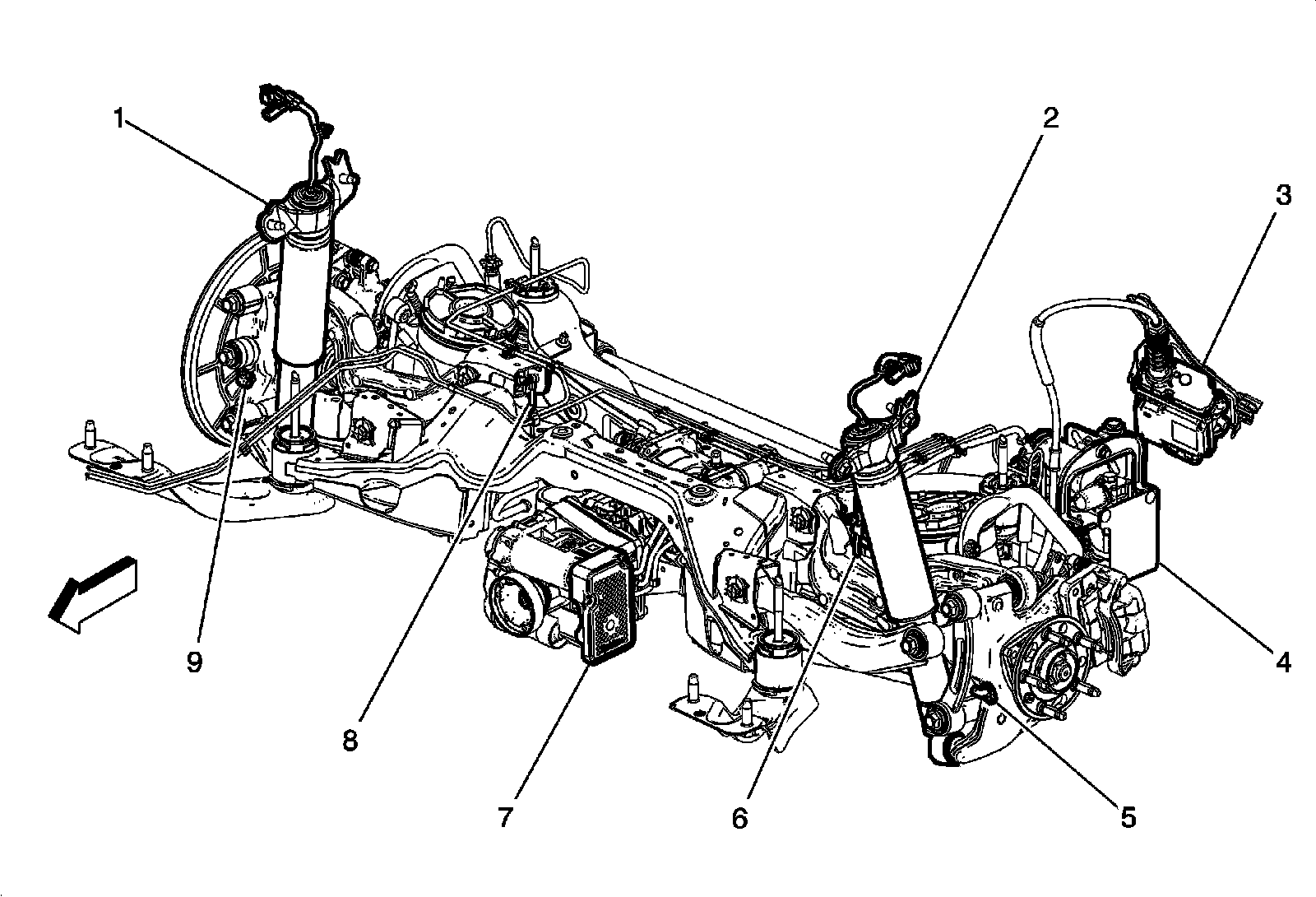

Wheel/Rear Suspension Components (-BQ9/V4U)
