Headlamp
>>
Headlamp Control Module
Headlamp Control Module
Component Connector End Views

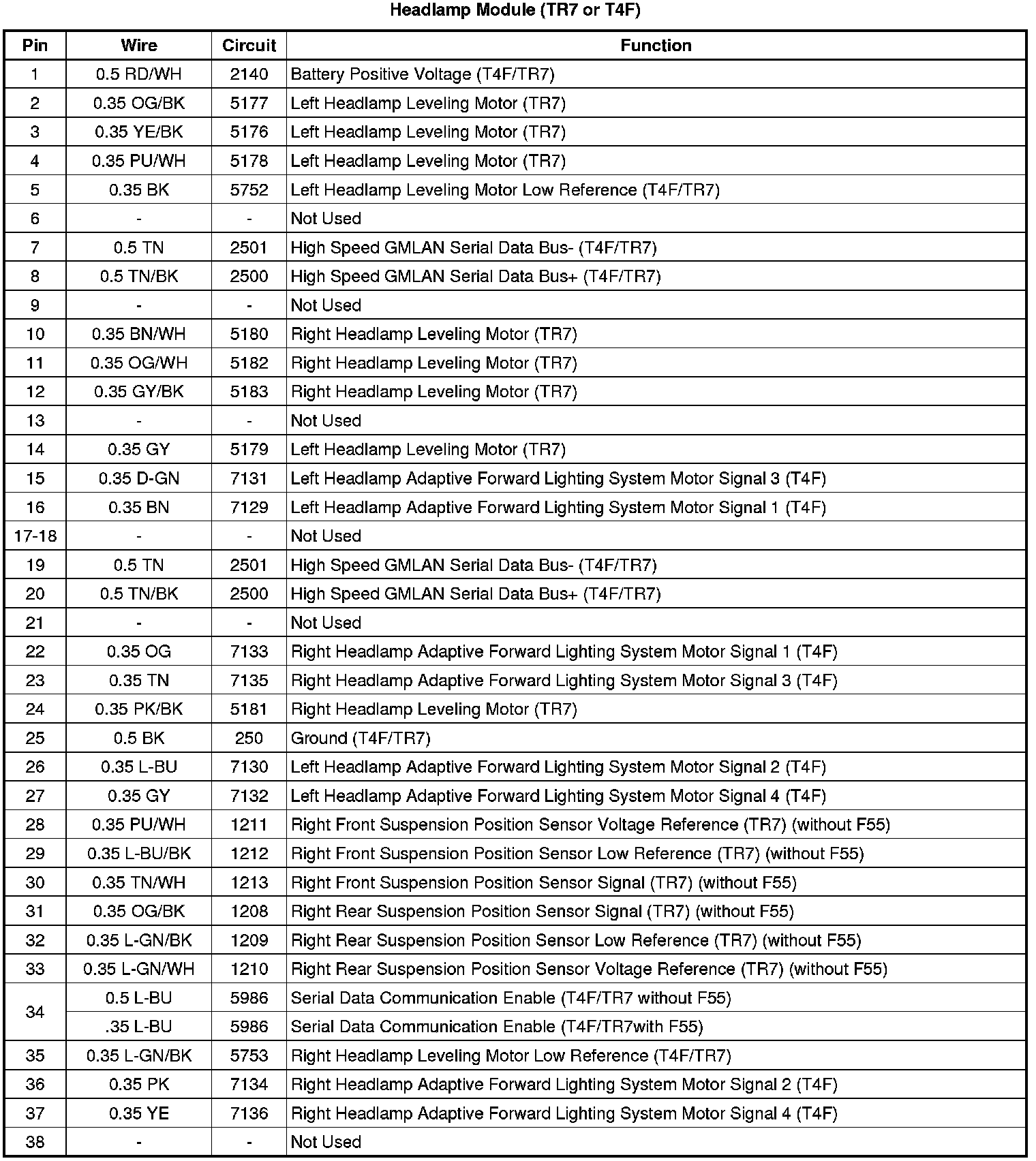

Headlamp Module (TR7 or T4F)
