Fuel Pump Control Unit
Fuel Pump Control Unit

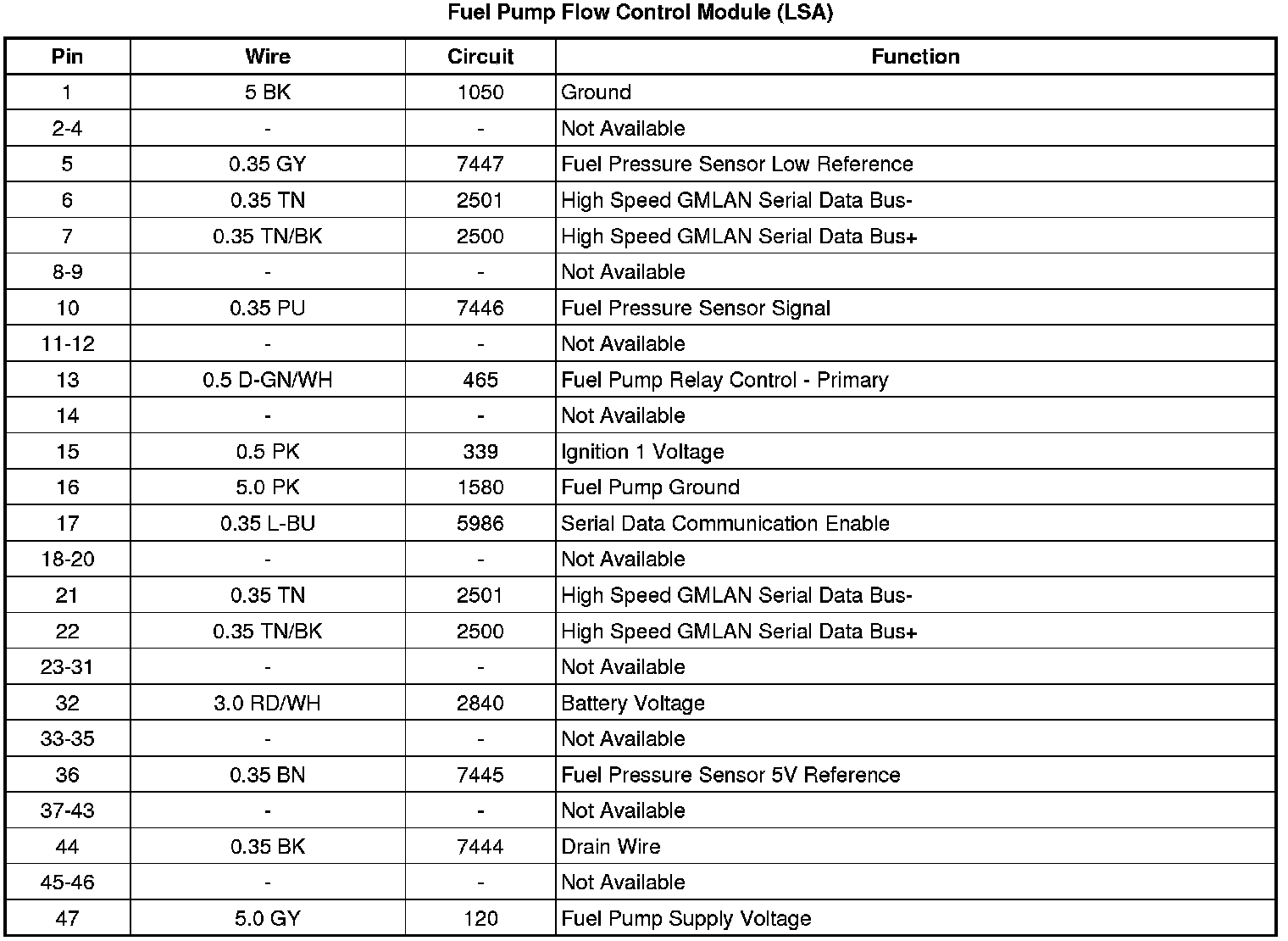

Component Connector End Views
Fuel Pump Flow
Control Module
(LSA)
