Cadillac
>>
2013
>>
CTS Sedan RWD V8-6.2L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Electronic Brake Control Module
>>
Electronic Brake Control Module (EBCM) (without MX7)
Electronic Brake Control Module (EBCM) (without MX7)

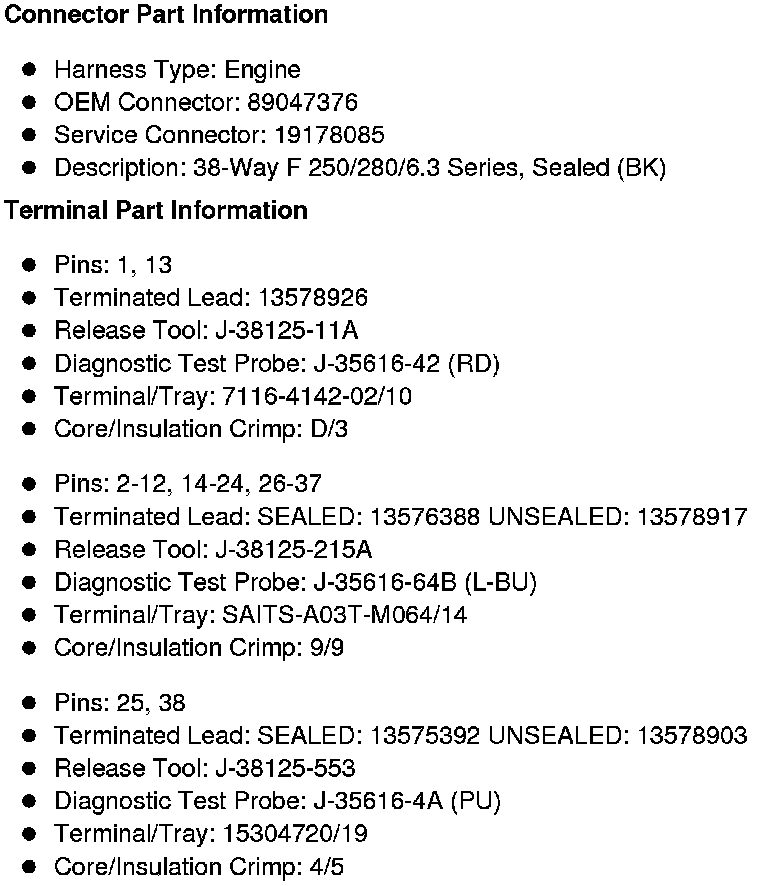

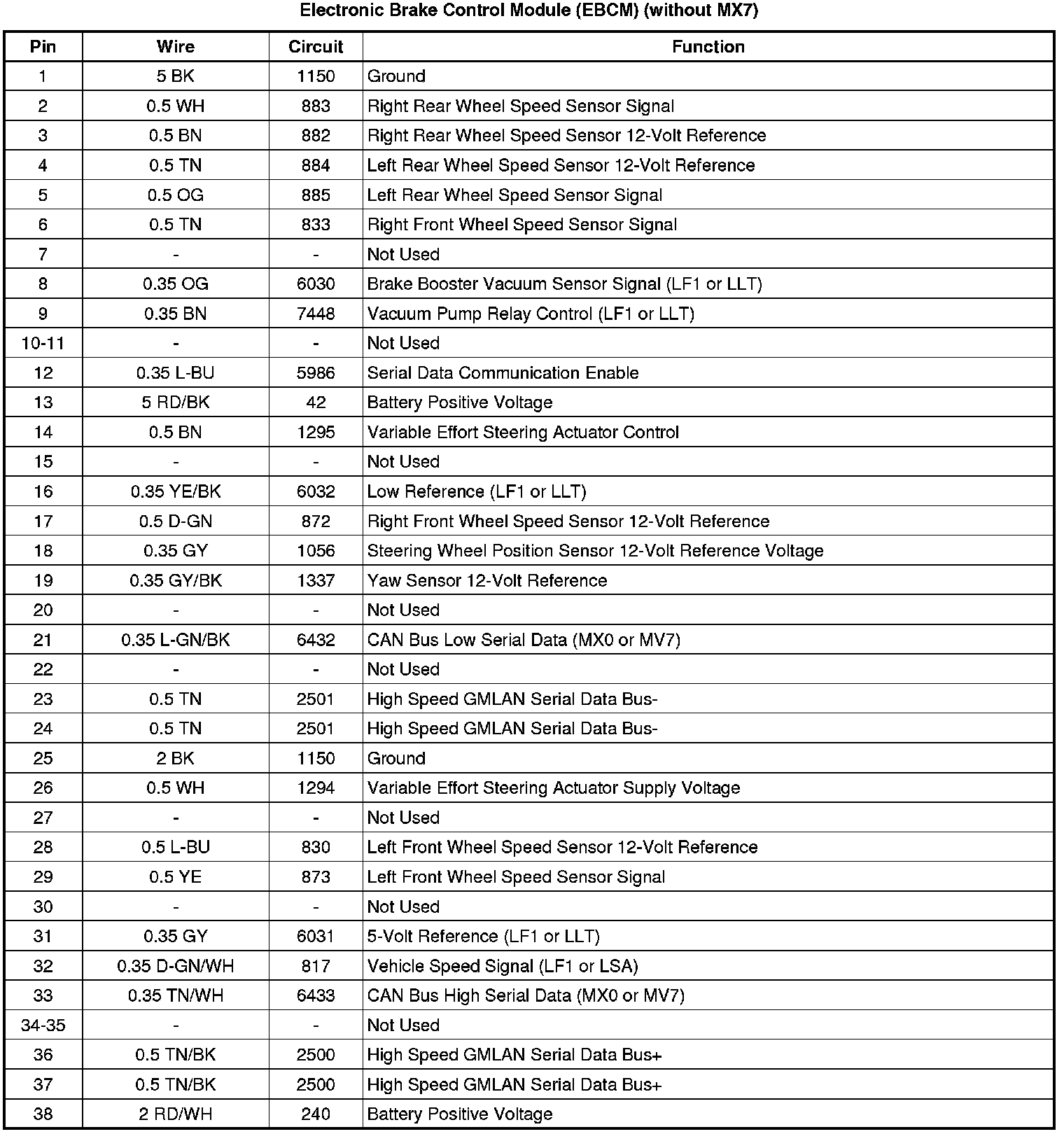

Component Connector End Views
Electronic Brake Control Module
(EBCM) (without MX7)
