Home >> Cadillac >> 2012 >> SRX FWD V6-3.6L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Locks >> Keyless Entry Transmitter

Keyless Entry Transmitter




Remote Function Schematics

Garage Door Opener





Passive Start (BTV)

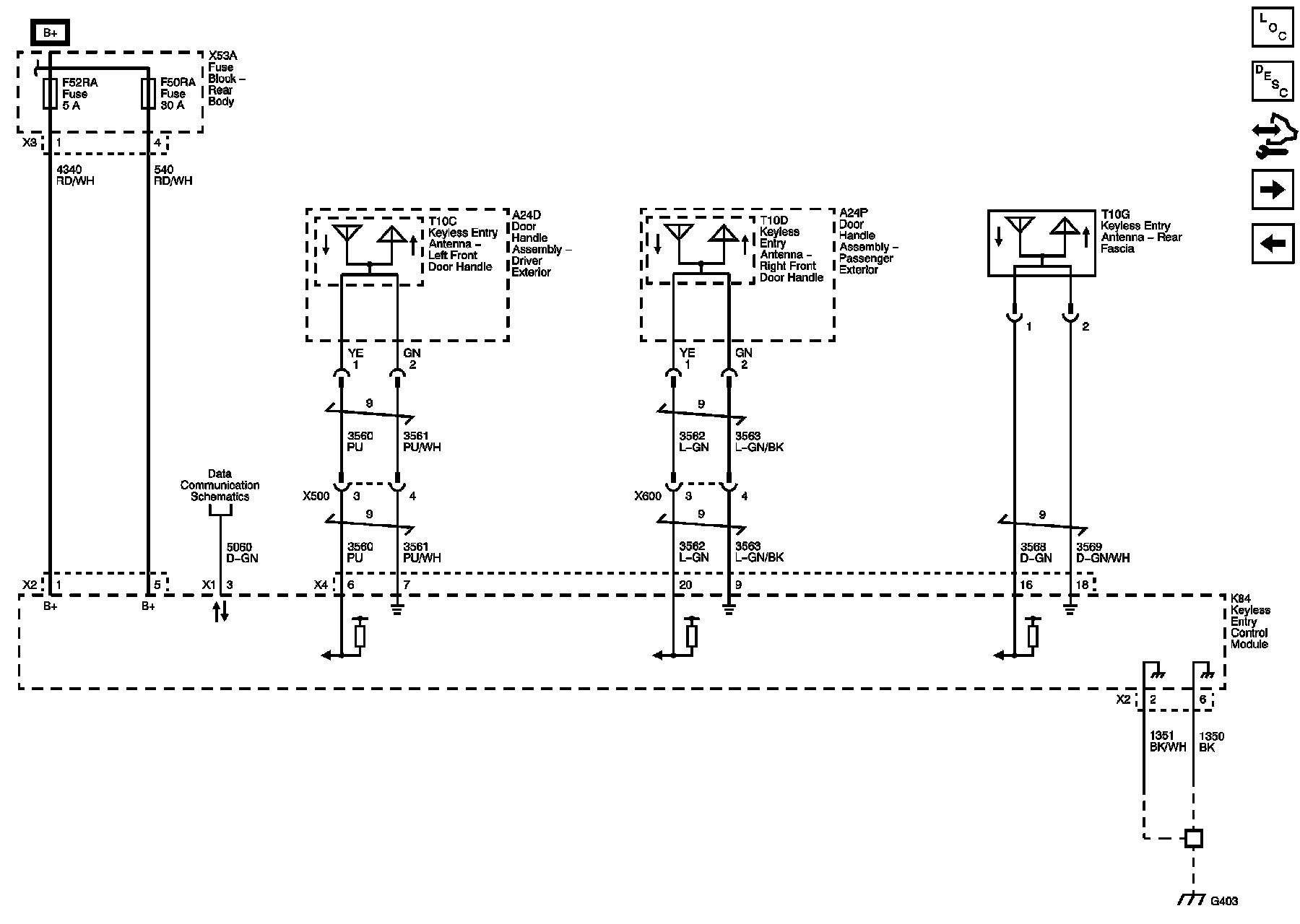

Passive Entry Power, Ground, Serial Data, and Antennas (ATH)





Passive Entry Door Lock References (ATH)





Remote Control Door Lock Receiver
