Body Control Systems




Body Control System Schematics

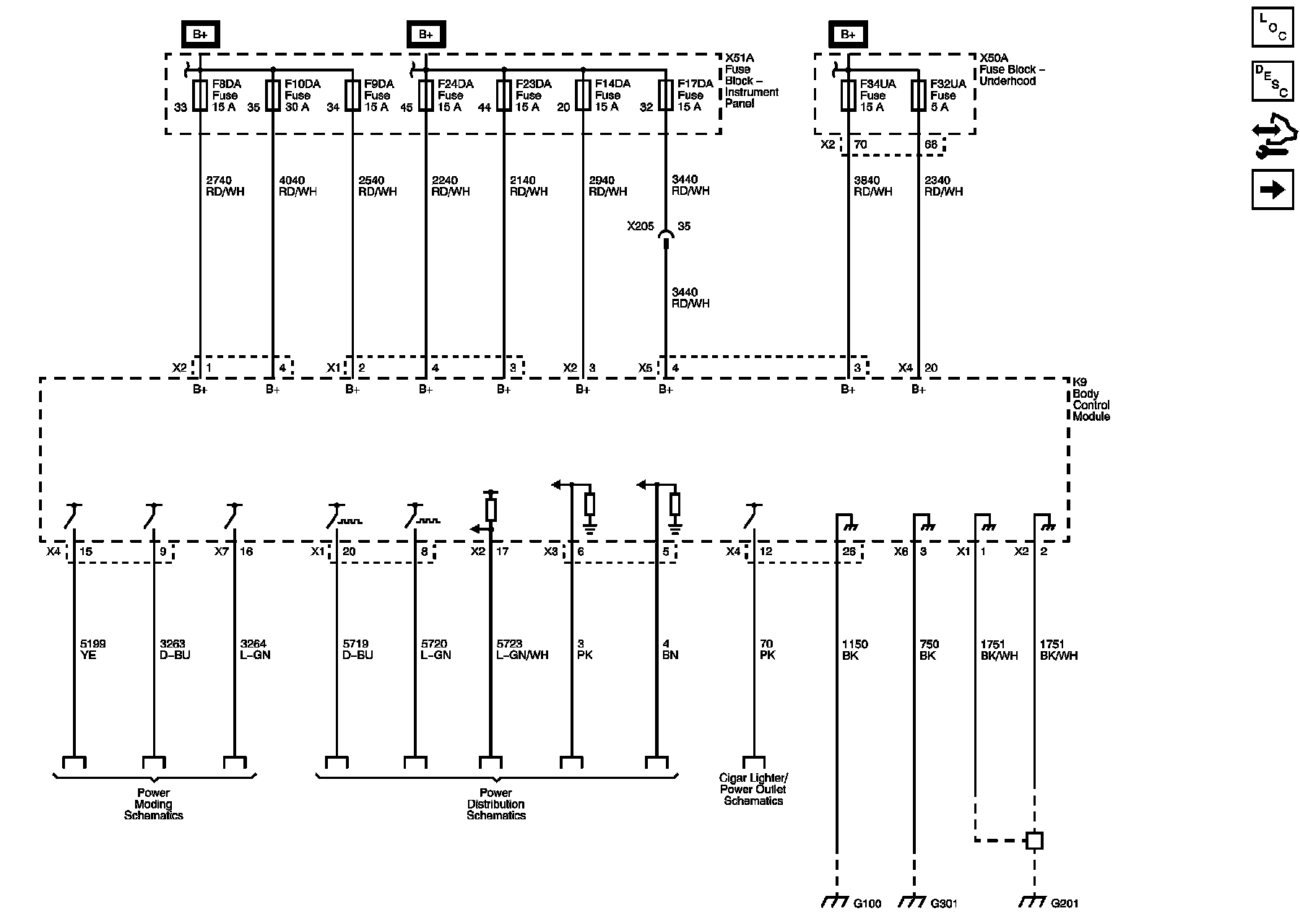

Power, Ground, and Subsystem References (1 of 3)

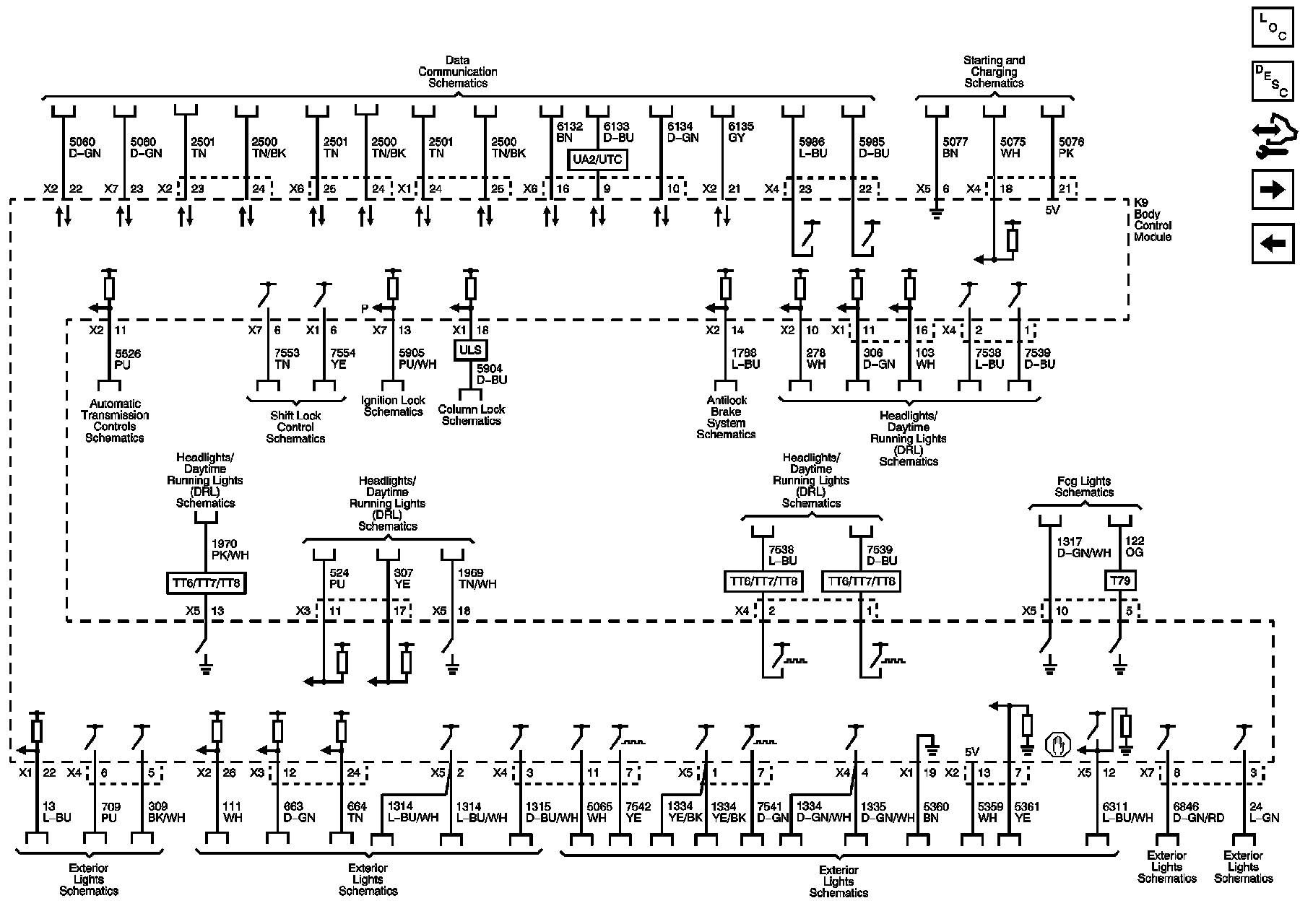

Subsystem References (2 of 3)

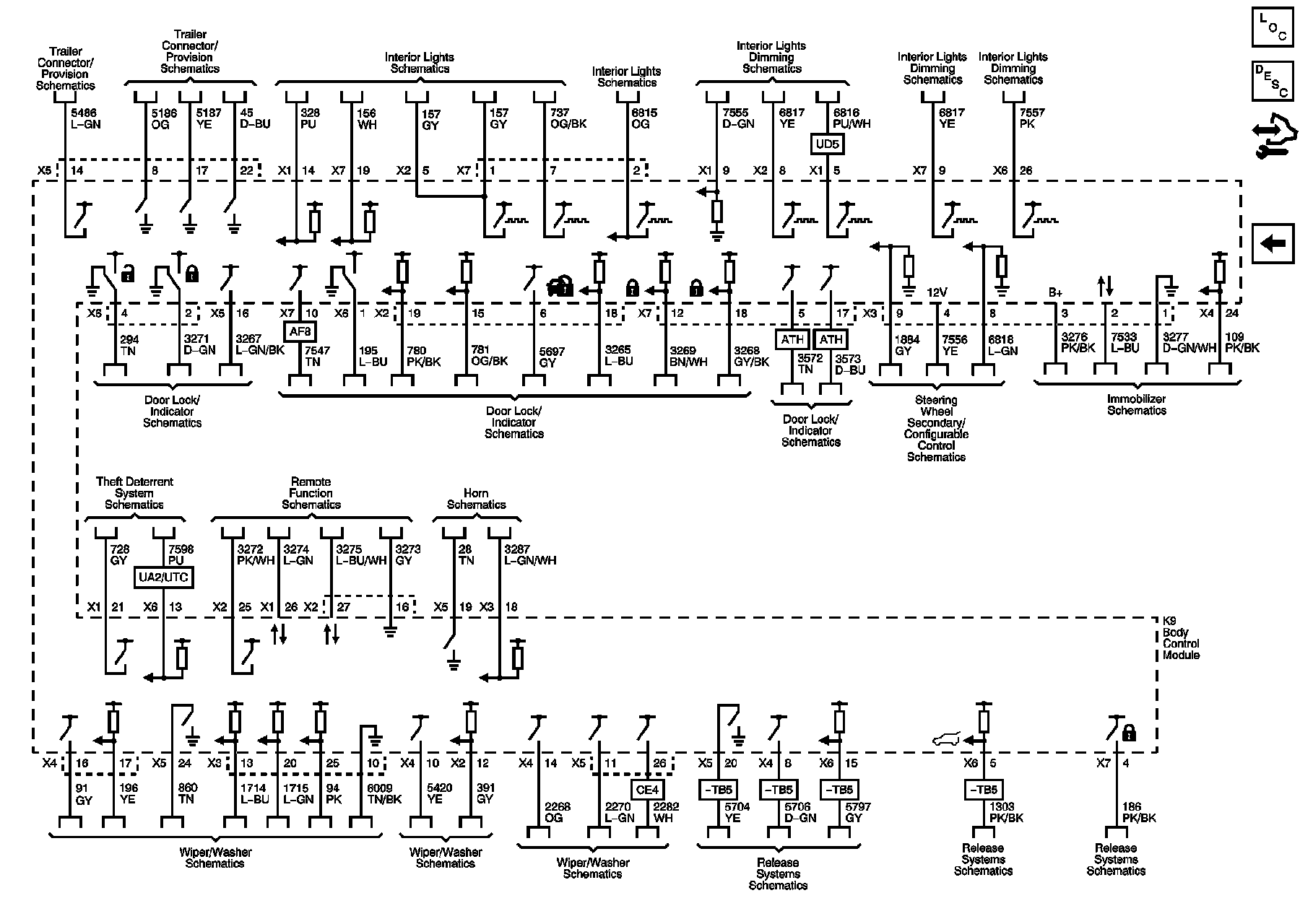

Subsystem References (3 of 3)
