Trunk / Liftgate Switch
>>
Liftgate Close Switch
Liftgate Close Switch

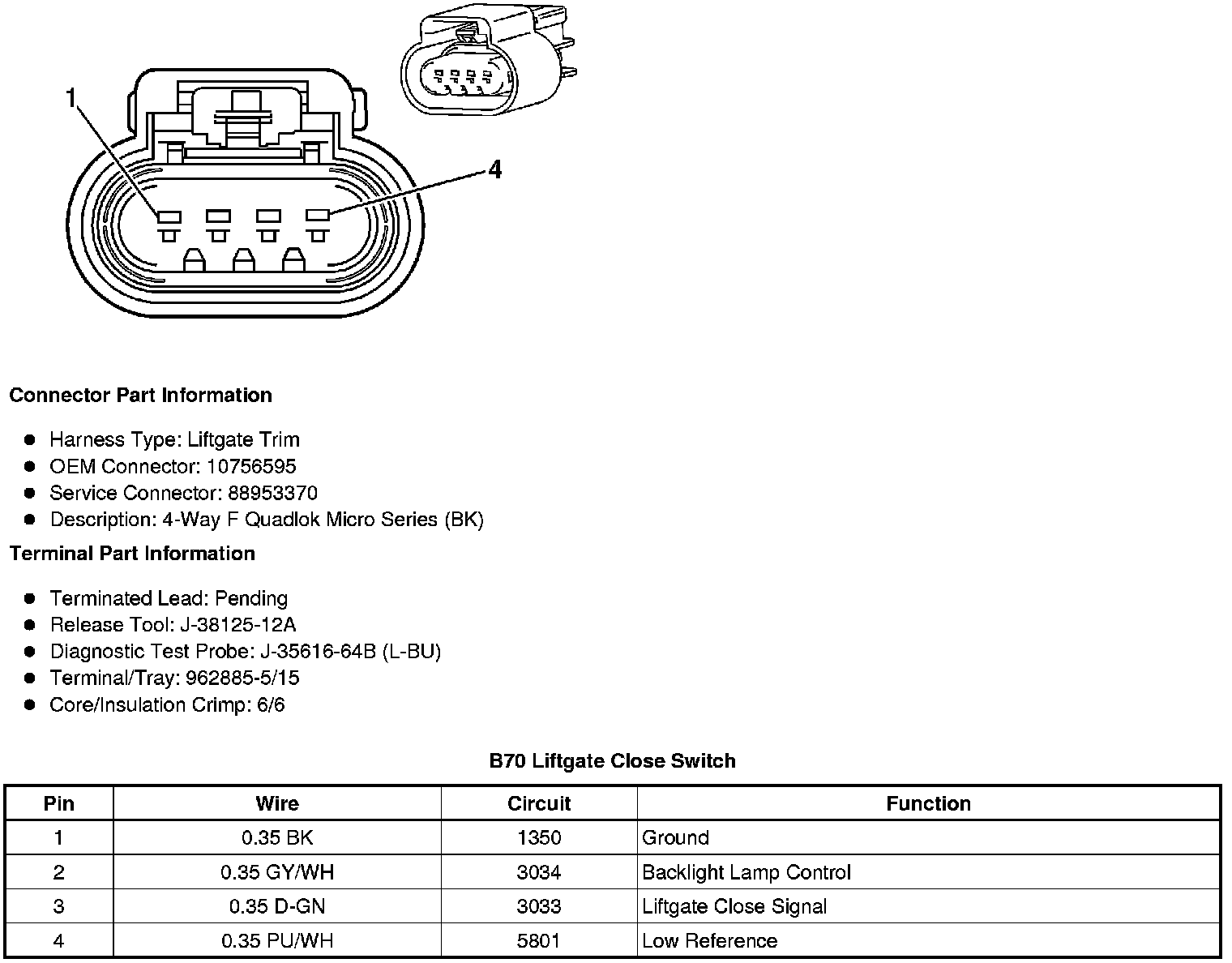

Component Connector End Views
B70 Liftgate Close Switch
