Trunk / Liftgate Position Sensor
Trunk / Liftgate Position Sensor

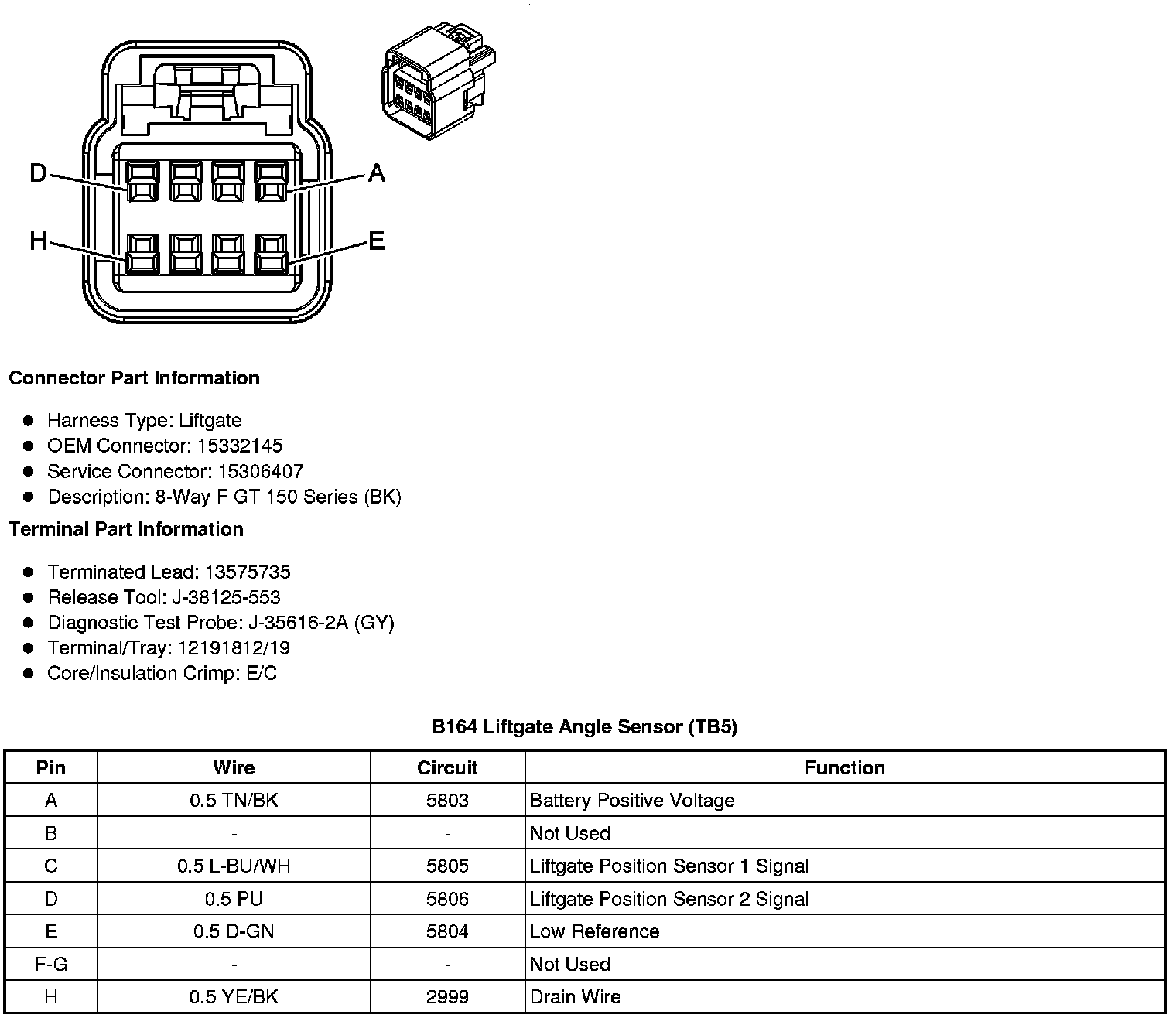

Component Connector End Views
B164 Liftgate Angle Sensor (TB5)
