Home >> Cadillac >> 2012 >> SRX FWD V6-3.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Window Switch >> Window Switch - Left Rear

Window Switch - Left Rear

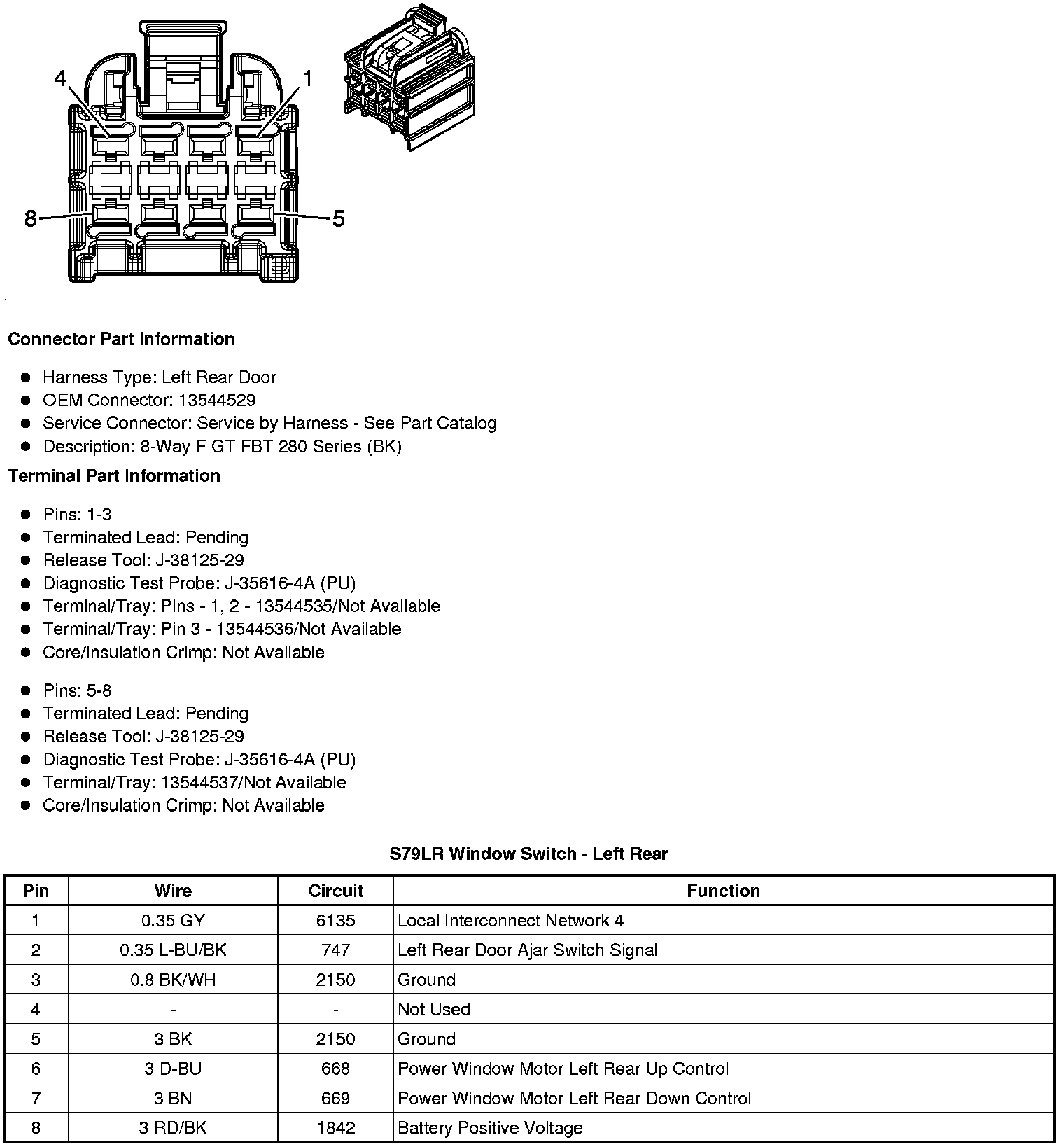

Component Connector End Views

S79LR Window Switch - Left Rear
