Cadillac
>>
2012
>>
SRX FWD V6-3.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Steering Pressure Control Valve
Power Steering Pressure Control Valve

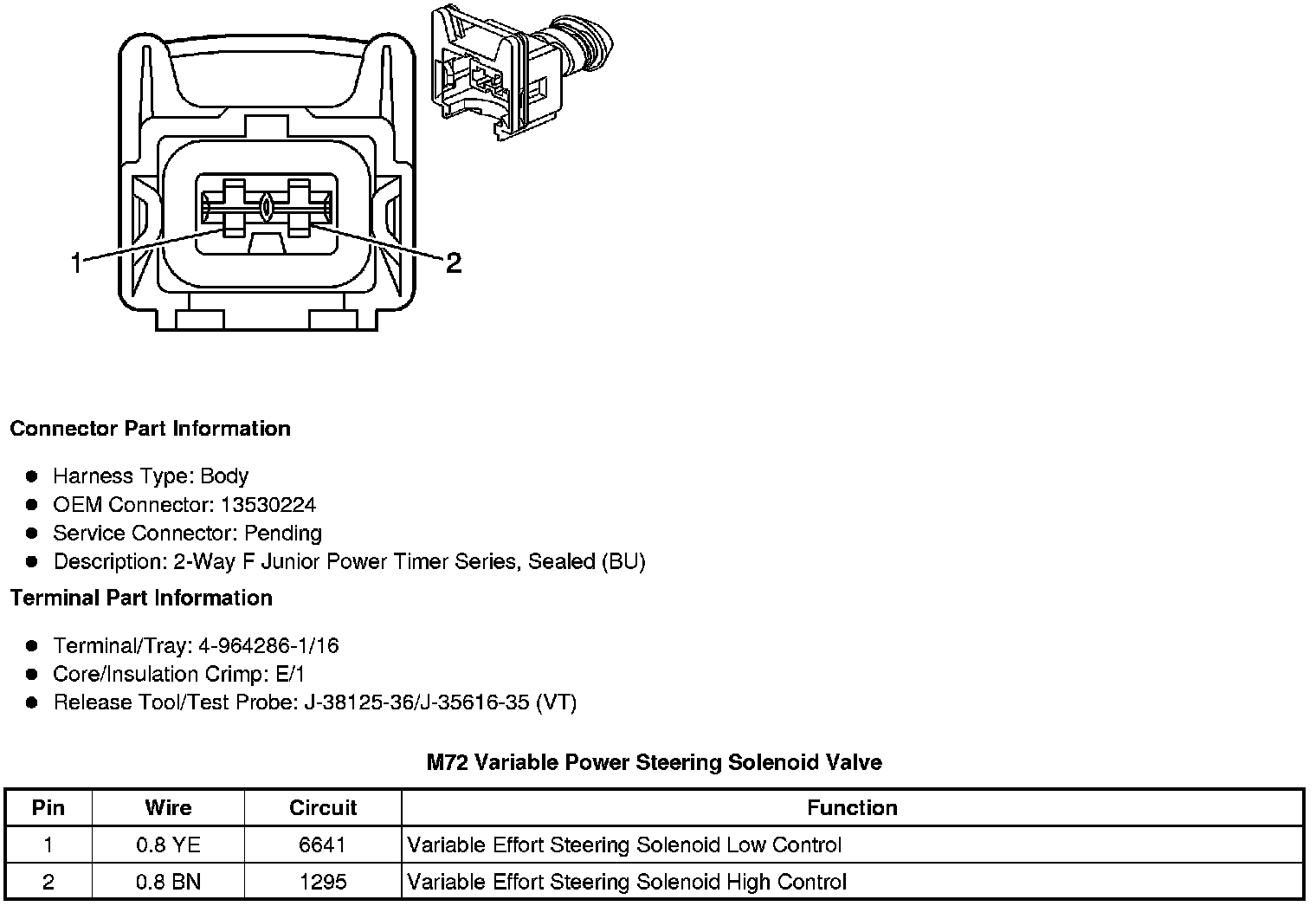

Component Connector End Views
M72 Variable Power Steering Solenoid Valve
