Side Impact Sensor - Right Front

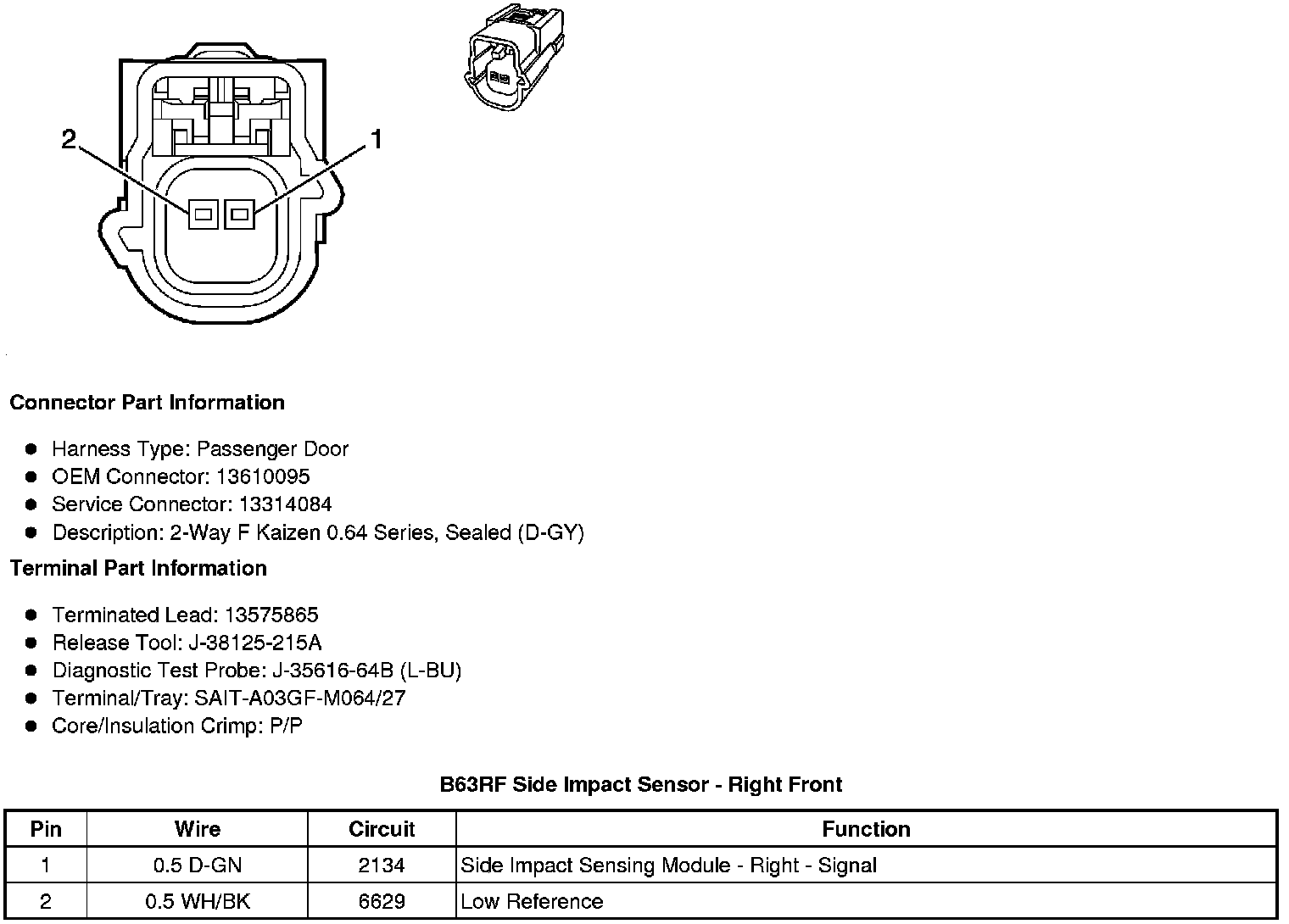

Component Connector End Views

B63RF Side Impact Sensor - Right Front
