Coolant Level Sensor
Coolant Level Sensor

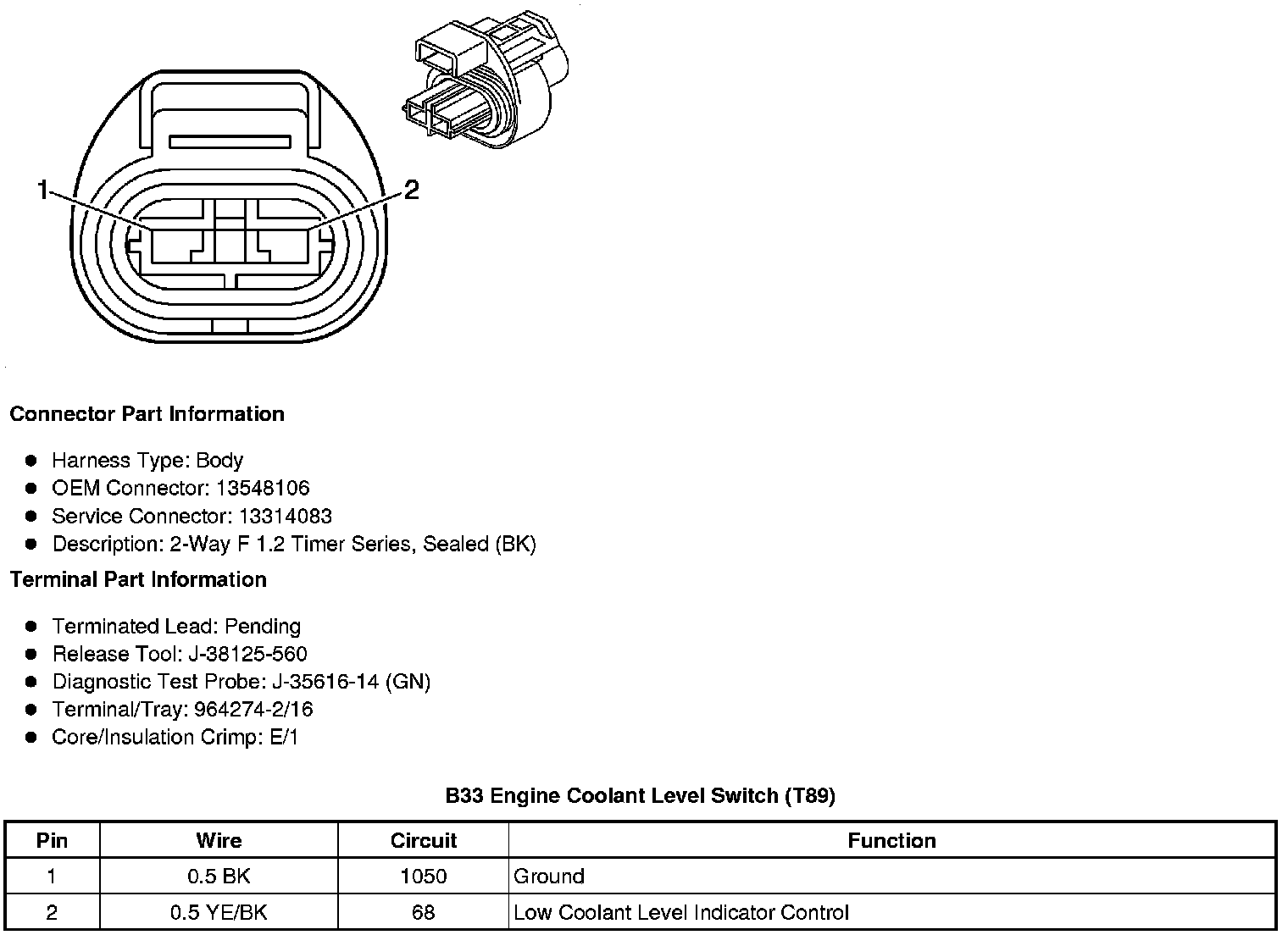

Component Connector End Views
B33 Engine Coolant Level Switch (T89)
