Rear Object Sensor - Left Middle (UD5)




Component Connector End Views

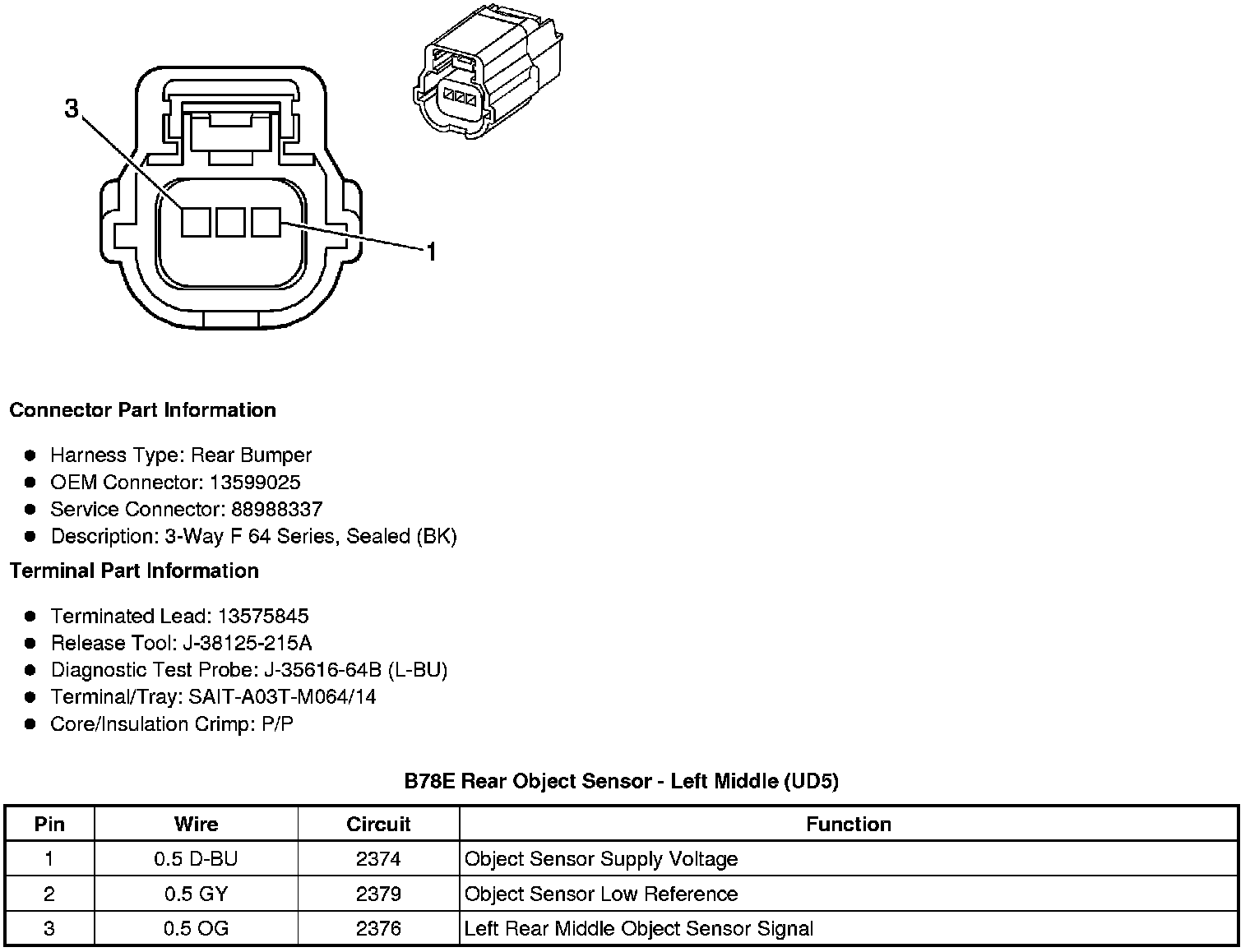

B78E Rear Object Sensor - Left Middle (UD5)
