Inflatable Restraint Sensing and Diagnostic Module X1 (without C99)

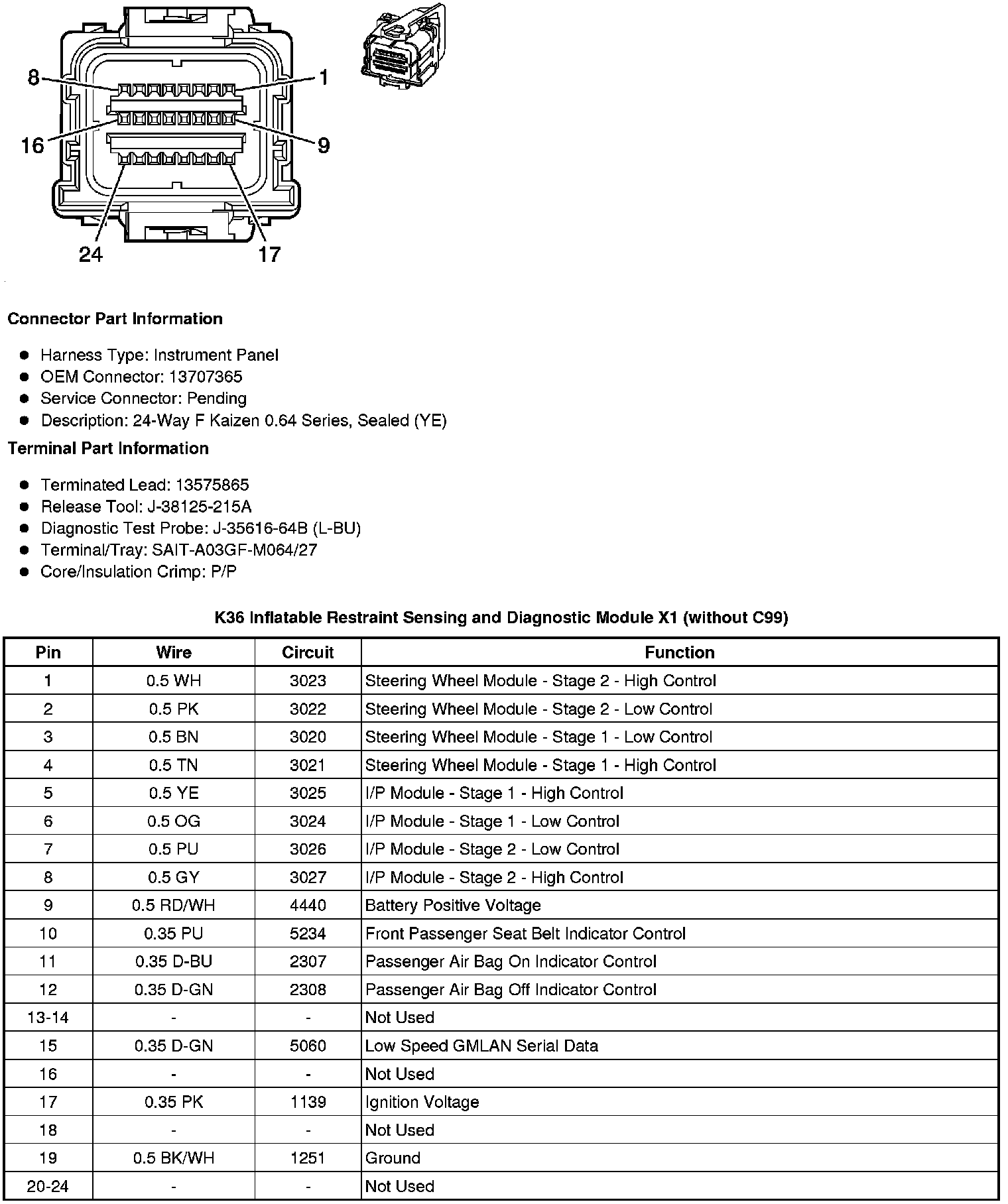

Component Connector End Views

K36 Inflatable Restraint Sensing and Diagnostic Module X1 (without C99)
