Air Bag Control Module
>>
Inflatable Restraint Sensing and Diagnostic Module X1 (C99)
Inflatable Restraint Sensing and Diagnostic Module X1 (C99)
Component Connector End Views

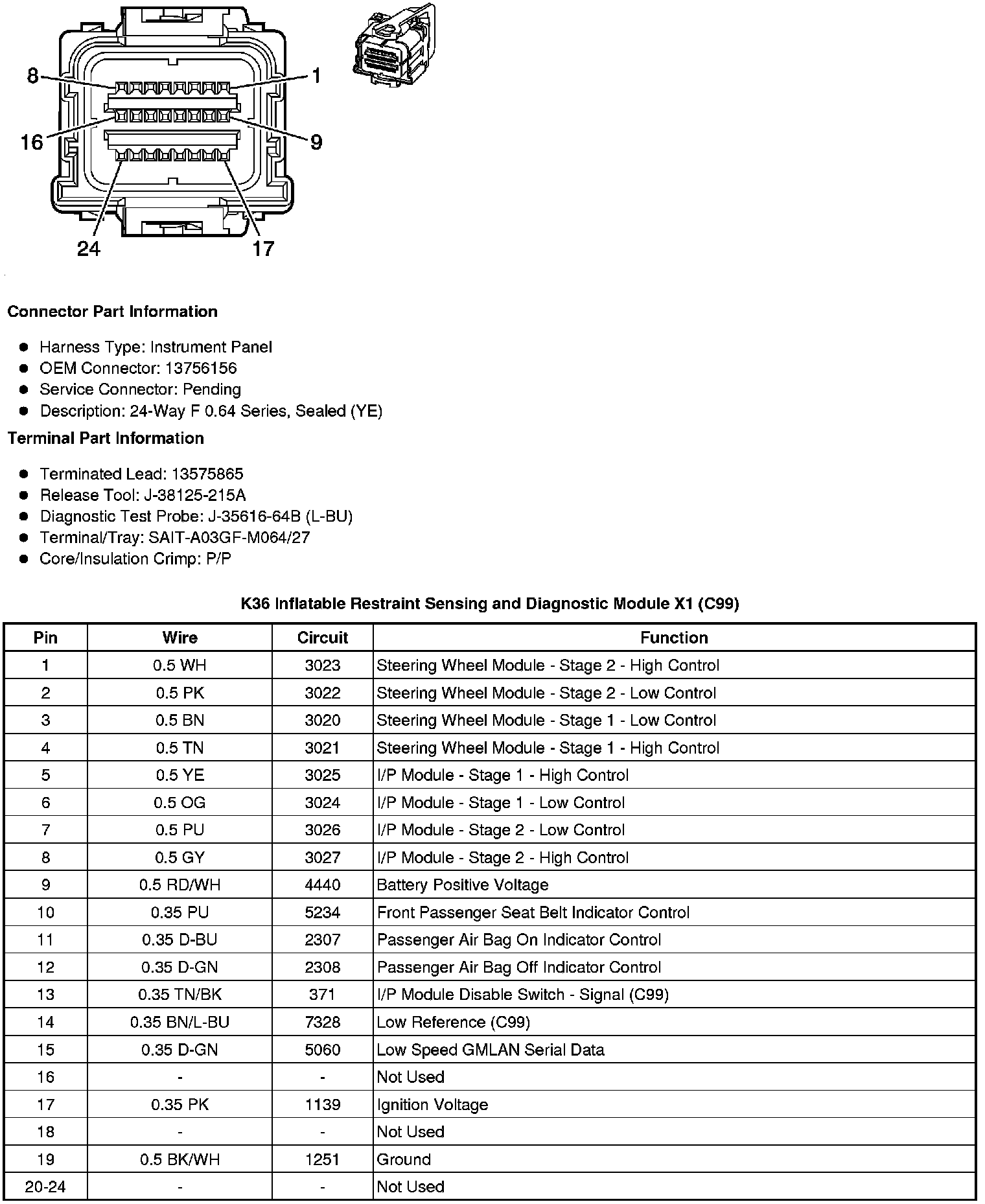

K36 Inflatable Restraint Sensing and Diagnostic Module X1 (C99)
