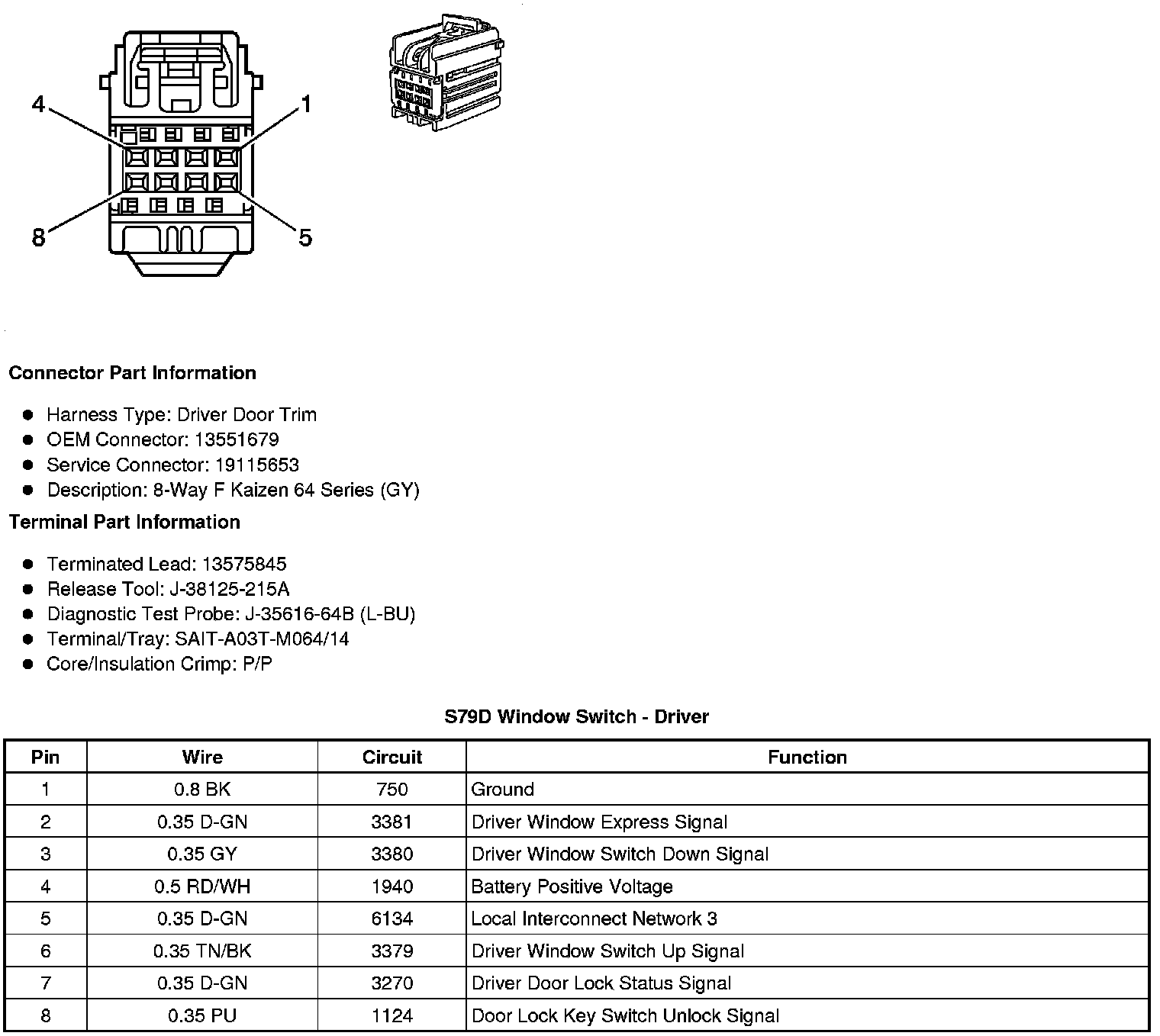

Window Switch - Driver
Window Switch - Driver
Component Connector End Views
S79D Window Switch - Driver
