Steering Column Control Module: Diagrams

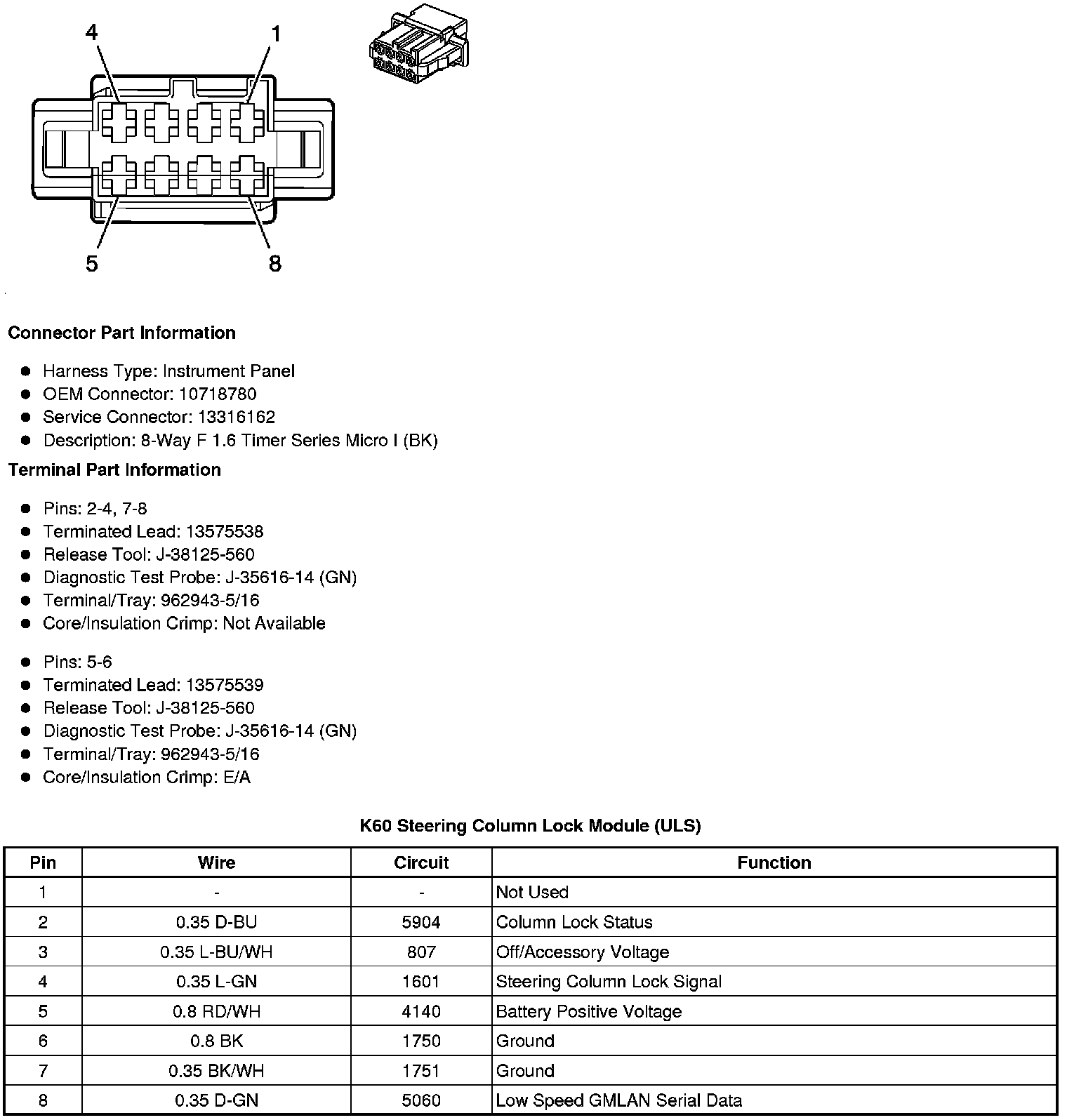

Component Connector End Views

K60 Steering Column Lock Module (ULS)
