Electronic Brake Control Module: Diagrams

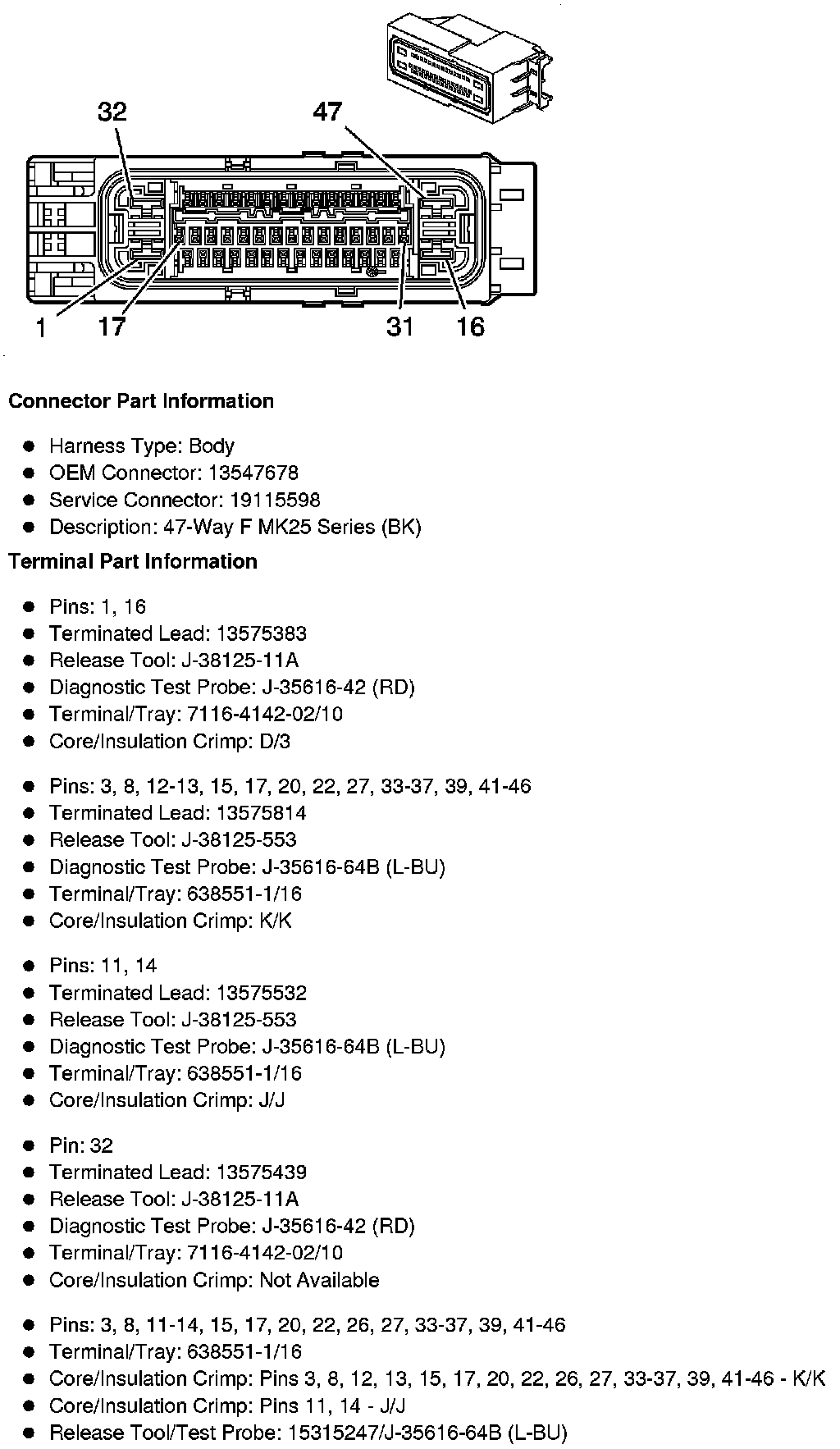

Component Connector End Views

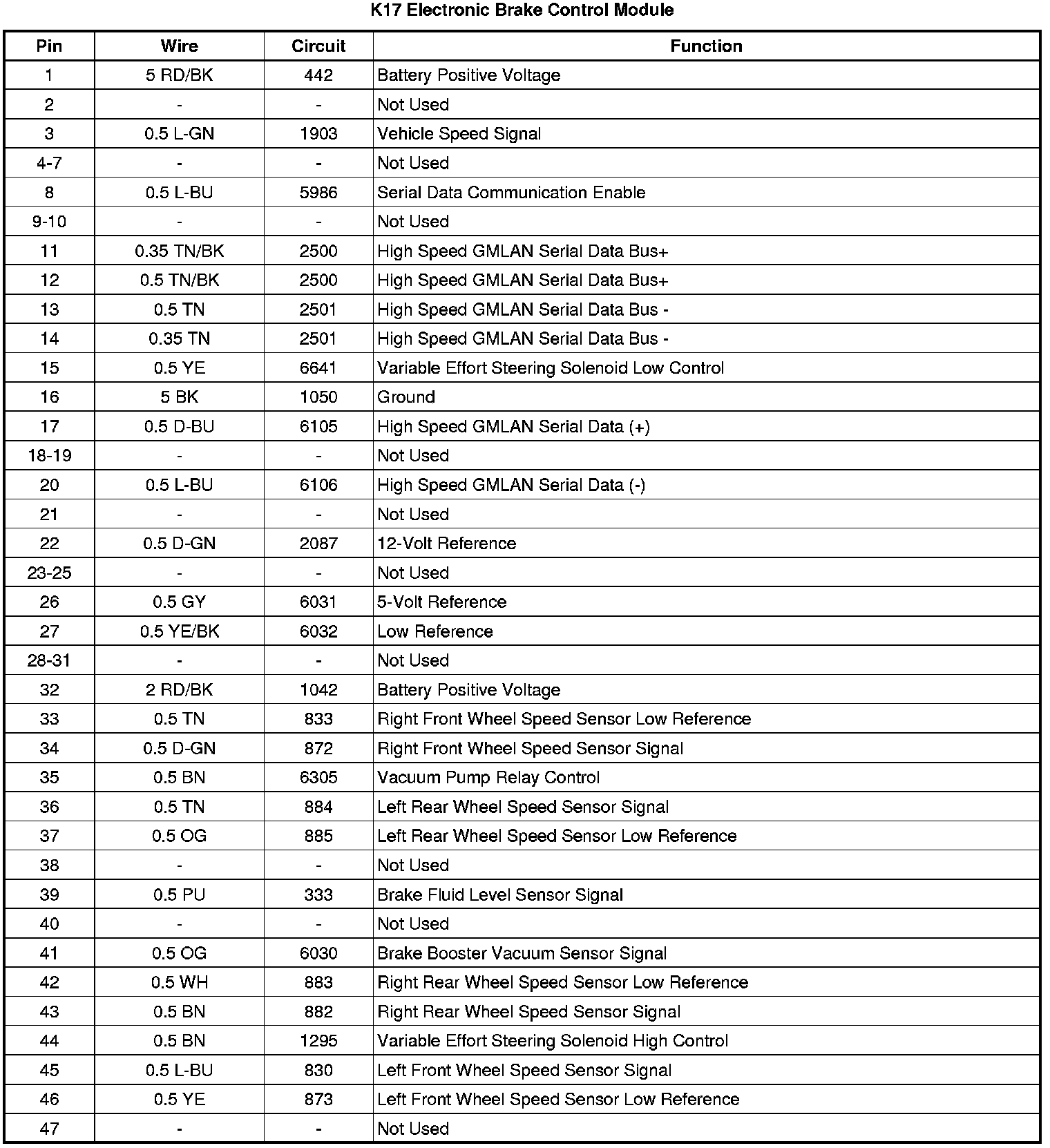

K17 Electronic Brake Control Module
