Manifold Pressure/Vacuum Sensor: Diagrams

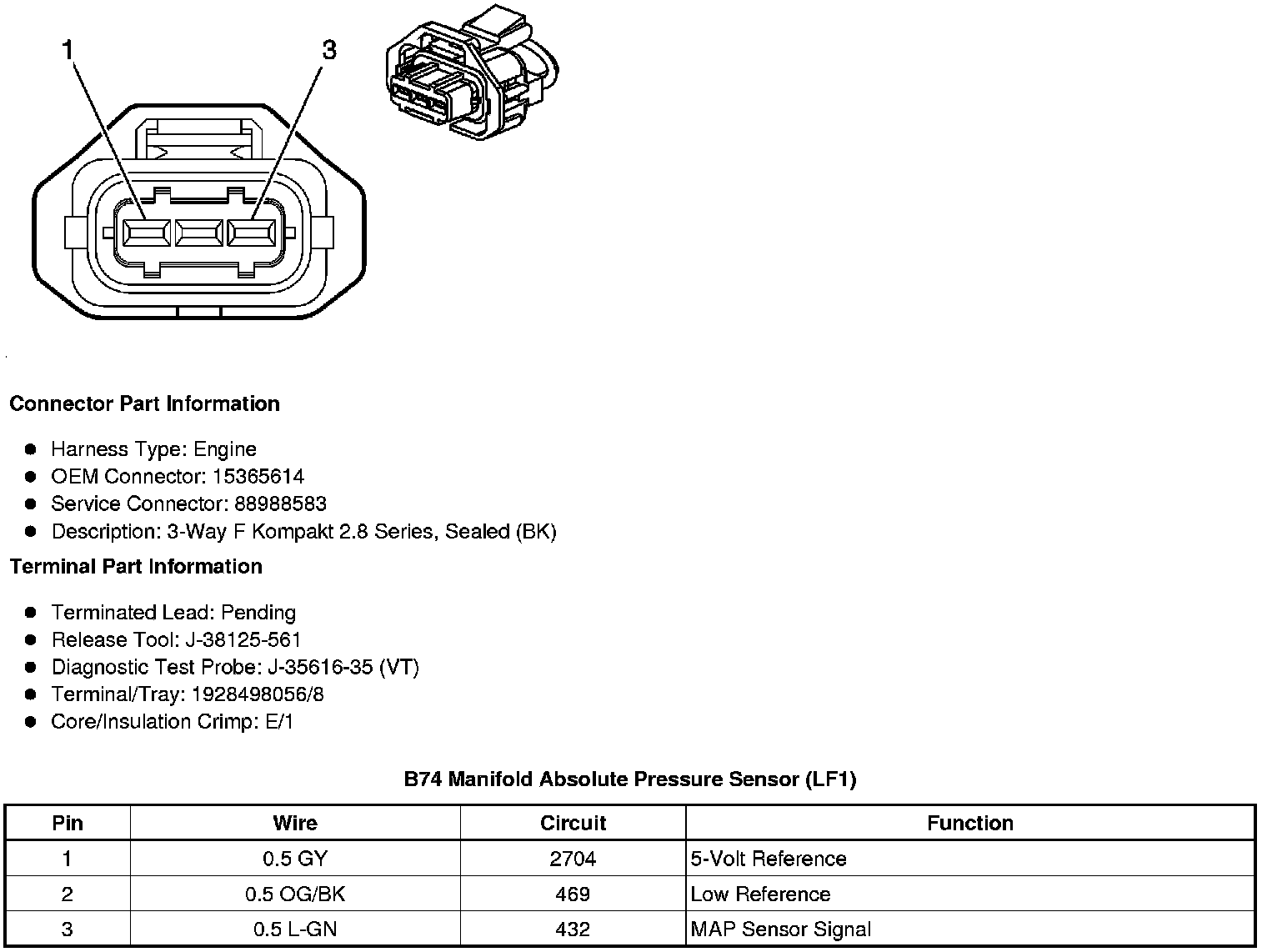

Component Connector End Views

B74 Manifold Absolute Pressure Sensor (LF1)
