Entertainment System Control Module: Diagrams

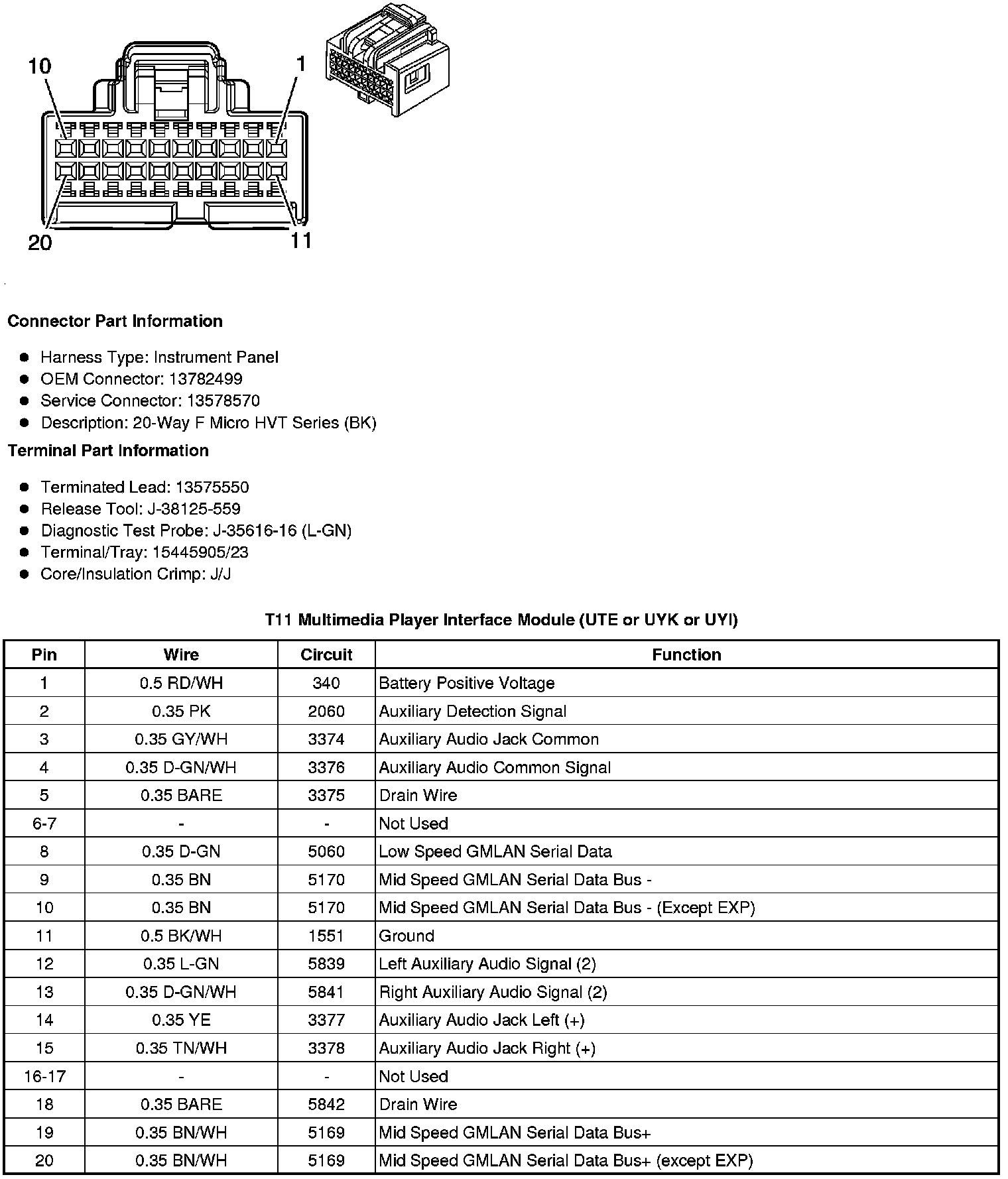

Component Connector End Views

T11 Multimedia Player Interface Module (UTE, UYK or UYI)
