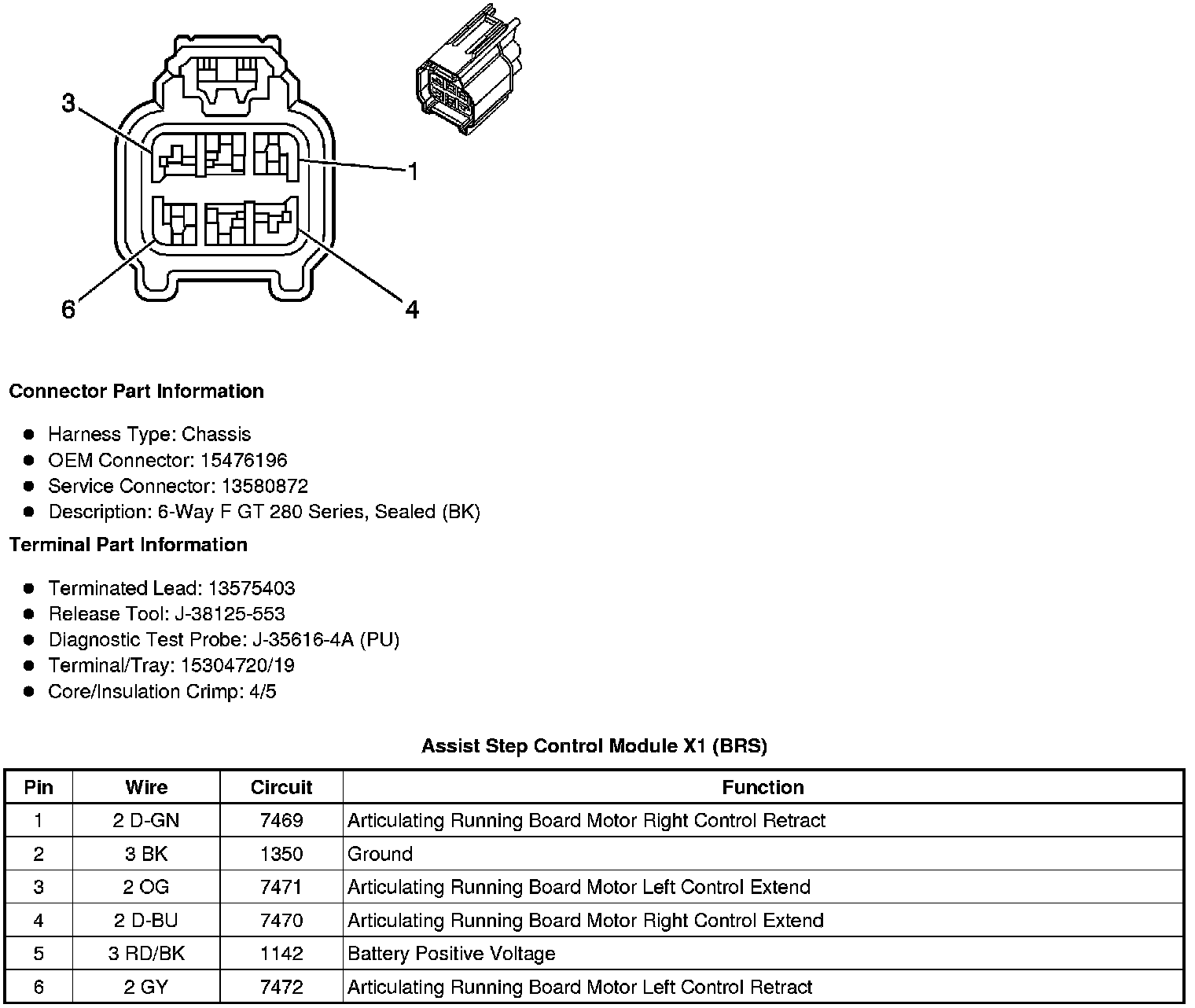

Home >> Cadillac >> 2012 >> Escalade/ESV AWD V8-6.2L >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Body and Frame >> Auxiliary Step / Running Board Module >> Diagrams >> Assist Step Control Module X1 (BRS)
