Home >> Cadillac >> 2012 >> Escalade/ESV AWD V8-6.2L >> Repair and Diagnosis >> Heating and Air Conditioning >> Compressor HVAC >> Compressor Clutch Hub >> Service and Repair

Compressor Clutch Hub: Service and Repair

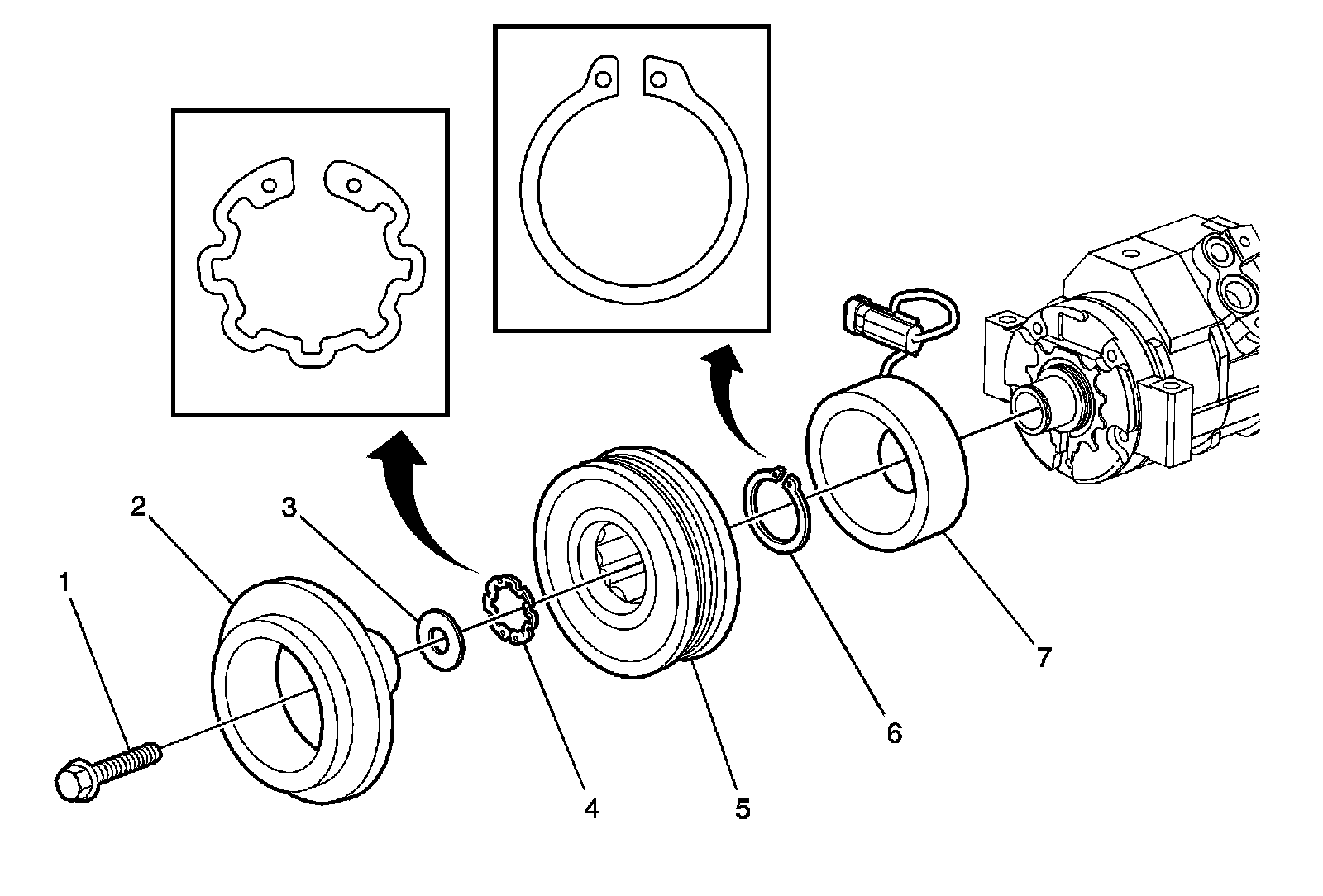

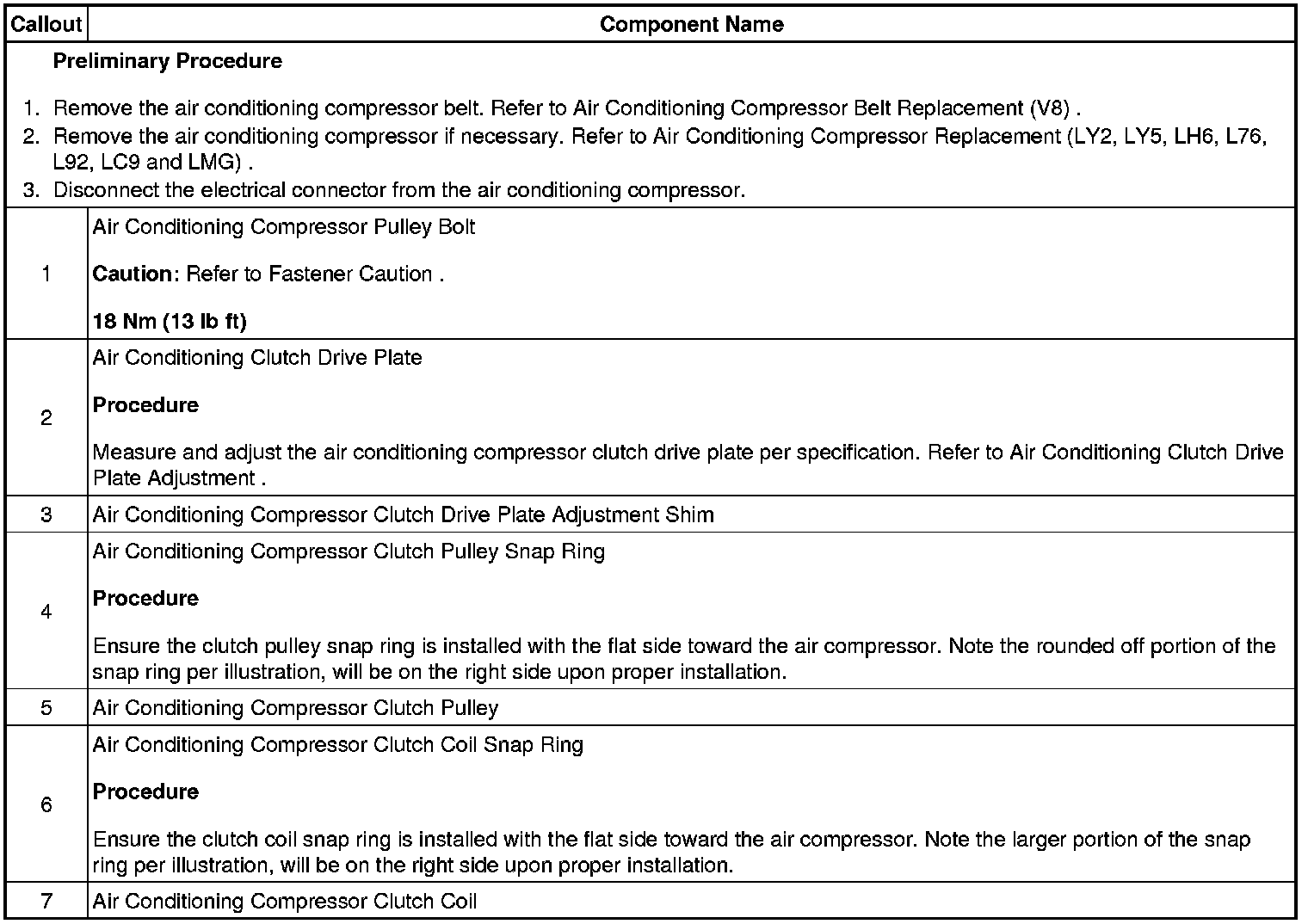

Compressor Clutch Plate/Hub Assembly Replacement
