Heated Seat Control Module - Rear




Passenger Compartment/Roof Component Views

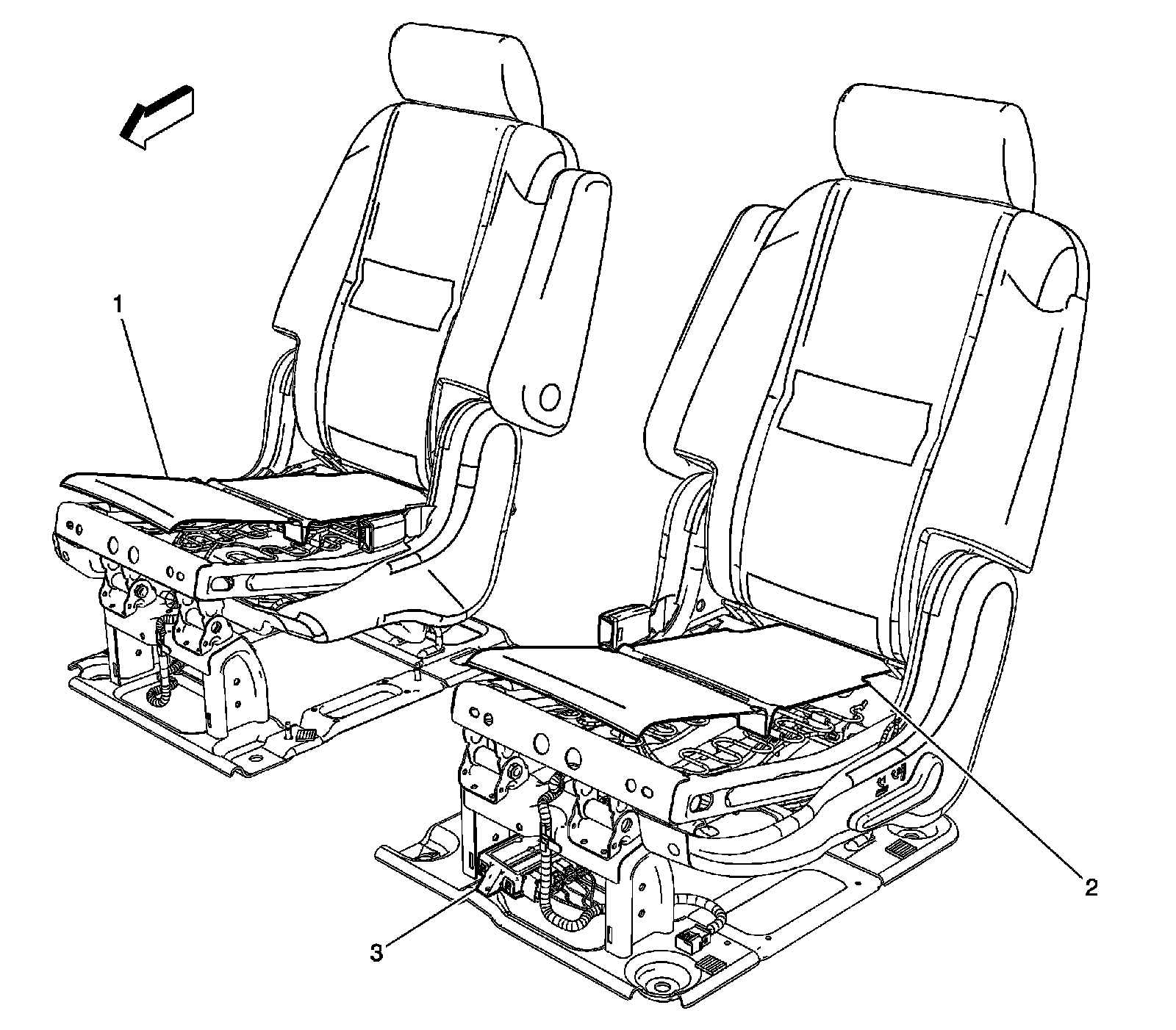

Rear Seat Components (KA6)




1 - Heated Seat Element - Right Rear Cushion
2 - Heated Seat Element - Left Rear Cushion
3 - Heated Seat Control Module - Rear
