Home >> Cadillac >> 2012 >> CTS Sedan RWD V6-3.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Electronic Brake Control Module >> Electronic Brake Control Module (EBCM) (MX7)

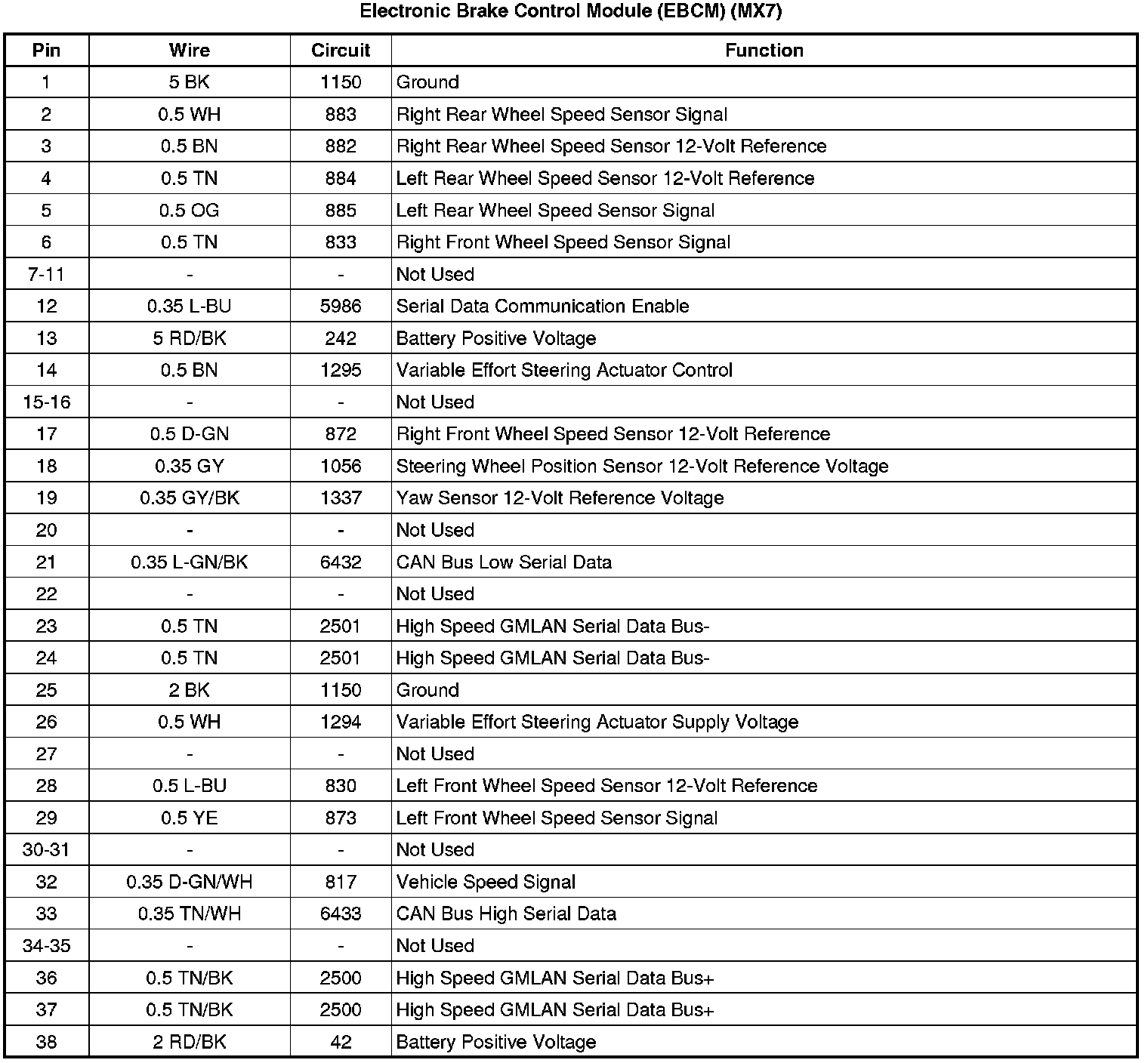

Electronic Brake Control Module (EBCM) (MX7)




Component Connector End Views

Electronic Brake Control Module (EBCM) (MX7)
