Body Control Systems




Body Control System Schematics

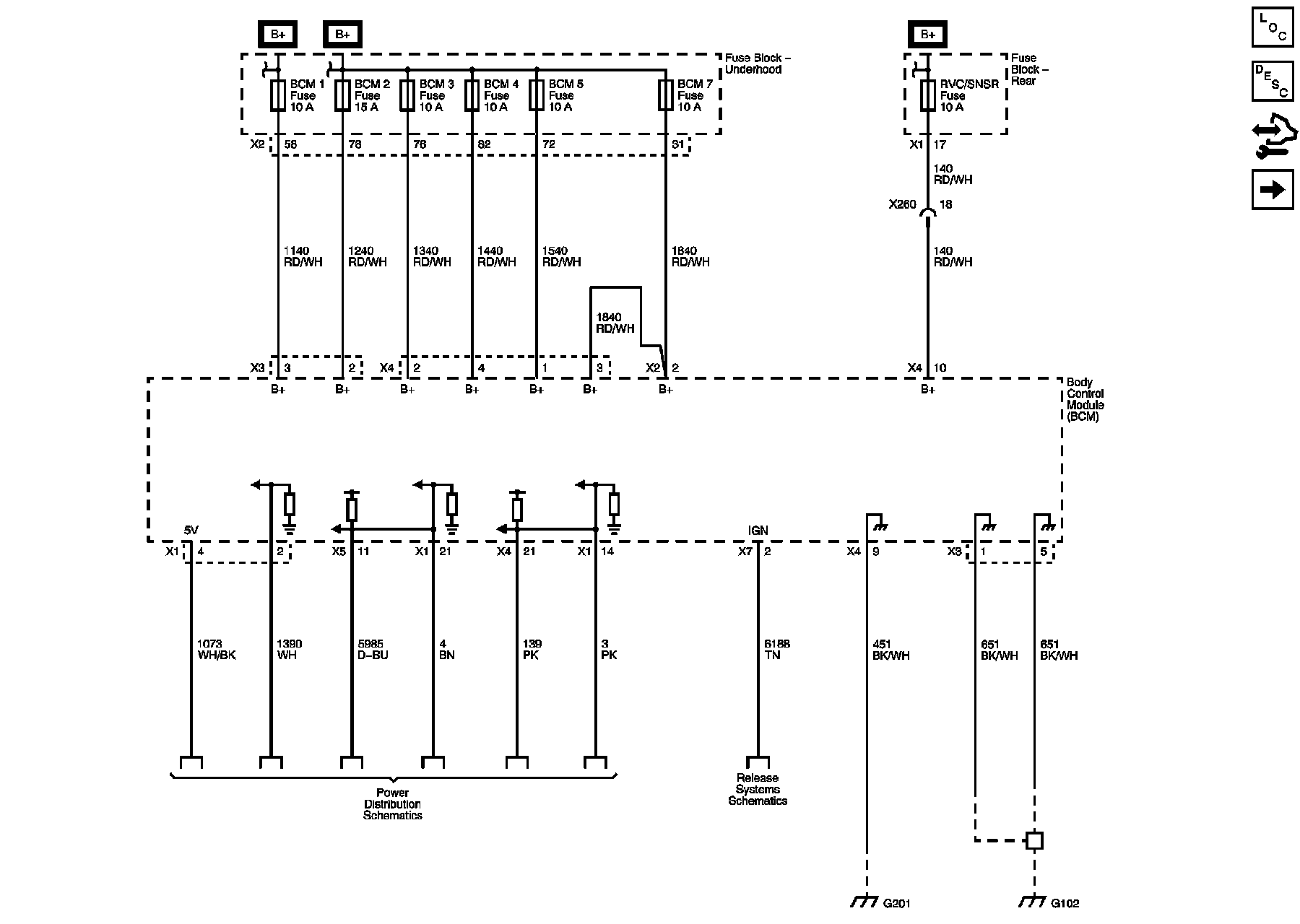

Module Power and Ground

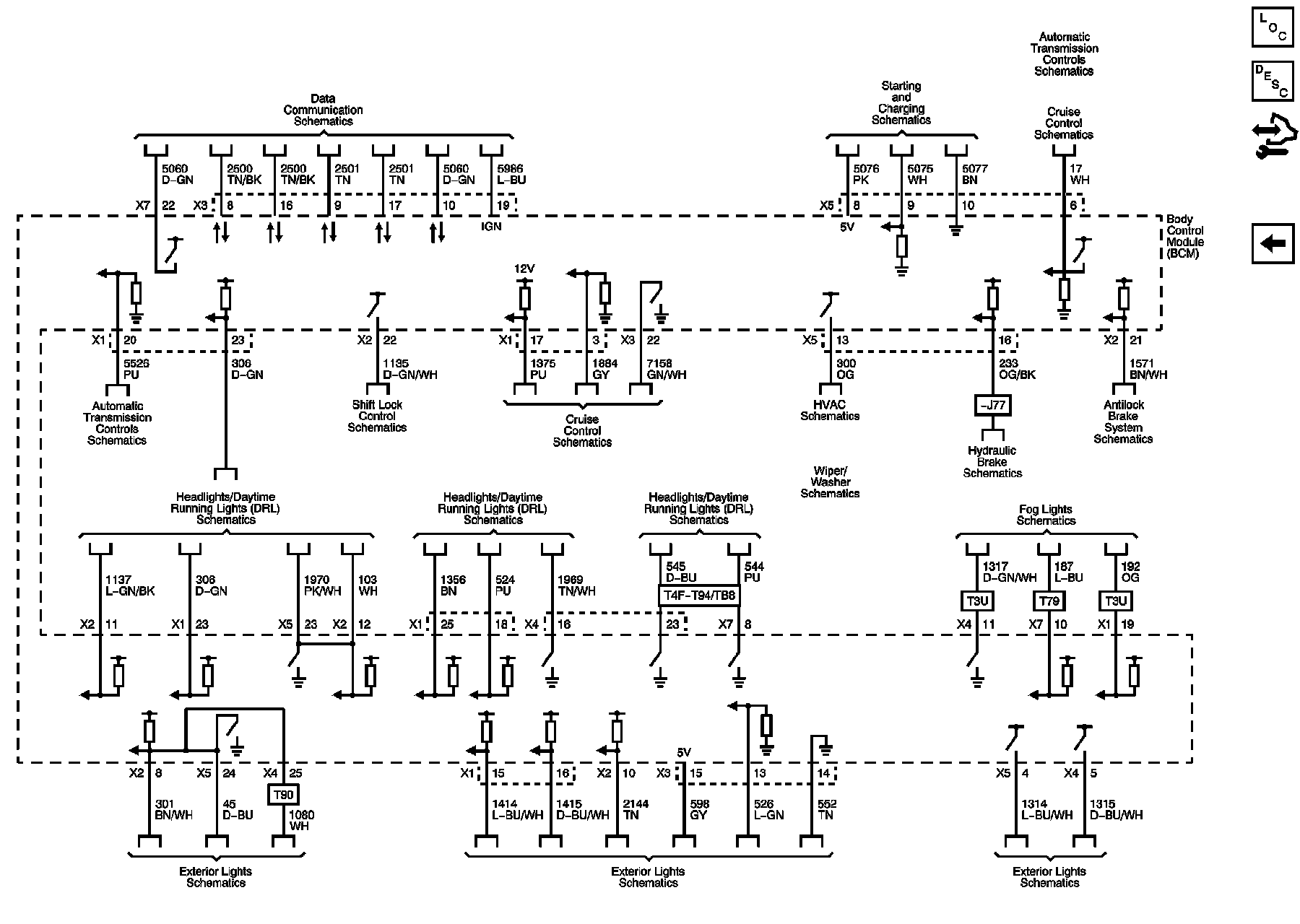

Subsystem References (1 of 3)

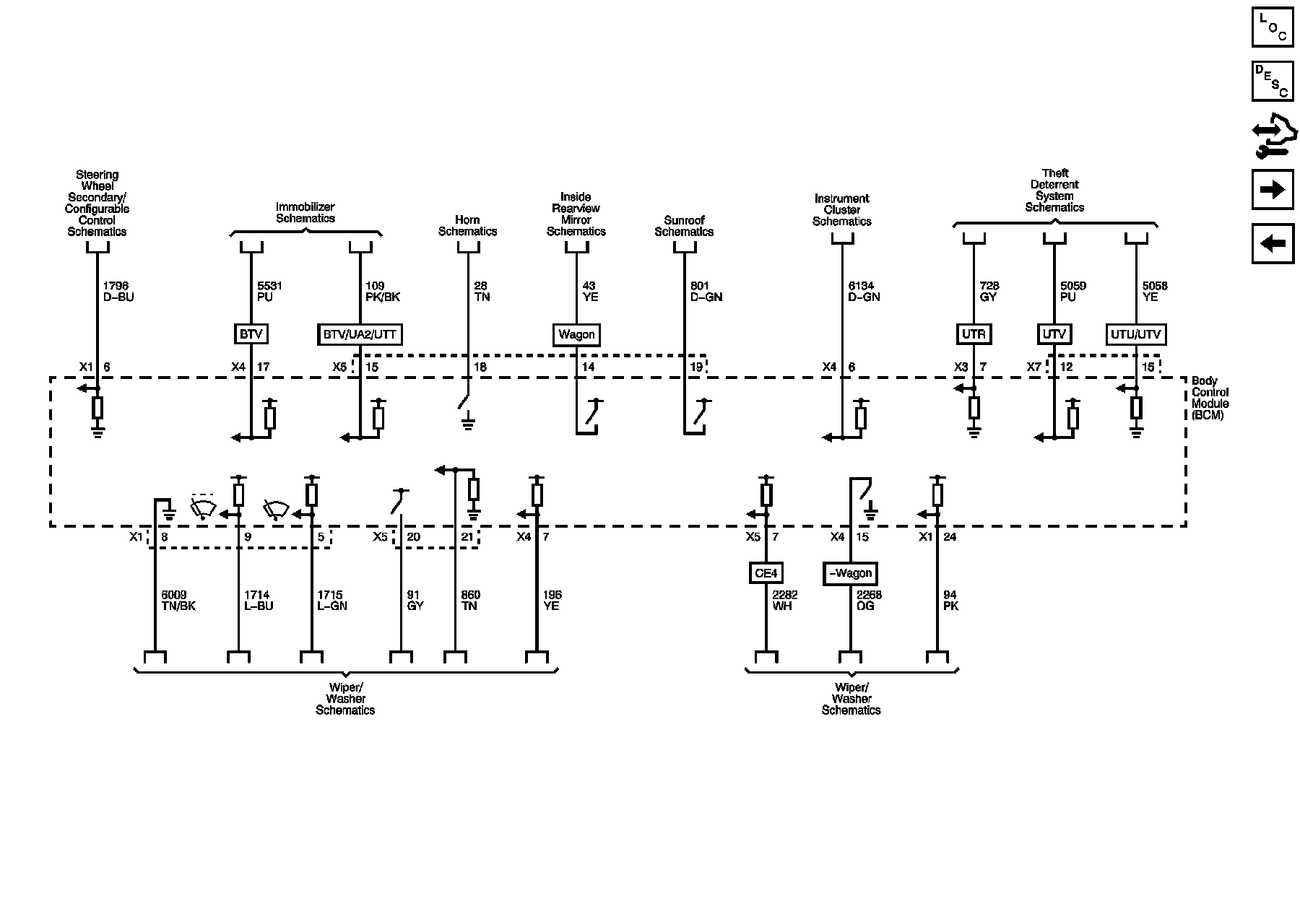

Subsystem References (2 of 3)





Subsystem References (3 of 3)
