Home
>>
Cadillac
>>
2012
>>
CTS Sedan AWD V6-3.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Windshield Washer Relay

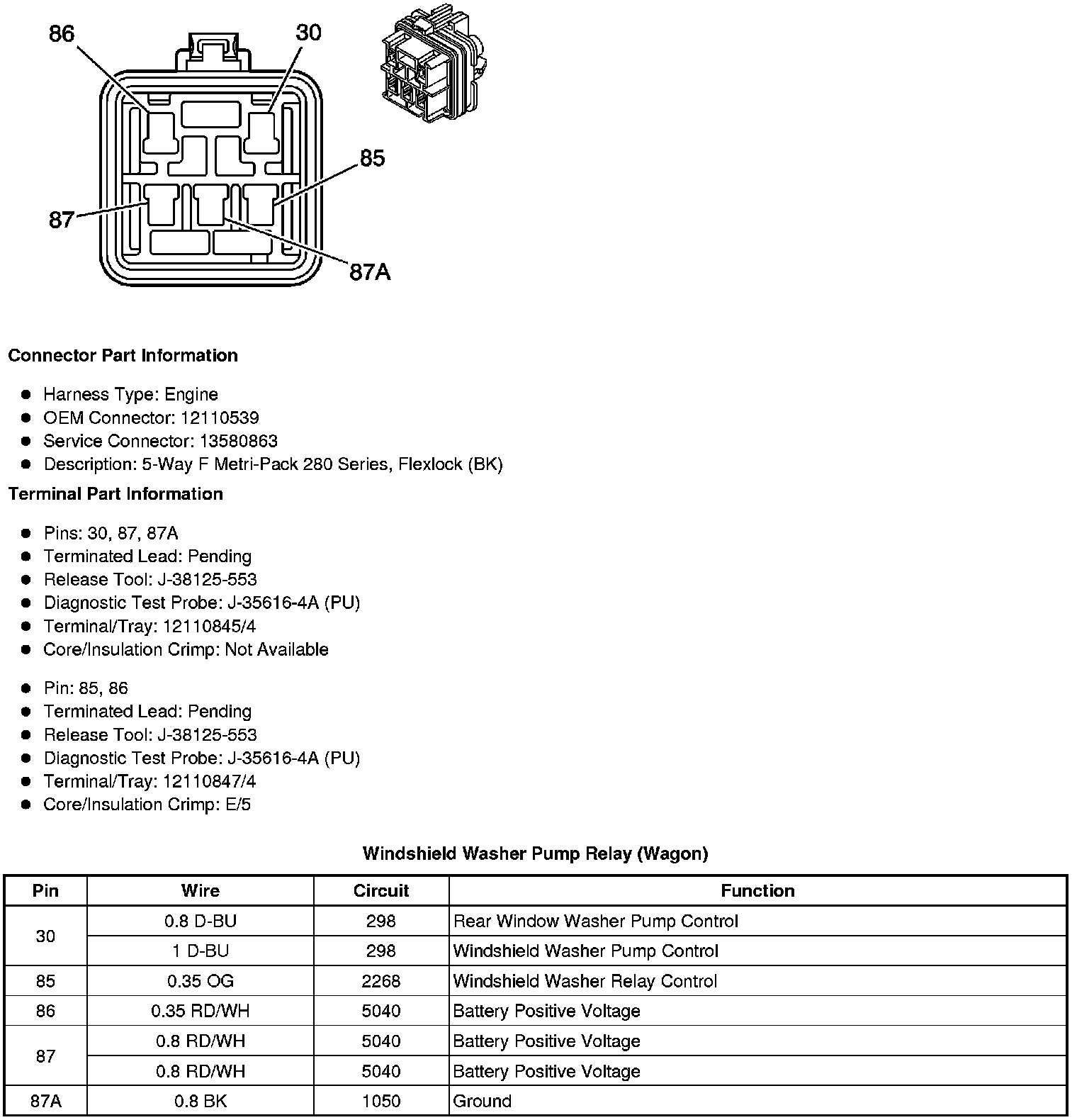

Windshield Washer Relay
Component Connector End Views
Windshield Washer Pump Relay (Wagon)
