Trunk / Liftgate Relay
Trunk / Liftgate Relay

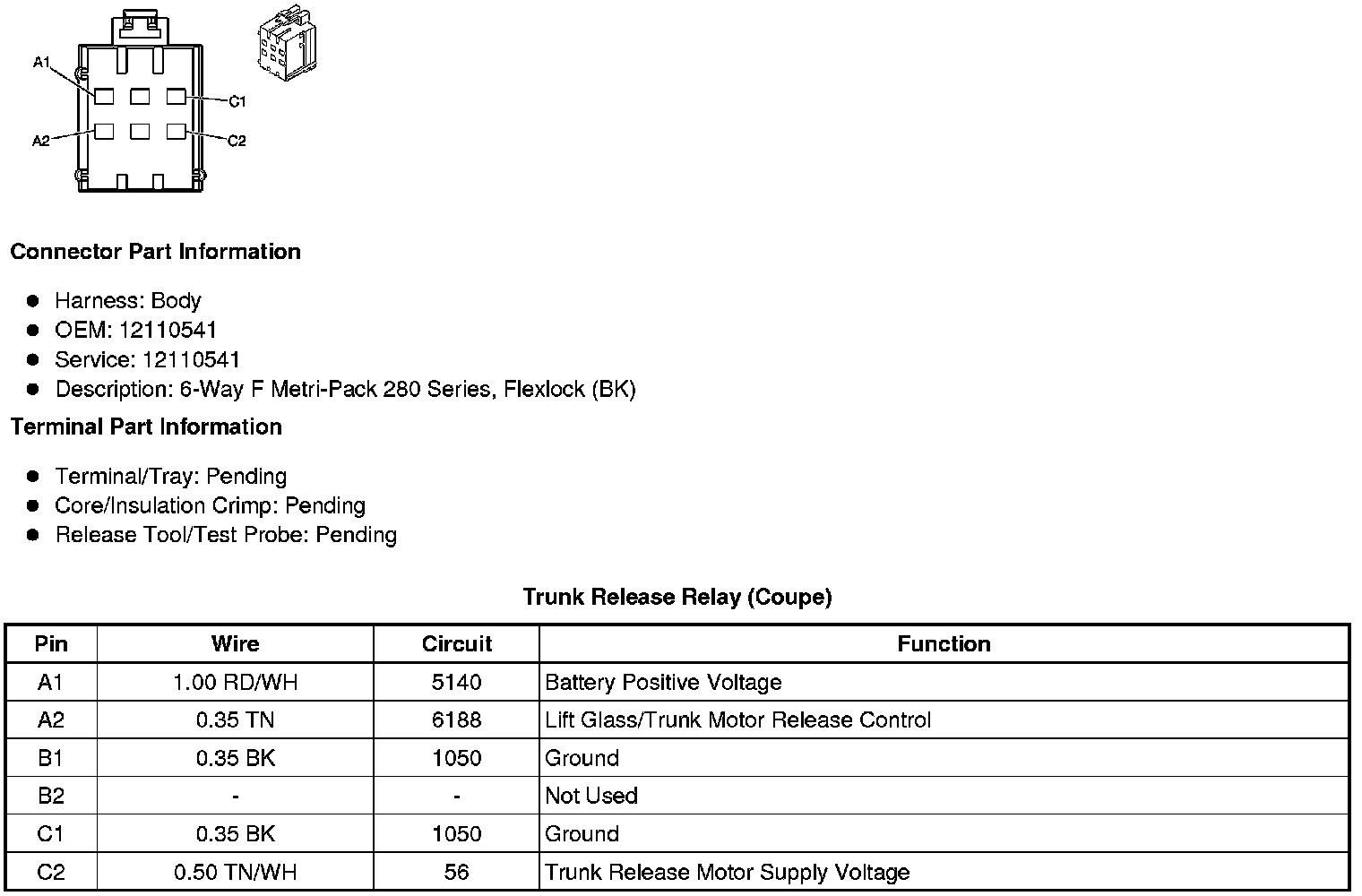

Component Connector End Views
Trunk Release Relay (Coupe)
