Trunk / Liftgate Motor
Trunk / Liftgate Motor

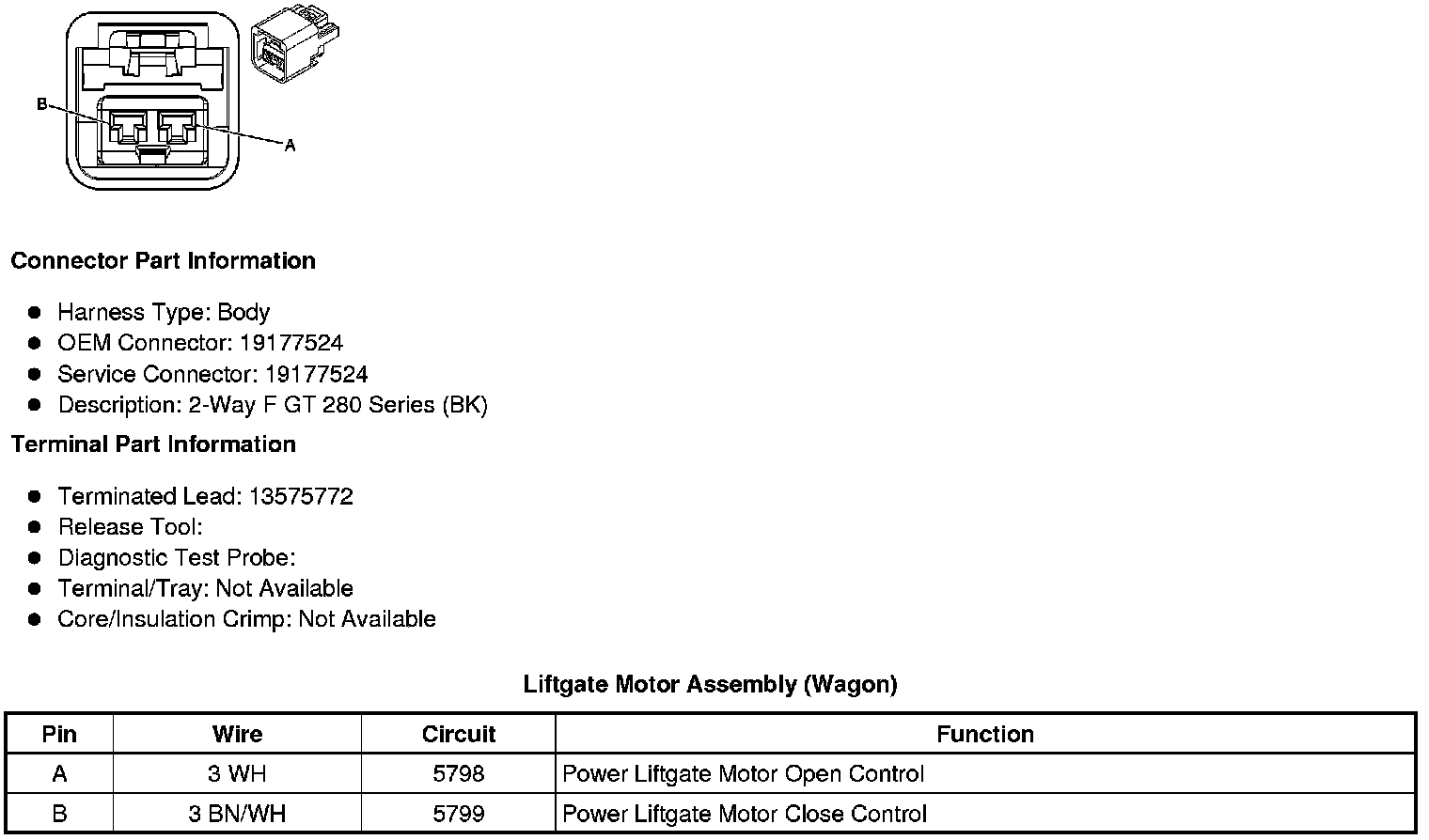

Component Connector End Views
Liftgate Motor Assembly (Wagon)
