Heated Steering Wheel Control Module X1 (KB6 with N30)

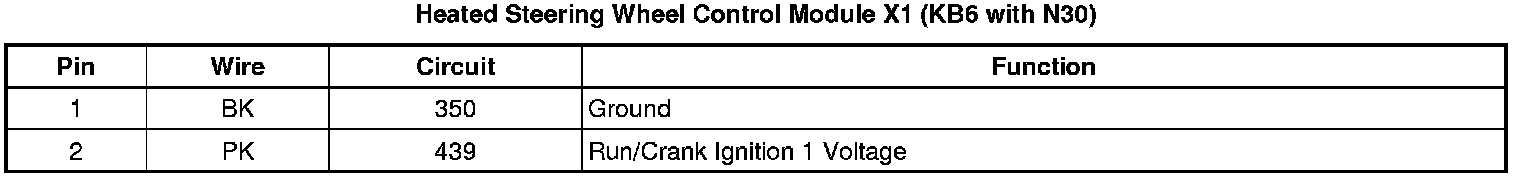

Heated Steering Wheel Control Module X1 (KB6 with N30)
Component Connector End Views
Heated Steering Wheel
Control Module
X1 (KB6 with N30)
