Cadillac
>>
2012
>>
CTS Sedan AWD V6-3.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Rear Vision Camera
Rear Vision Camera

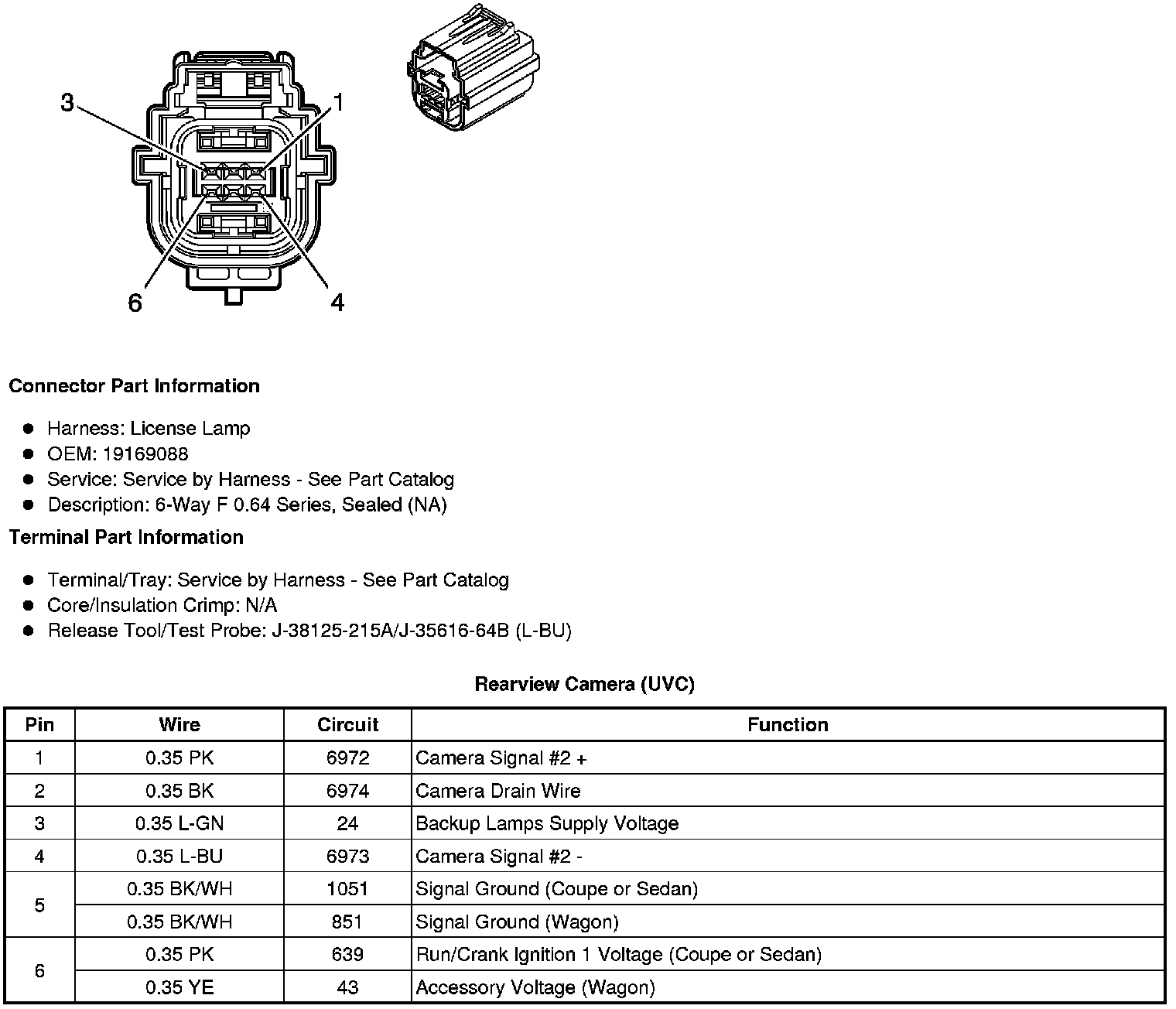

Component Connector End Views
Rearview Camera (UVC)
