Power Steering Pressure Control Valve

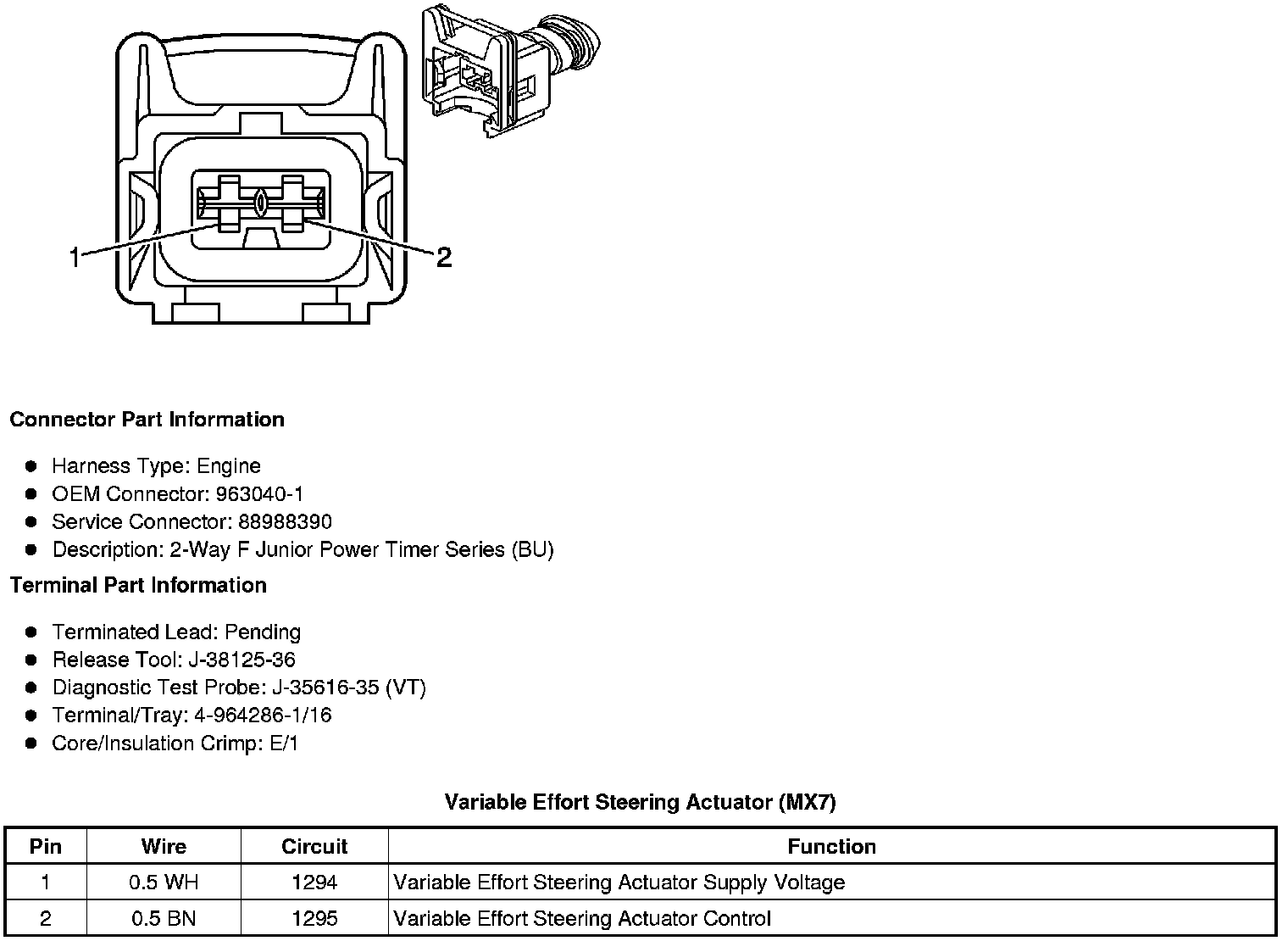

Component Connector End Views

Variable Effort Steering Actuator (MX7)
