Home >> Cadillac >> 2012 >> CTS Sedan AWD V6-3.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Dimmer Switch

Dimmer Switch




Component Connector End Views

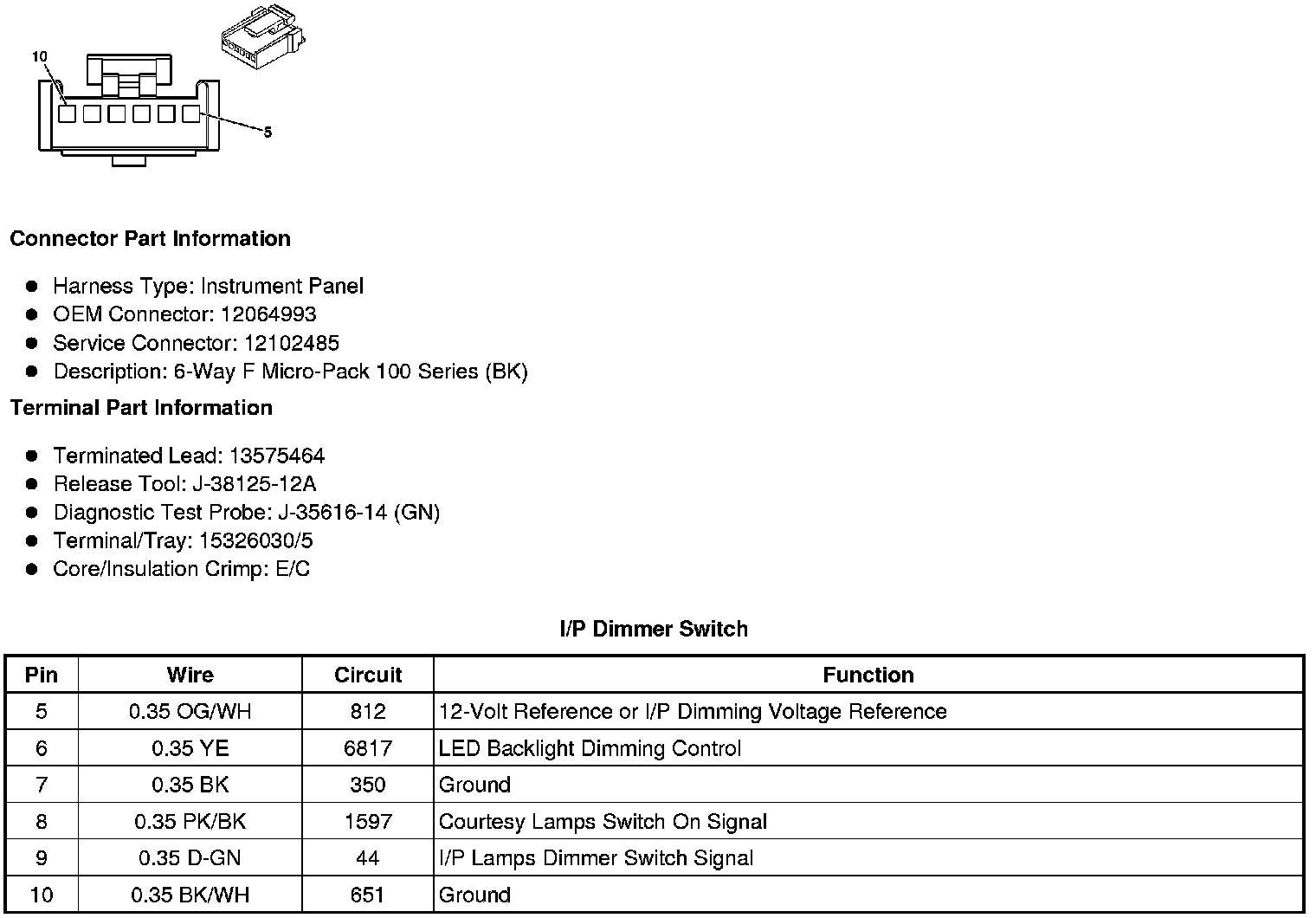

I/P Dimmer Switch
