Ambient Temperature Sensor / Switch HVAC
>>
Sunload Sensor
Sunload Sensor

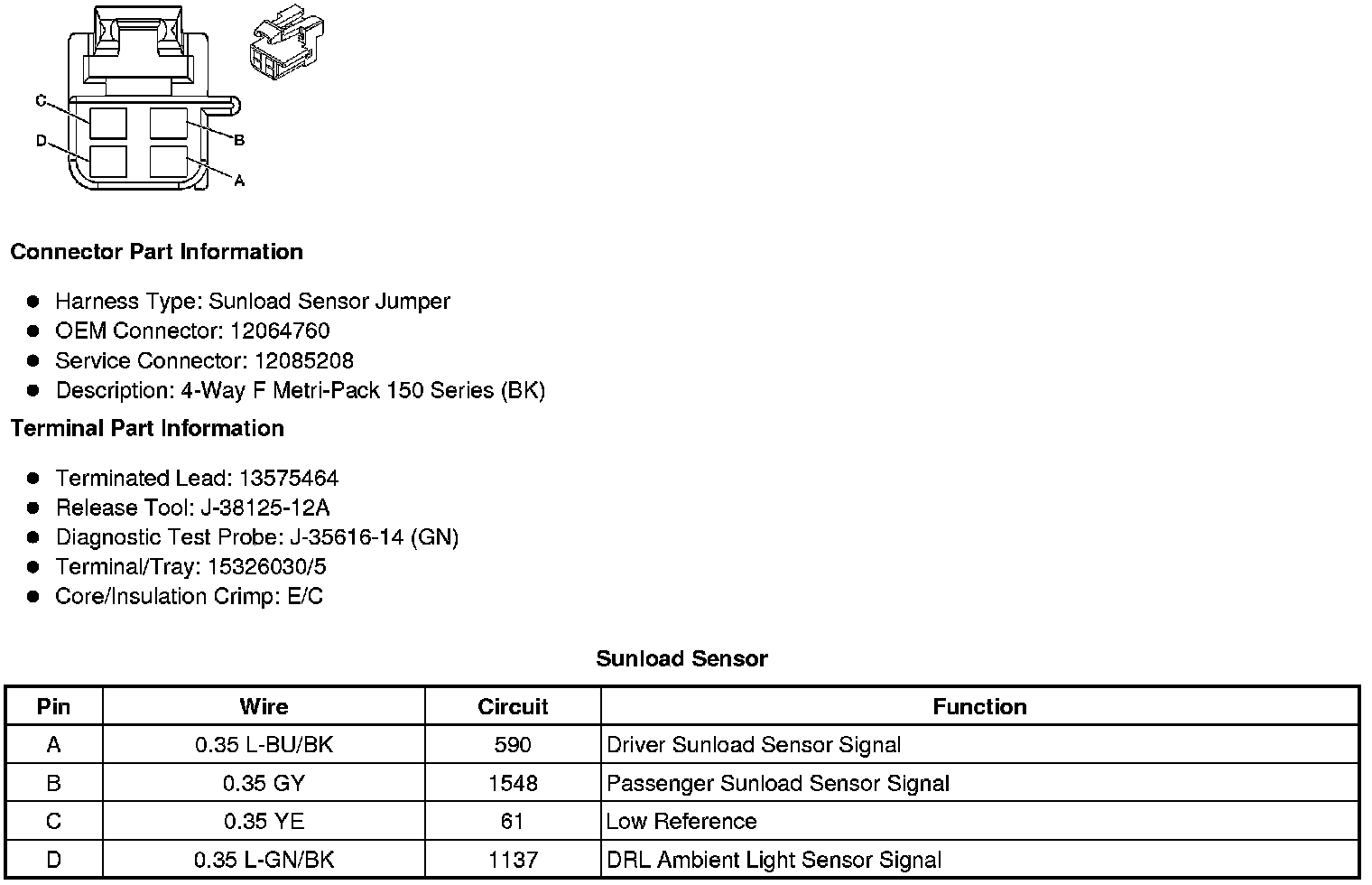

Component Connector End Views
Sunload Sensor
