Home >> Cadillac >> 2012 >> CTS Sedan AWD V6-3.0L >> Repair and Diagnosis >> Windows and Glass >> Windows >> Power Window Switch >> Diagrams

Power Window Switch: Diagrams

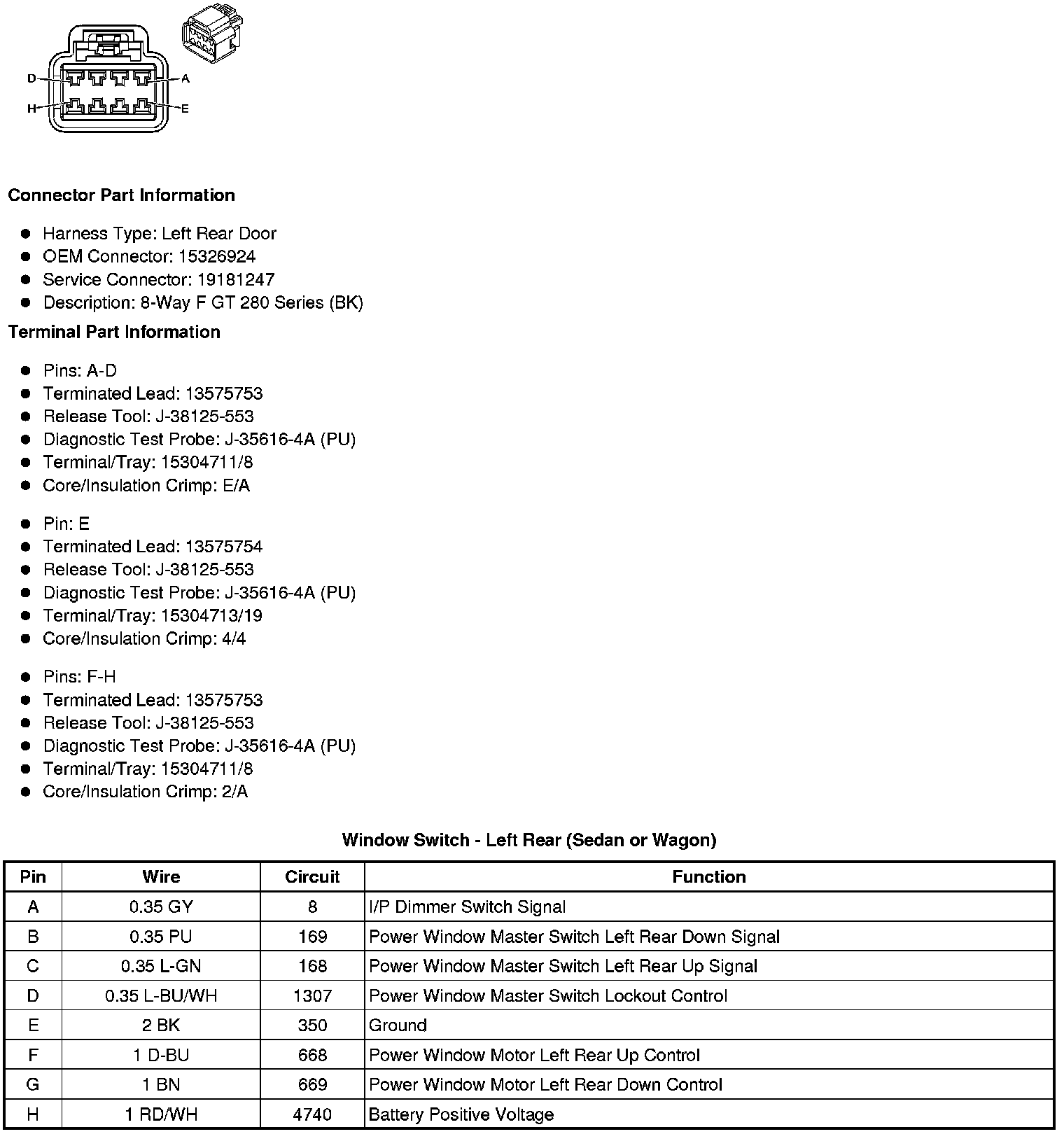

Component Connector End Views

Window Switch - Left Rear (Sedan or Wagon)
