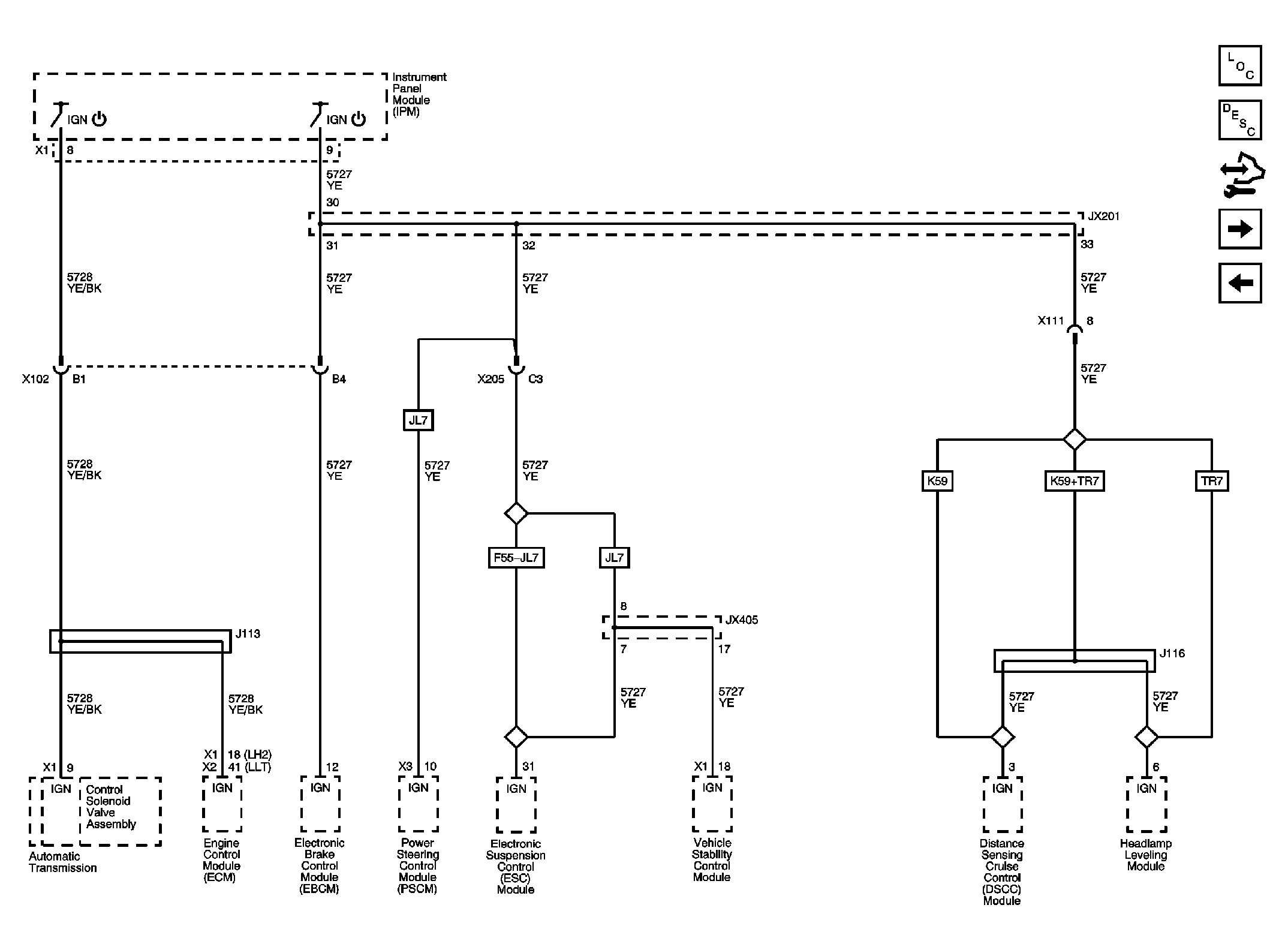

Home >> Cadillac >> 2011 >> STS AWD >> Repair and Diagnosis >> Engine Performance >> System >> Data Communications System >> Wiring Diagrams >> Data Communication Wiring Schematics >> GMLAN- High Speed Serial Data Wake Up
