Steering Control Module: Diagrams
Component Connector End Views

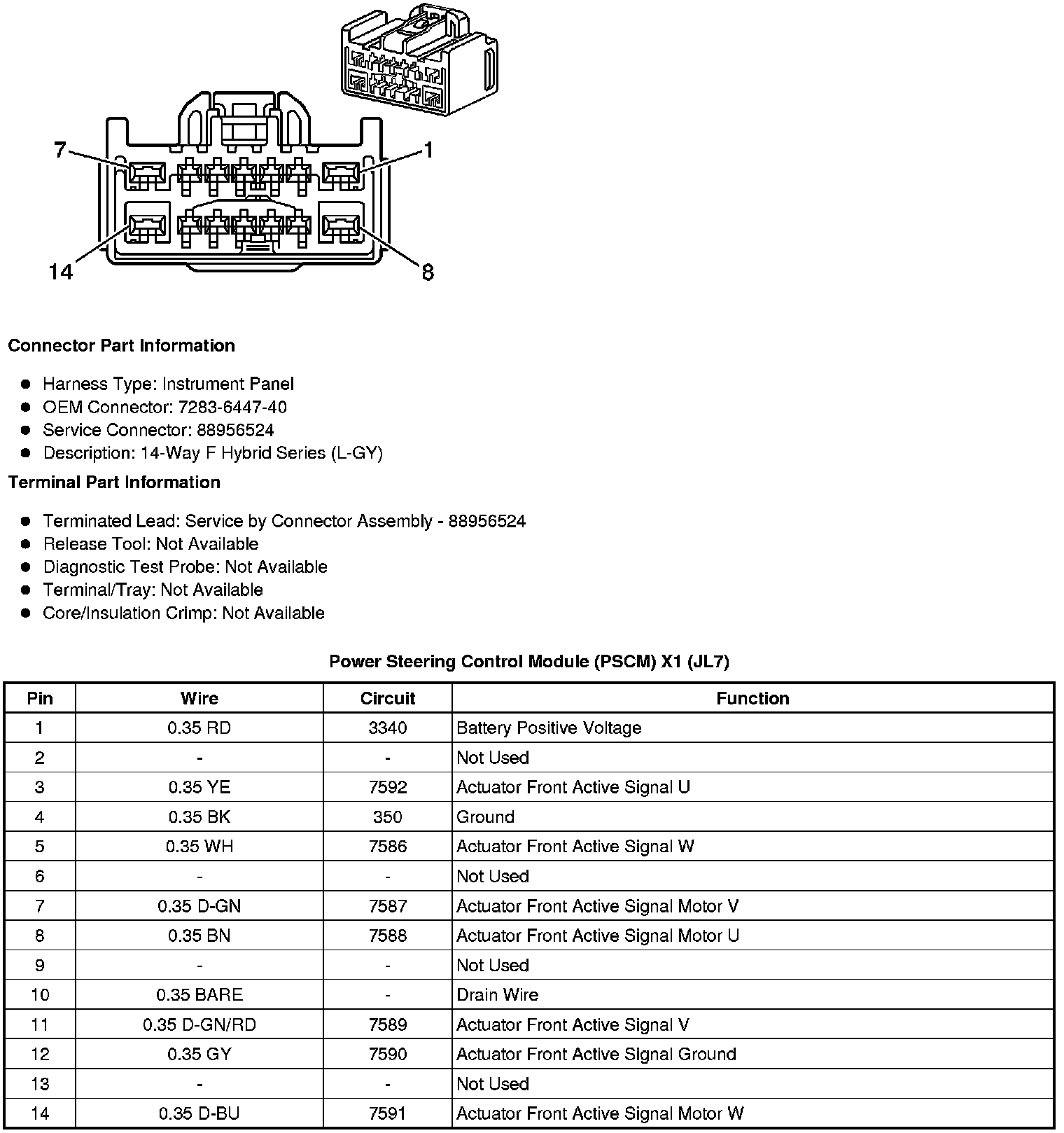

Power Steering Control Module (PSCM) X1 (JL7)

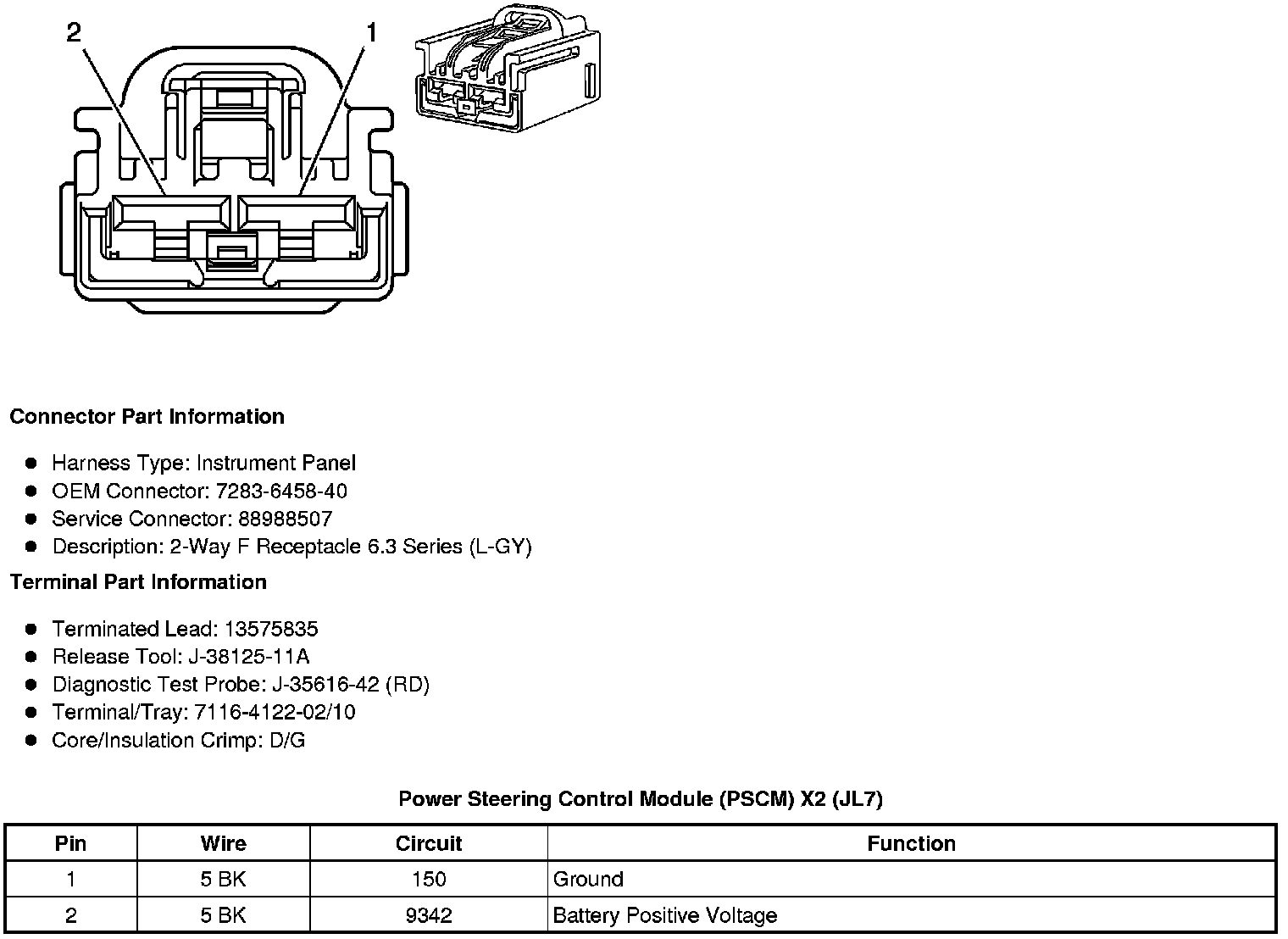

Power Steering Control Module (PSCM) X2 (JL7)

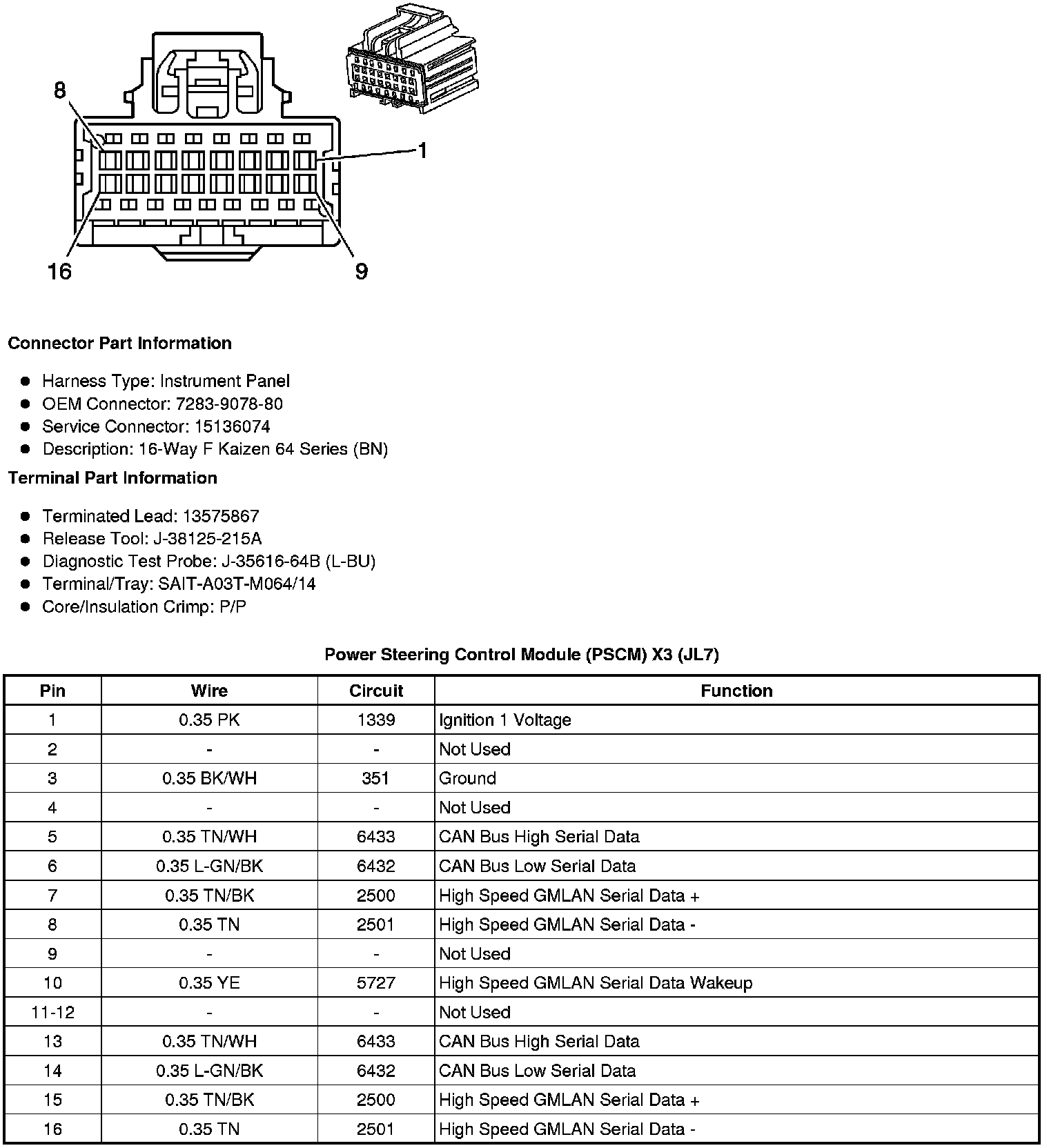

Power Steering Control Module (PSCM) X3 (JL7)
Component Connector End Views
Power Steering Control Module (PSCM) X1 (JL7)
Power Steering Control Module (PSCM) X2 (JL7)
Power Steering Control Module (PSCM) X3 (JL7)
