Seat Temperature Element




Component Connector End Views

Heated Seat Element - Driver Back (KA1)

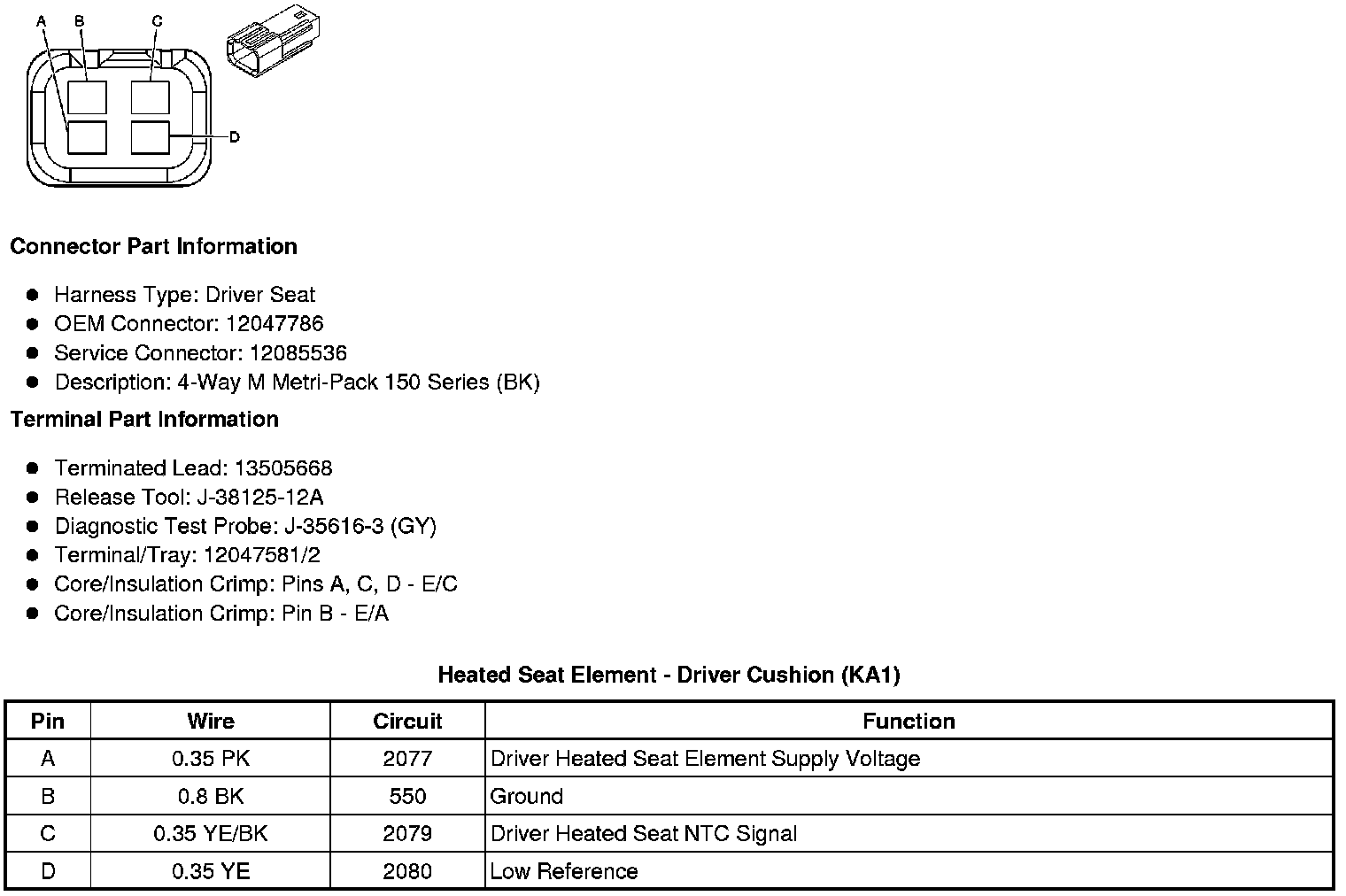

Heated Seat Element - Driver Cushion (KA1)

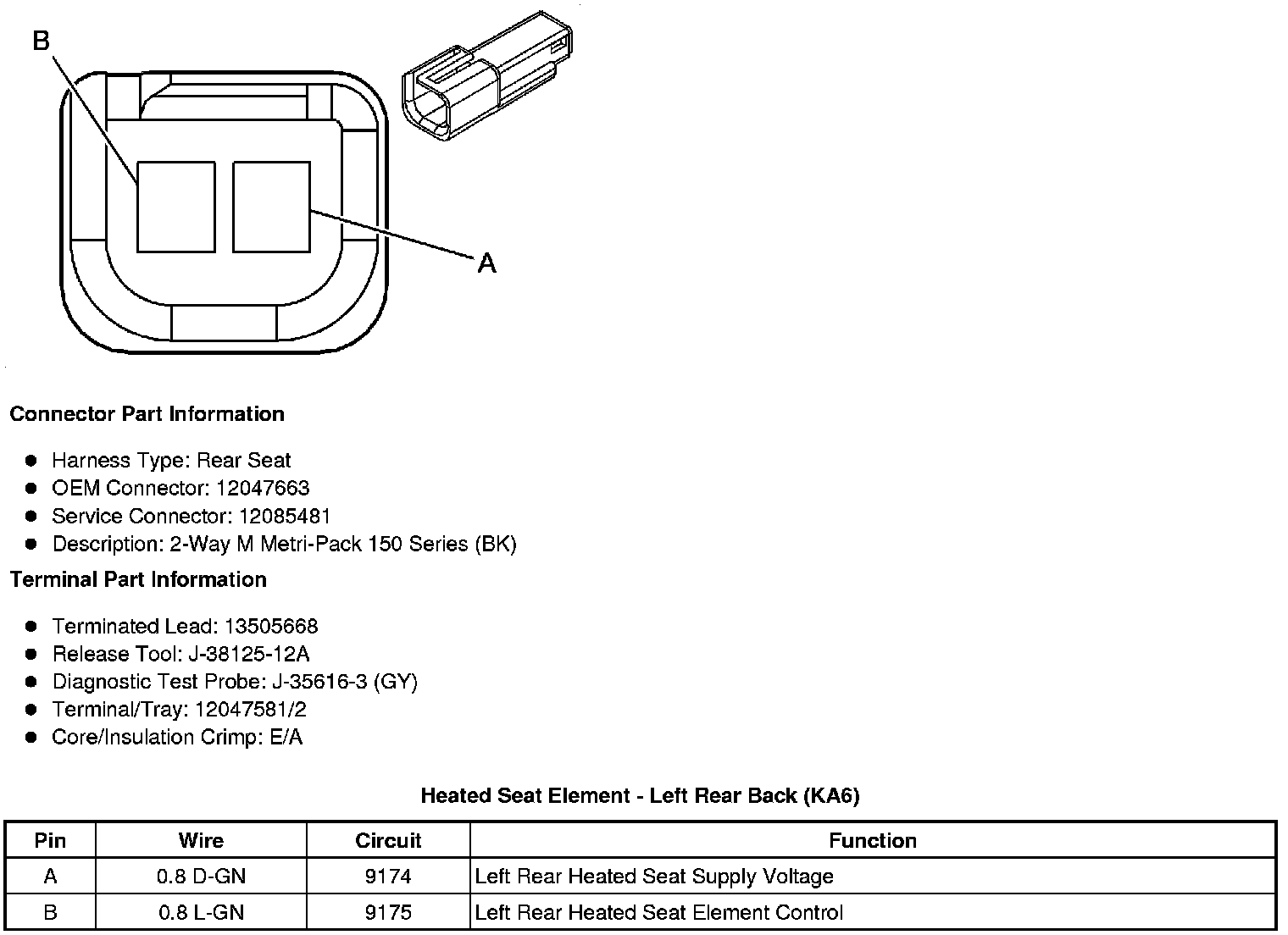

Heated Seat Element - Left Rear Back (KA6)





Heated Seat Element - Left Rear Cushion (KA6)





Heated Seat Element - Passenger Back (KA1)

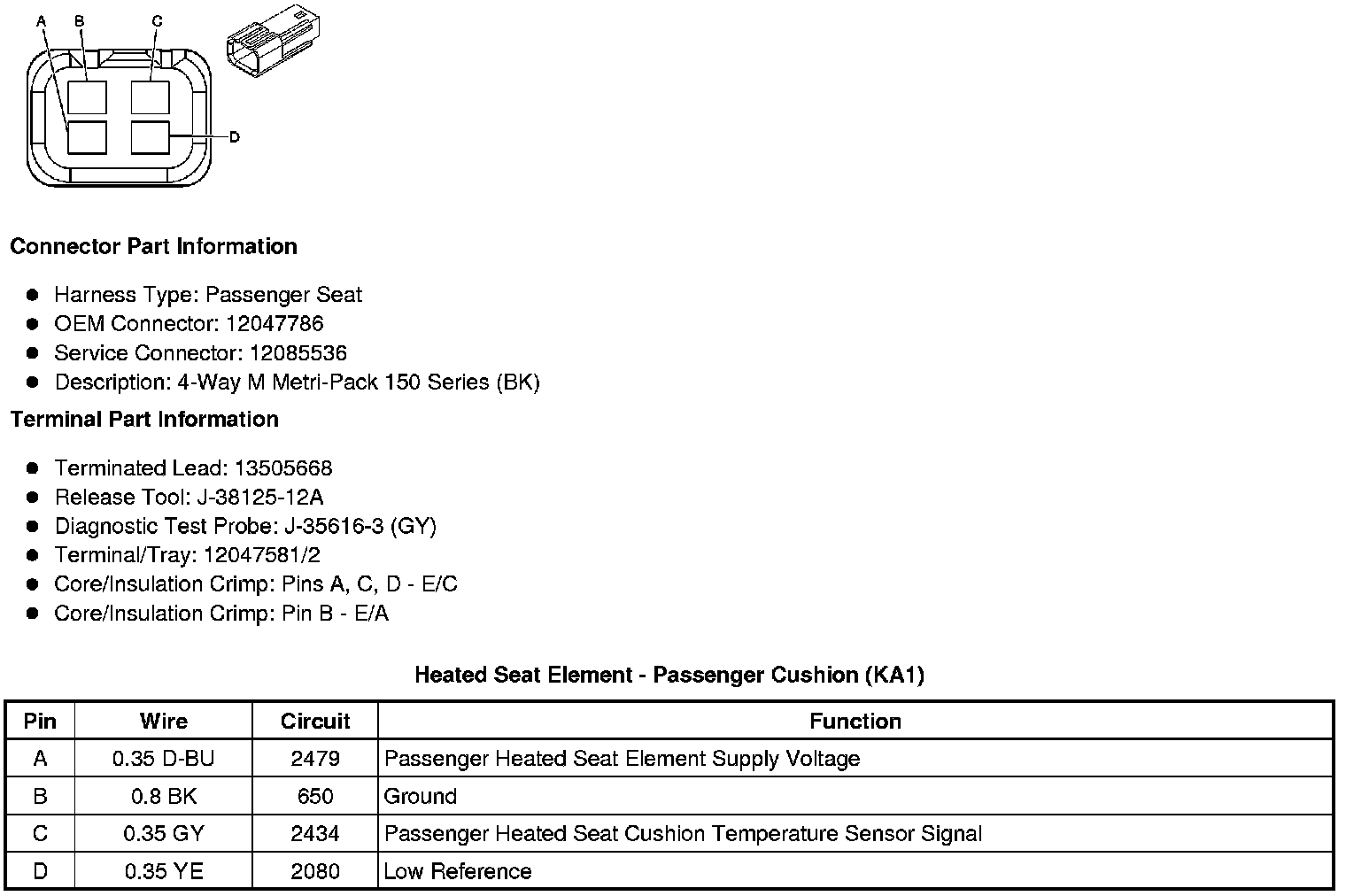

Heated Seat Element - Passenger Cushion (KA1)

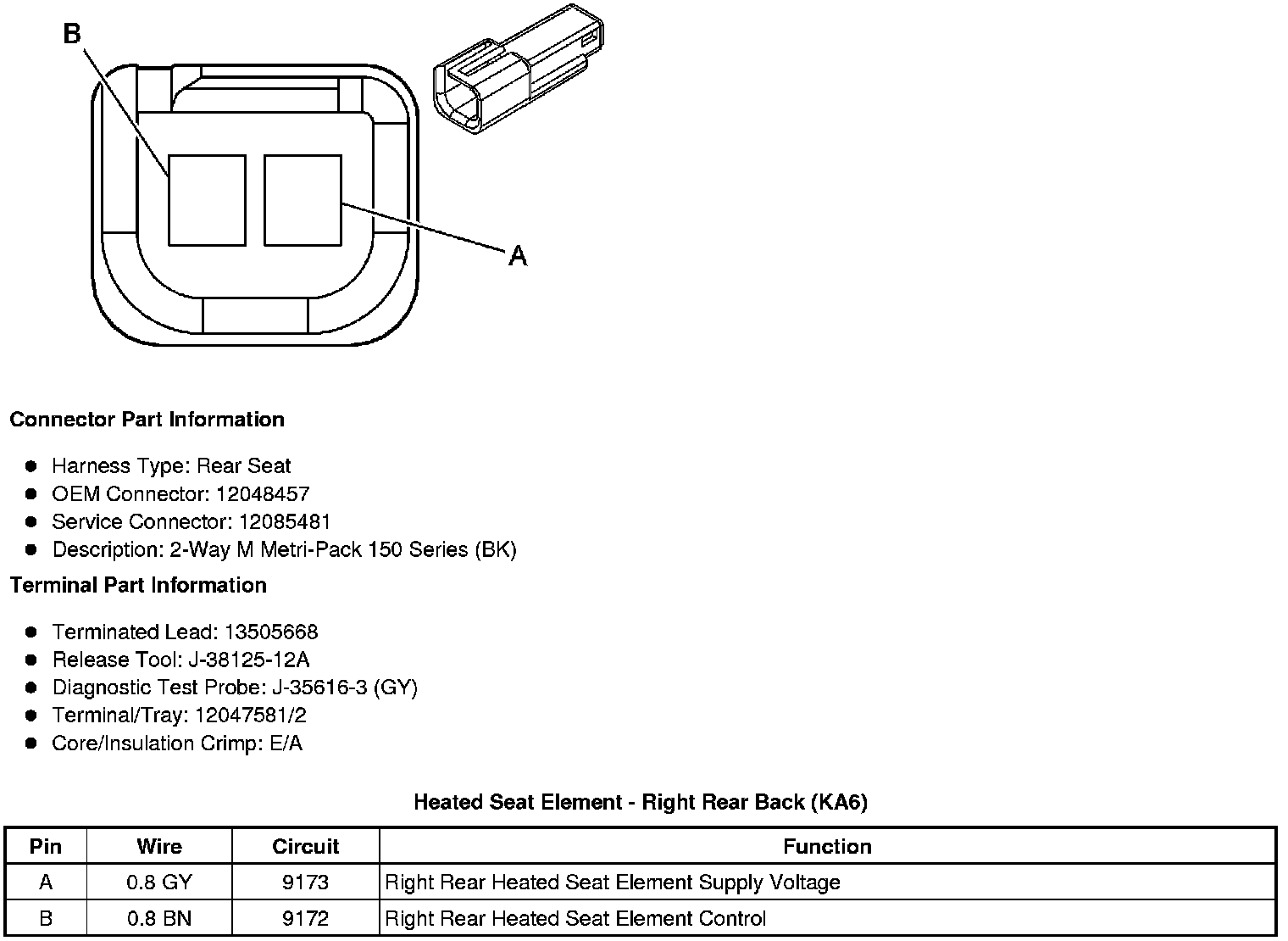

Heated Seat Element - Right Rear Back (KA6)

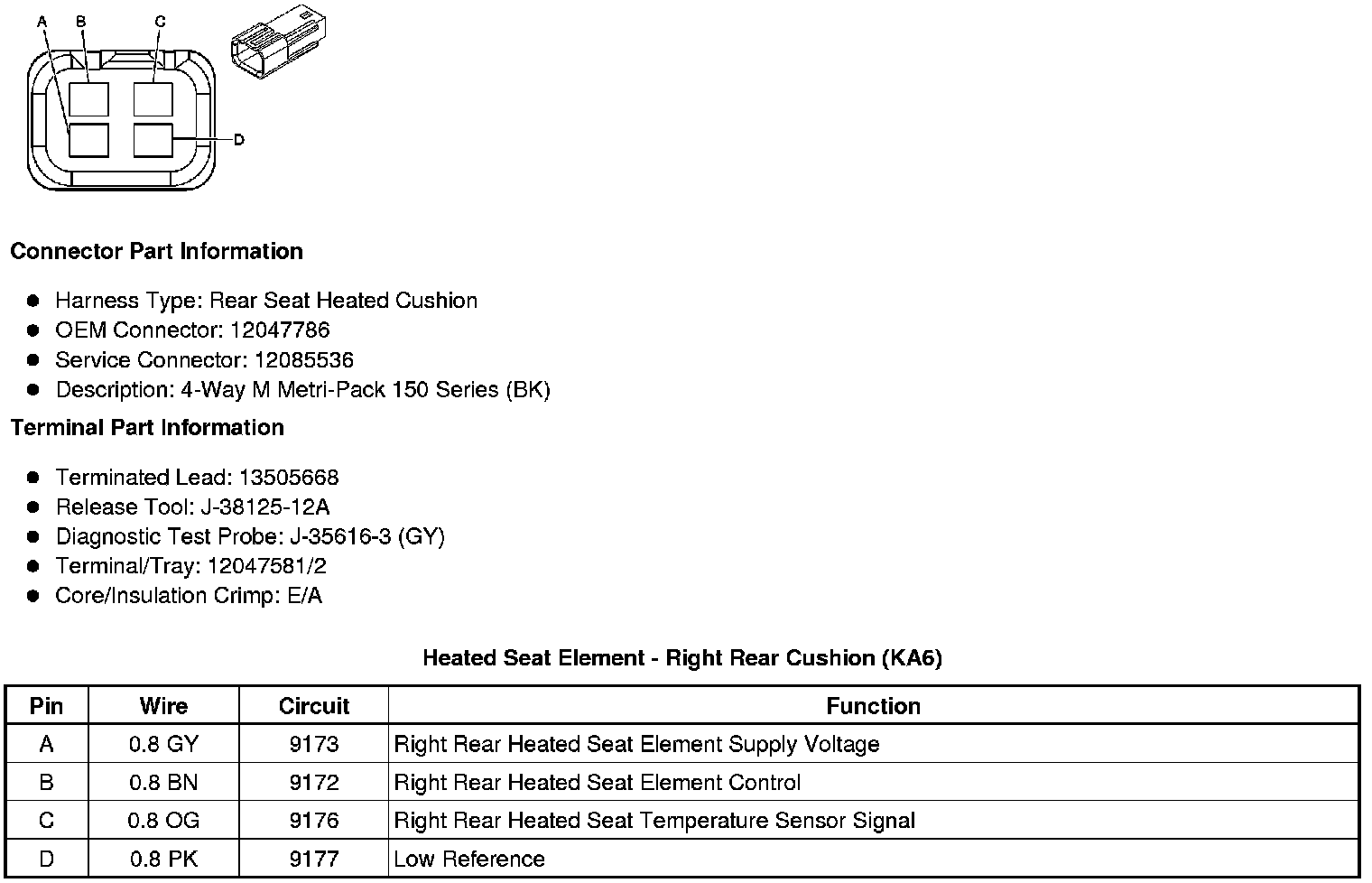

Heated Seat Element - Right Rear Cushion (KA6)
